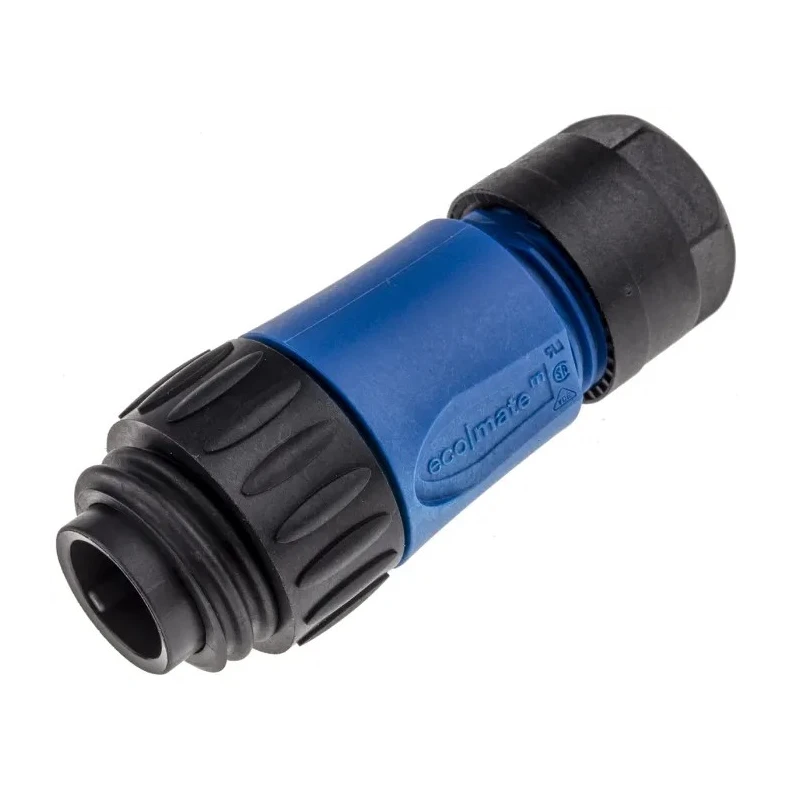

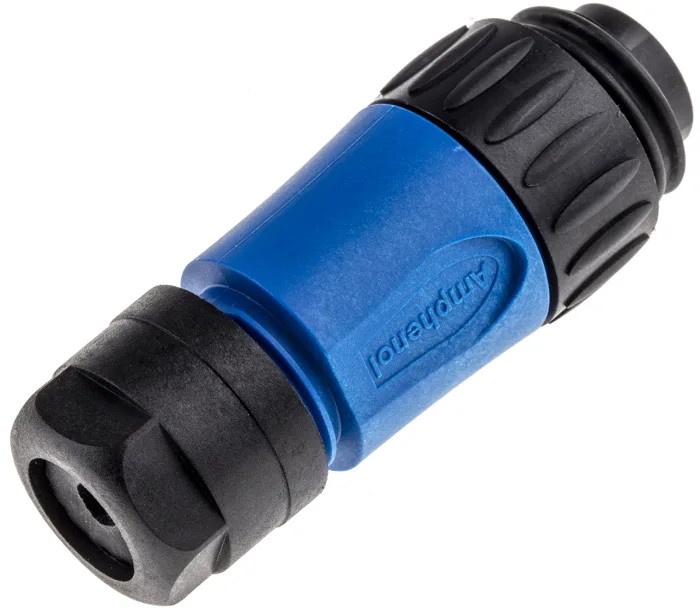

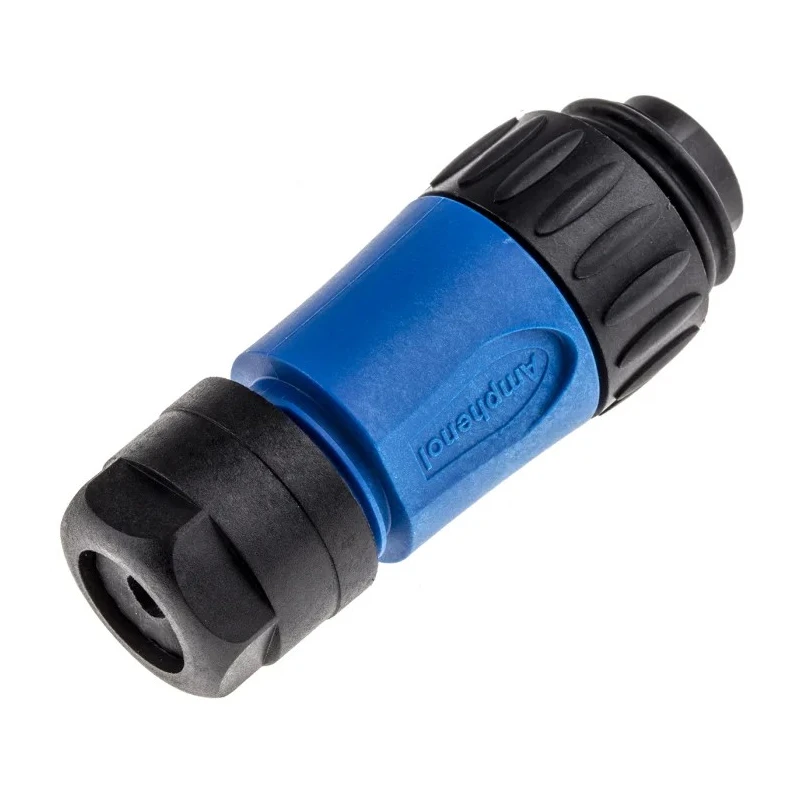

Amphenol Industrial Circular Connector 6 Contacts Cable Standard Plug Male IP67 Ecomate M Series C01610H00601010

Amphenol Industrial C01610H00601010 Circular Connector is a rugged 6-contact cable-mount plug connector from the Ecomate M Series designed to meet demanding industrial standards. The connector features a thermoplastic housing that is ergonomically designed for safe handling and provides robust protection with an IP67 rating in its mated state, making it suitable for harsh industrial environments.

This circular connector is equipped with a screw lock connection for quick and easy assembly, enhancing installation efficiency and reliability. The contact pins are plated with gold and silver to ensure excellent electrical conductivity and corrosion resistance. Rated at 14A current and 250V voltage, it serves well in power supply and control applications.

The operating temperature spans from -40°C to 125°C, allowing the connector to function reliably in extreme temperature conditions. Its bayonet mating type and straight orientation support secure mechanical locking and straightforward cable routing.

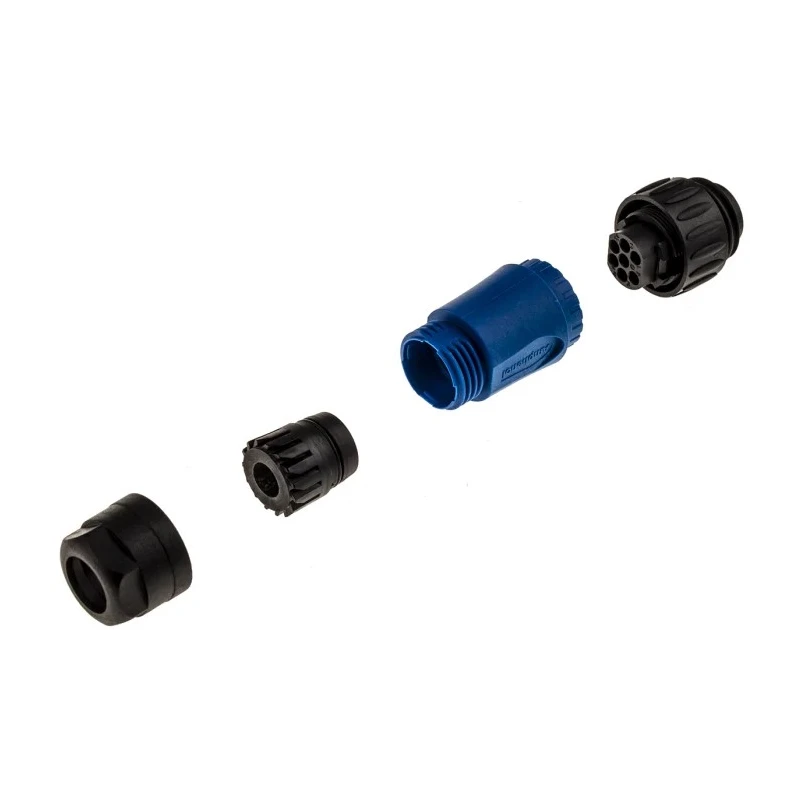

The Eco Mate series connectors include accessories such as strain reliefs, cable glands, clamping rings, and mounted gaskets for added durability and protection. These features make the connector ideal for use in plant construction, machine building, measuring and controlling systems, and power supply technology in industrial and manufacturing sectors.

Screw lock connection for secure assembly and quick installation. Thermoplastic housing offers robustness and ergonomic handling. Gold and silver contact plating for superior conductivity and corrosion resistance. Wide temperature operation range from -40°C to 125°C.

Supports 14A current and 250V voltage with IP67 protection rating. Bayonet mating type with straight orientation for reliable connection. Includes strain relief and cable gland accessories for durability. Compact and rugged design compliant with industrial applications.

Manufactured in the Czech Republic ensuring high-quality standards. Ideal for plant construction, machine building, and control applications.

This product is a specialized Industrial Circular Connector from Amphenol’s Eco Mate M Series offering high reliability in tough environments. It is especially suitable for industrial automation, instrumentation, and power distribution applications requiring robust and easy-to-assemble connectors. Browse EnvMart’s Electronics & Electricals categories for more connectors and industrial connection solutions.
