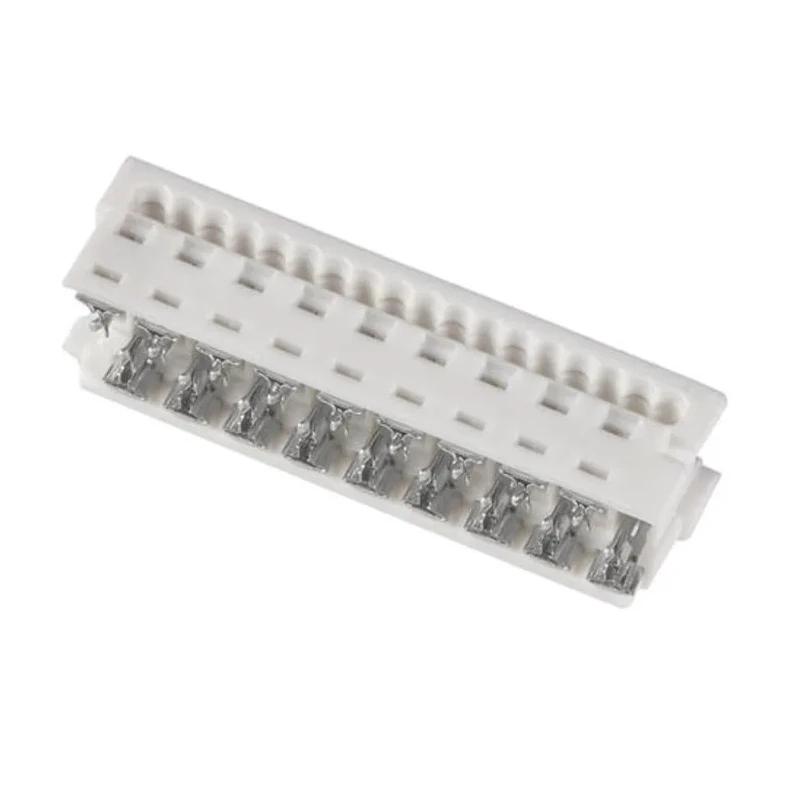

Molex 18-Way Connector Housing Female for Cable, 2 Row, 1.27mm Pitch, 1.2A Current, 250V AC, IDT Termination 90327-0318
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.2A |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Picoflex |
| Termination Type | IDT |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features 18 contacts arranged in two rows with a 1.27mm pitch for precise circuit alignment.
- Supports a current rating of 1.2 amperes and operates at 250V AC voltage.
- Designed with an unshrouded female connector gender and right-angle orientation for efficient cable routing.
- Utilises the insulation displacement termination (IDT) type for secure and easy electrical connections.
- Constructed from polyethylene terephthalate housing and phosphor bronze contacts plated with tin over nickel for durability.
- Operates reliably within a temperature range of -40°C to +105°C, suitable for varied environments.
- Ideal for ribbon cable applications using AWG 26 or 28 wire sizes.
- Compatible with Picoflex series connectors, ensuring seamless integration in compact electronic assemblies.
Product Description
Molex 90327-0318 is an 18-way connector housing female for cable mount applications, organized in two rows with a 1.27mm pitch ensuring precise alignment for ribbon cable systems. Rated for 1.2A current and 250V AC voltage, it provides reliable electrical performance in industrial and electronic component integration contexts.
The connector features an unshrouded female gender design with right-angle orientation allowing effective cable routing in compact and space-constrained assemblies. It employs the IDT (Insulation Displacement Termination) method for secure and efficient cable termination.
Constructed from durable polyethylene terephthalate housing and phosphor bronze contacts plated with tin over nickel, this connector housing withstands operating temperatures ranging from -40°C to +105°C, making it suitable for diverse industrial environments.
This product is part of Molex's Picoflex series, known for compact, reliable wire-to-board connectivity, featuring 18 contacts arranged in two rows. Its compatibility with AWG 26 and 28 wire sizes supports flexible cable choices for automation, automotive, consumer electronics, and other sophisticated electronic device assemblies where space optimization is critical.
18 contacts organized in 2 rows with 1.27mm pitch. Rated for 1.2A current and 250V AC voltage operation. Unshrouded female connector with right-angle orientation. IDT termination type for easy cable mounting. Housing material: polyethylene terephthalate; contact material: phosphor bronze plated with tin over nickel.
Operational temperature: -40°C to +105°C. Compatible with Picoflex series connectors. Suitable for ribbon cables up to AWG 26 or 28 wire size.
This Connector Housing is widely used in electronic assemblies, manufacturing, automation systems, and other applications demanding dependable, compact cable connections. Its robust materials and design ensure secure electrical bonding and durability under varying environmental conditions.
Explore the Electronics Components category at EnvMart for more advanced connectors and housing solutions designed to meet rigorous industrial standards and application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1.2 amperes.
It operates at a voltage of 250V AC.
This connector housing operates reliably within a temperature range of -40°C to +105°C.
It features 18 contacts arranged in two rows.
It utilizes insulation displacement termination (IDT) for secure and easy electrical connections.
The housing is made from polyethylene terephthalate, and the contacts are phosphor bronze plated with tin over nickel.
The contacts are arranged with a pitch of 1.27mm.
It features a right-angle orientation for efficient cable routing.
Yes, it is compatible with the Picoflex series connectors.
It is suitable for ribbon cables using AWG 26 or 28 wire sizes.
The country of origin for this product is India.
The connector features an unshrouded female gender design.
