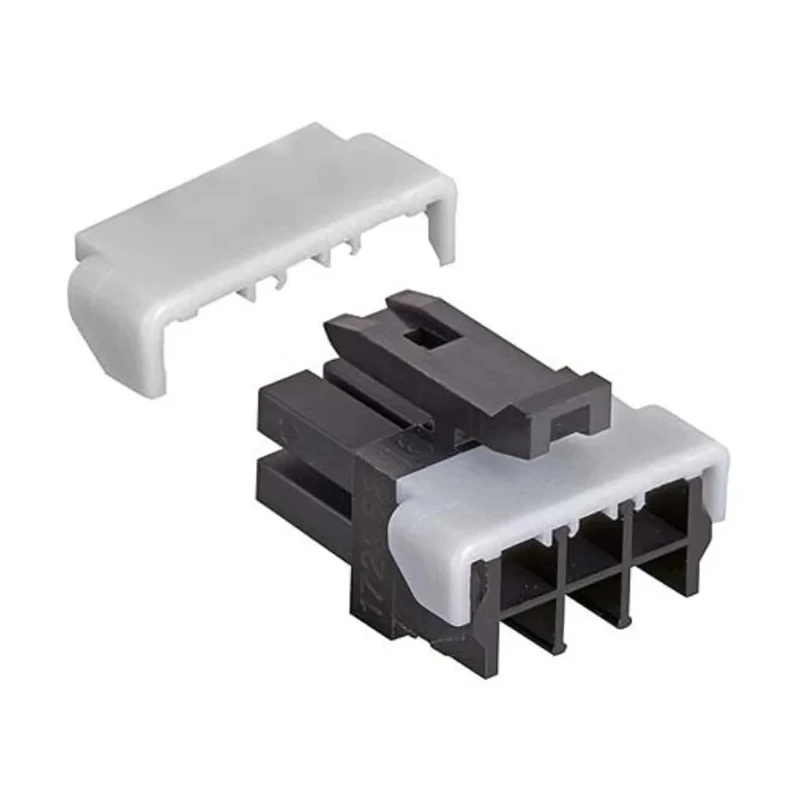

Molex Micro-Fit TPA Female Connector Housing 3 mm Pitch 12 Way 2 Row Straight 172952-1201
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 18.85mm |
| Width | 6.86mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro-Fit TPA |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Micro-Fit RMF Reduced Mating Force 46235, Micro-Fit 3.0 FeMale Crimp Terminal 43030 |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Constructed with durable nylon housing material for reliable performance.
- Integrated Terminal Position Assurance (TPA) with secondary lock to prevent terminal backouts.
- Polarized housing design prevents accidental mismating for secure connections.
- Locking latches enhance mating connection security.
- Contacts fully isolated within housing to prevent electrical arcing.
- Compatible with Micro-Fit RMF Reduced Mating Force 46235 and Micro-Fit 3.0 Female Crimp Terminal 43030.
- Ideal for cable mount applications in electronic components and power connectors.
- Manufactured in China to maintain quality standards.
Product Description
Molex 172952-1201 Micro-Fit TPA Female Connector Housing provides a reliable 3 mm pitch, 12 way, 2 row straight connector housing designed for cable mount applications. The housing is constructed of robust nylon material, ensuring electrical insulation and mechanical strength for industrial use.
This connector housing includes an integrated Terminal Position Assurance (TPA) with a secondary lock, significantly reducing the risk of terminal backouts from improper assembly. The design features polarized housings to prevent accidental mismating, ensuring secure and precise connections. Locking latches further enhance the reliability of the mating connection.
The contacts within the housing are fully isolated to prevent arcing, improving the safety and durability of the electrical connections. This connector housing is compatible with Micro-Fit RMF Reduced Mating Force 46235 headers and Micro-Fit 3.0 Female Crimp Terminal 43030, allowing seamless integration into existing systems without additional costs.
Applications for this Molex Micro-Fit Housing include electronic components, power connectors, telecommunications networks, computing hardware such as desktops and servers, automotive wiring harnesses, and commercial vehicle internal devices. Its high-performance TPA design and secure locking features make it suitable for demanding environments in industrial, laboratory, and manufacturing settings.
Constructed with durable nylon housing material providing excellent electrical insulation. One-piece TPA integrated with secondary lock reduces terminal backouts. Polarized housing prevents mismating and ensures proper assembly.
Locking latches secure mating connections for stability under vibration. Contacts fully isolated within housing to prevent electrical arcing and enhance safety. Compatible with Micro-Fit RMF Reduced Mating Force 46235 and Micro-Fit 3.0 Female Crimp Terminal 43030.
Designed for cable mount usage in various electronic and power applications. Manufactured in China to international quality standards.
This product is part of the Molex Micro-Fit TPA Series and is ideal for electronic and electrical systems requiring compact, secure, and reliable female connector housings. Explore more products in the Connector Housing category to find compatible accessories and alternatives on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3 mm.
This model supports 12 contacts.
The orientation of this connector housing is straight.
The housing is constructed from durable nylon material, providing excellent electrical insulation.
It is compatible with Micro-Fit RMF Reduced Mating Force 46235 and Micro-Fit 3.0 Female Crimp Terminal 43030.
The dimensions are 18.85 mm in length and 6.86 mm in width.
This unit is designed for cable mount applications.
Yes, it includes an integrated Terminal Position Assurance (TPA) with a secondary lock to reduce the risk of terminal backouts.
It is suitable for electronic components, power connectors, telecommunications networks, and automotive wiring harnesses, among others.
The housing features locking latches that enhance the security of the mating connection.
It is manufactured in China to maintain quality standards.
This connector housing is part of the Micro-Fit TPA Series.
