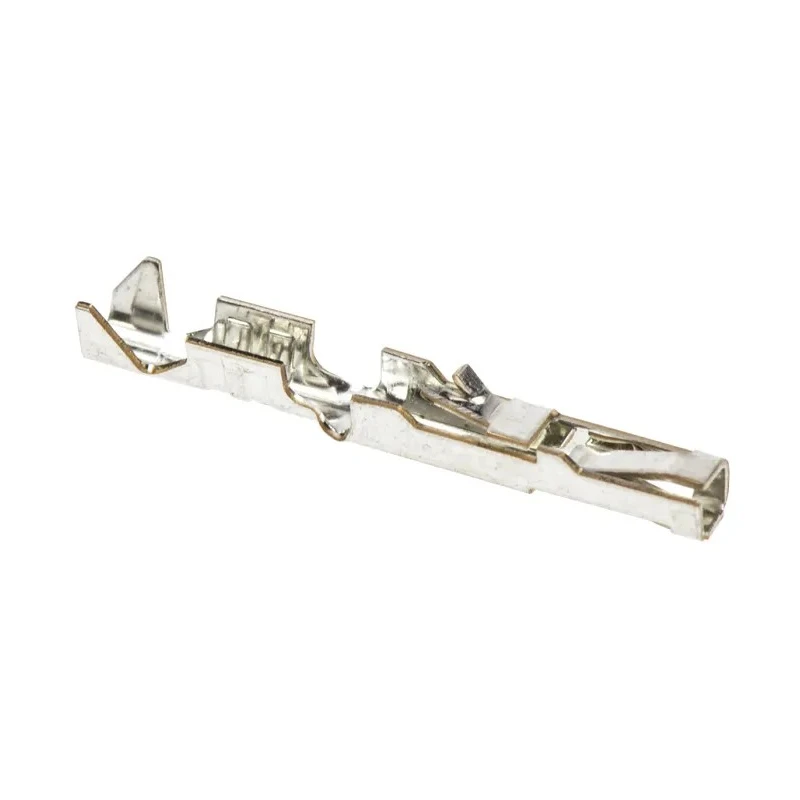

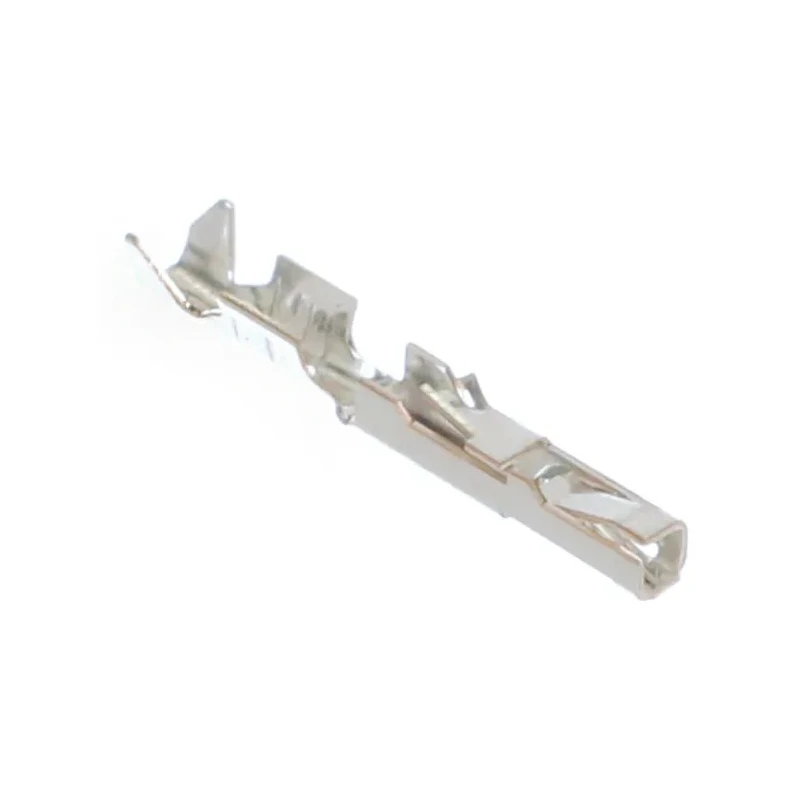

Molex Female Crimp Terminal 24 AWG Min Crimp, 22 AWG Max, Tin Plated Phosphor Bronze Contact 3A Current 105°C 90119-2109

Molex 90119-2109 Female Crimp Terminal is engineered for precision electrical connections within C-Grid III connector housings, accommodating wire gauge sizes from 24 AWG (0.2 mm²) minimum to 22 AWG (0.35 mm²) maximum. Manufactured from high-quality phosphor bronze and tin plating, these terminals ensure superior electrical conductivity and resistance to corrosion.

This crimp terminal supports an electrical current up to 3 amperes and is rated for a maximum voltage of 350 V AC, making it suitable for a variety of electronic component assemblies and power connector applications. The terminal operates reliably within a temperature range of -55°C to 105°C, making it adaptable to harsh industrial environments.

The crimp termination design with selective tin plating ensures a gas-tight, durable, and corrosion-resistant joint without requiring heat application, simplifying assembly and maintenance processes. The lightweight design, approximately 0.073 grams per terminal, reduces mechanical stress on circuit boards.

These female crimp terminals feature a box design and uniform locking system compatible with several C-Grid III crimp housings including series 90156, 90123, 90142, 90143, and 90160. Recommended PCB hole diameter is 1 mm, and insulation headers utilize 15% glass-filled polyester (PBT) material with housings made of polyphenylene oxide for durability.

Ideal for use in automated assembly lines, consumer electronics, commercial vehicles, breweries, and pharmaceutical manufacturing, the terminals provide a reliable electrical and mechanical connection solution. The product is supplied in a pack of 100 units to keep workstations well stocked.

Constructed from tin-plated phosphor bronze ensuring excellent conductivity and corrosion resistance. Rated for 3A maximum current and 350 V AC working voltage for versatile applications. Suitable operating temperature from -55°C to 105°C for industrial resilience.

Compatible with C-Grid III Connector Housings for standardized assembly. Lightweight design minimizes mechanical load on PCB assemblies. Gas-tight crimp technology ensures durable, corrosion-resistant connections. Recommended PCB hole diameter of 1 mm for effective mounting.

Supplied in packs of 100 terminals for economic and convenient usage. Explore the wide range of Molex connectors and crimp terminals on EnvMart for reliable, high-performance electronic assembly solutions.
