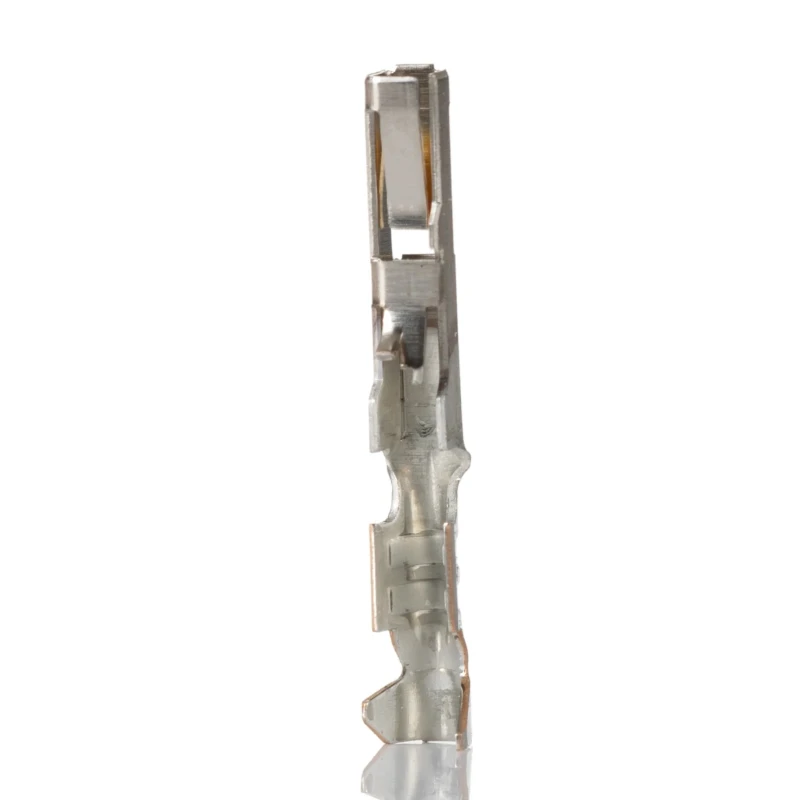

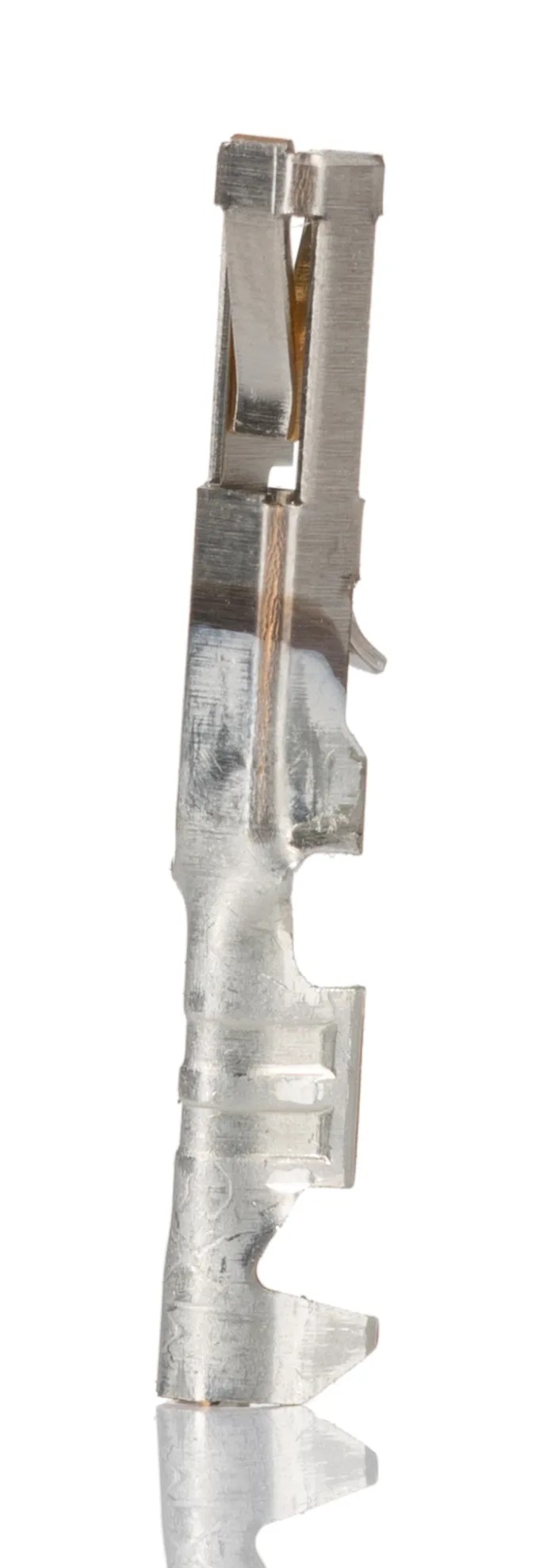

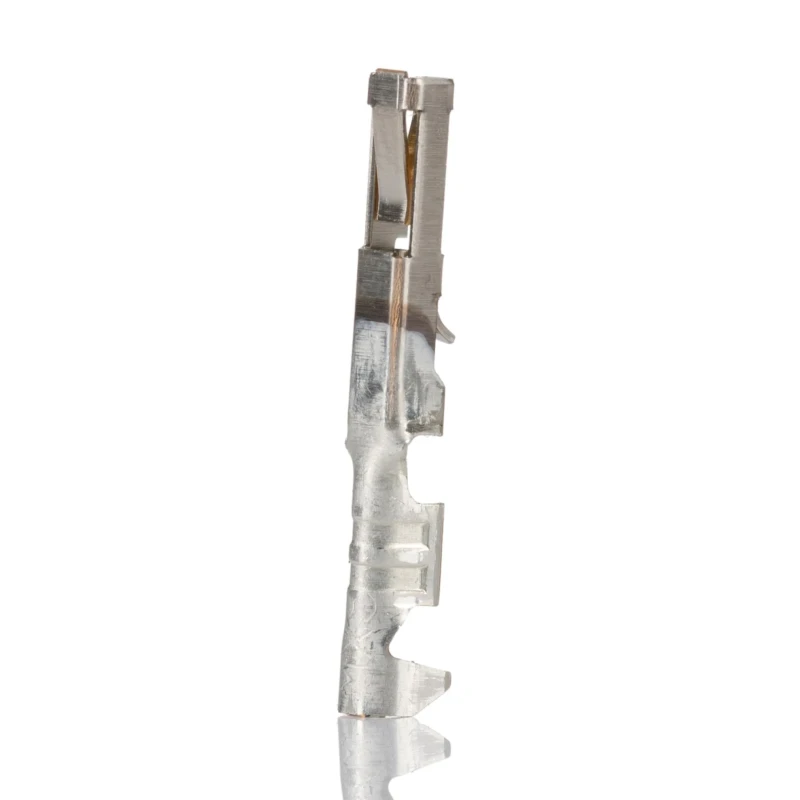

Molex Female Crimp Terminal 3A Current Gold Contact Plating Phosphor Bronze 24 AWG Min, 22 AWG Max 90119-2111

Molex 90119-2111 Female Crimp Terminal is engineered for precise and reliable electrical connections, featuring a gold-plated phosphor bronze contact designed to support wire sizes ranging from 24 AWG (0.2mm²) minimum to 22 AWG (0.35mm²) maximum. It is specifically intended for use with C-Grid III connector housings, widely used in electronic component applications requiring secure wire-to-board connections.

The crimp termination system employed by this terminal ensures a durable and stable contact, minimizing installation errors and enhancing connection consistency. Gold plating on the contact surface offers superior conductivity and resistance to corrosion, critical for maintaining signal integrity over time in harsh environments.

Rated for a continuous current of 3 amps and operational temperature range from -55°C to 105°C, the terminal accommodates a variety of industrial, electronic, and commercial applications. Its phosphor bronze construction lends both mechanical strength and excellent electrical properties.

The maximum contact resistance of 20 milliohms guarantees low electrical losses, making it suitable for sensitive signal and power transmission. This product is ideal for assembly with hand crimp tools and supports a range of wire insulation diameters, increasing its versatility for different wiring requirements.

Designed for use with C-Grid III connector housings to ensure compatibility. Gold plating enhances conductivity and corrosion resistance for reliable connections. Crimp termination method facilitates quick and secure wire attachment.

Accepts wire cross-section from 0.2mm² to 0.35mm² (24 to 22 AWG). Constructed with durable phosphor bronze contact material for optimal performance. Supports a maximum operating temperature of 105°C and a minimum of -55°C for versatile applications.

Maximum contact resistance is limited to 20 milliohms, ensuring minimal signal loss. Packaged for convenient deployment in electronics assembly environments.

This female crimp terminal from Molex is well-suited for use in industrial electronics manufacturing, telecommunications equipment, automotive wiring harnesses, and various commercial electronic assemblies. The reliable gold-plated phosphor bronze contacts provide long-lasting performance and maintain circuit integrity under demanding conditions.
