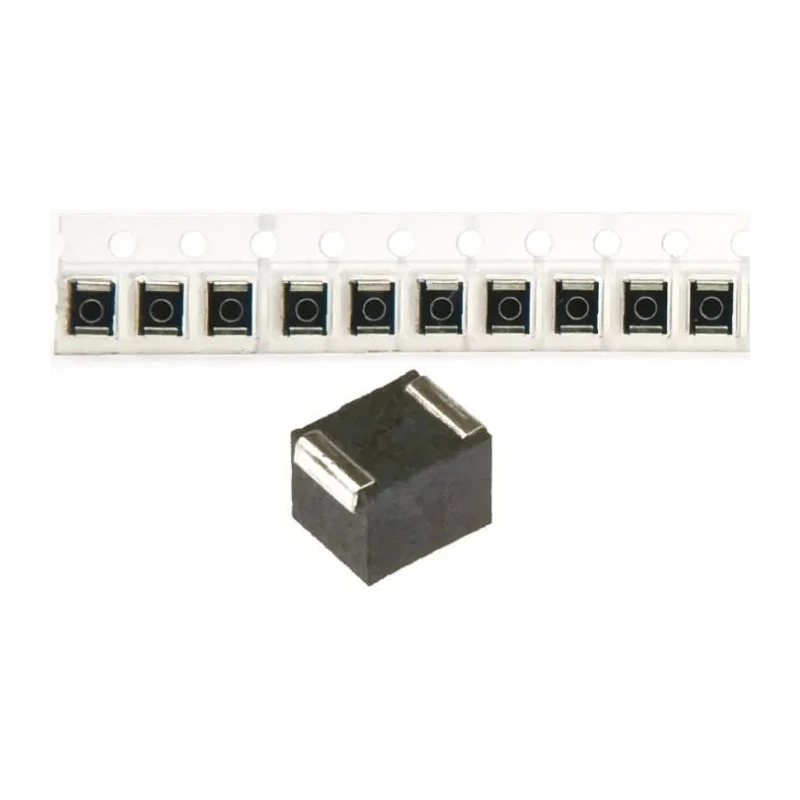

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 5.6 μH ±5% 200 mA Idc Q:30 NLV32T-5R6J-PF

TDK NLV32T-5R6J-PF is a 1210 series shielded wirewound surface mount inductor designed with a ferrite core, offering 5.6 μH inductance with ±5% tolerance. It supports a maximum DC current of 200 mA and operates efficiently across a wide temperature range from -40°C to 105°C. The compact dimensions of 3.2 mm length, 2.2 mm height, and 2.5 mm depth make it suitable for high-density surface mounting in electronic circuits.

The high quality factor (Q) of 30 ensures sharp frequency response for signal line applications, while the shielding reduces electromagnetic interference, enhancing circuit performance. The inductor's maximum DC resistance of 1.6 Ω helps maintain energy efficiency. Constructed with wirewound technology and moulded in heat-resistant thermoplastic resin, the component meets RoHS standards for environmental compliance.

This inductor is widely utilized in various electronic devices including televisions, video recorders, digital cameras, xDSL modems, car audio systems, engine control units (ECUs), and hard disk drives (HDDs). Its robust construction and performance specifications are tailored for demanding industrial and consumer electronic environments.

Ferrite core enhances magnetic performance. Maximum DC current rating of 200 mA supports stable operation. Compact package fits high-density PCB layouts. High quality factor ensures minimal energy loss at operating frequencies.

Wide operating temperature range covers harsh environments. Shielded design minimizes electromagnetic interference. Low DC resistance reduces power dissipation. RoHS compliant for environmental safety. Wirewound construction delivers reliable inductance values.

Applications include consumer electronics and automotive systems. Explore TDK Inductors and other components within the Electronics & Electricals category at EnvMart for advanced electronic design and manufacturing needs.
