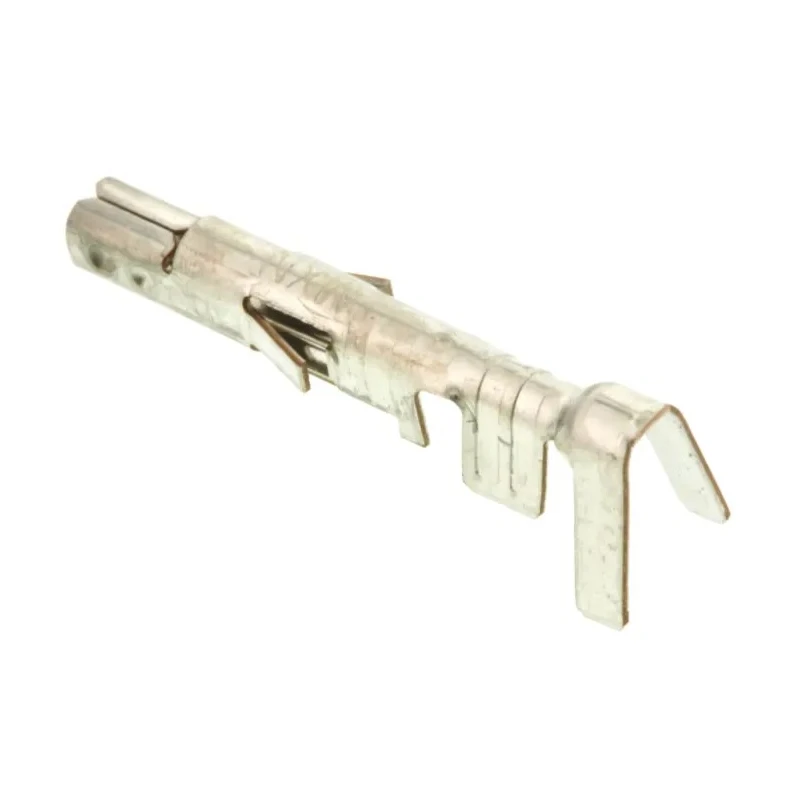

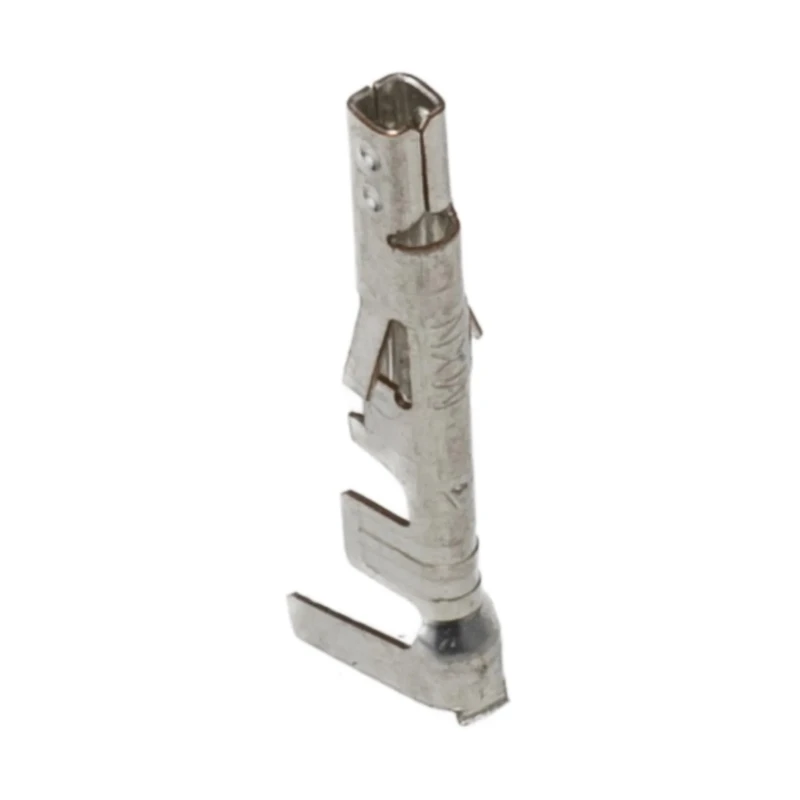

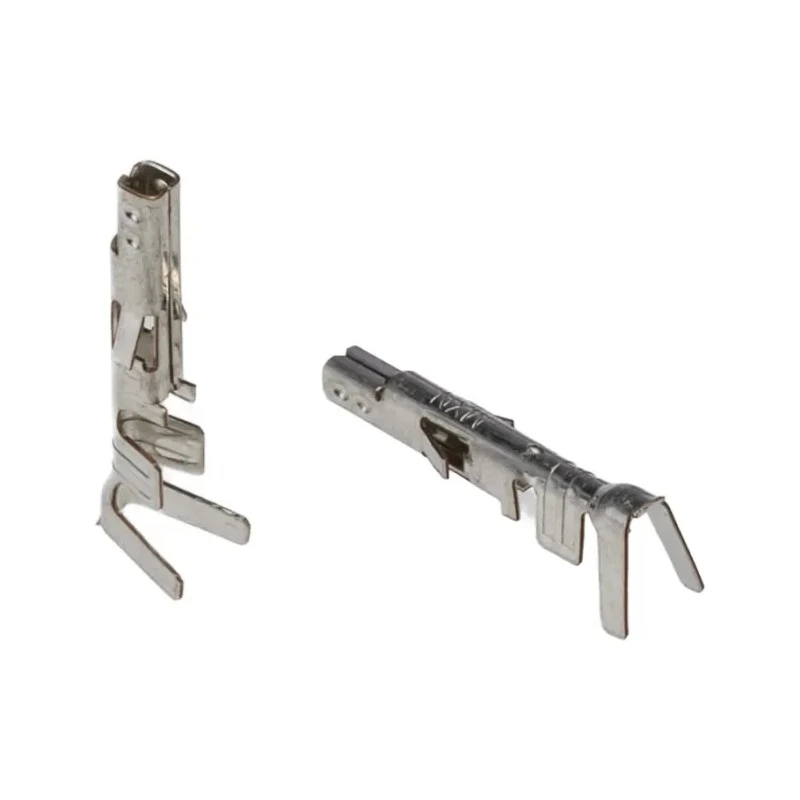

Molex 5556 Series Female Crimp Terminal, 16 AWG Min-Max Wire Size, Tin Plated Phosphor Bronze, 9A, 600V, Crimp 39-00-0080
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5556 Series Female Crimp Terminal, 22 AWG Min Crimp, 16 AWG MaxBrand | Molex |
Key Features
- Constructed from phosphor bronze material ensuring excellent conductivity.
- Features tin plating for superior corrosion resistance.
- Supports a secure crimp termination method for reliable connections.
- Operates effectively between -40°C and 105°C, suitable for varied environments.
- Handles a maximum current of 9.0 amperes and voltage up to 600 volts.
- Designed for up to 30 mating cycles, providing long service life.
- Compatible with Mini-Fit Jr and Mini-Fit BMI dual row receptacle housings.
- Ideal for power distribution and wire-to-board or wire-to-wire connections.
Product Description
Molex 39-00-0080 Female Crimp Terminal is engineered for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, optimized for electrical systems requiring a secure crimp connection. It supports wire sizes from 16 AWG and is designed to handle currents up to 9 amperes with voltage ratings of 600 volts.
The terminal is constructed from high-quality phosphor bronze, providing excellent electrical conductivity and mechanical strength. The tin plating on the contact surface enhances resistance against corrosion, thereby extending the terminal's durability and reliability in various industrial applications.
Specifically designed to support crimp termination, this terminal forms a robust connection that can withstand vibrations and mechanical stresses. It is suitable for automated power distribution, wire-to-board, and wire-to-wire connections in electronic components, power connectors, and PCB connectors.
Operating over a temperature range from -40°C to 105°C, this product performs reliably in diverse environmental conditions, making it ideal for industrial, manufacturing, HVAC, and electrical applications. The terminal ensures a maximum contact resistance of 10 milliohms and supports up to 30 mating cycles, guaranteeing consistent performance over repeated use.
This Molex 5556 series terminal is produced in the United States following high manufacturing standards, ensuring quality and consistency. Compatible with Mini-Fit Jr and Mini-Fit BMI dual row receptacle housings, it is an excellent choice for professionals seeking reliable and durable Crimp Contacts.
Constructed from phosphor bronze for excellent conductivity. Tin plating enhances corrosion resistance. Crimp termination method ensures secure and resilient connections. Supports wire sizes of 16 AWG minimum and maximum.
Maximum current rating of 9 amperes and voltage of 600 volts. Operates from -40°C up to 105°C ambient temperature. Designed for up to 30 mating cycles. Ideal for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Explore more Molex connectors and accessories on EnvMart for your electronic and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a maximum current rating of 9 amperes and can handle voltages up to 600 volts.
It supports wire sizes from 16 AWG, with a maximum wire size of 1.3 mm².
The terminal is constructed from phosphor bronze, and features tin plating for enhanced corrosion resistance.
It operates effectively between -40°C and 105°C, making it suitable for various environmental conditions.
This terminal is designed for up to 30 mating cycles, ensuring consistent performance over repeated use.
It is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
This terminal uses a crimp termination method, which provides a secure and resilient connection.
The maximum contact resistance is rated at 10 milliohms.
It is produced in the United States, adhering to high manufacturing standards.
It is ideal for power distribution and wire-to-board or wire-to-wire connections in various electronic components.
This terminal belongs to the Molex 5556 series.
This terminal is designed as a female crimp terminal.
