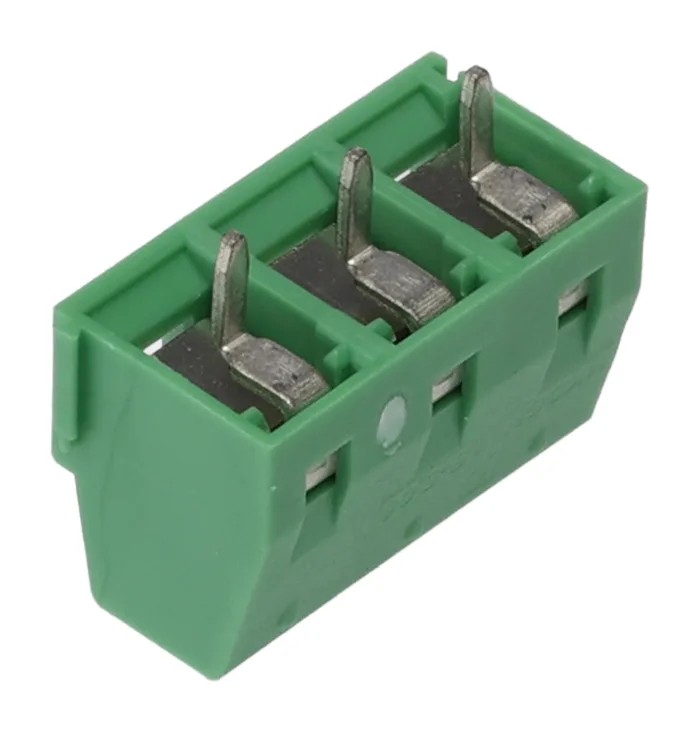

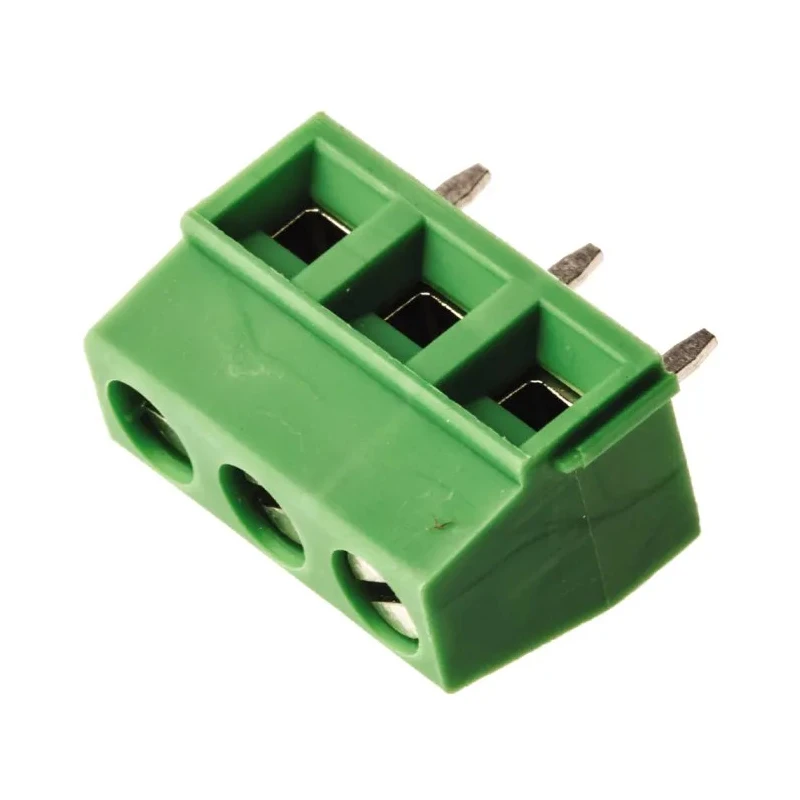

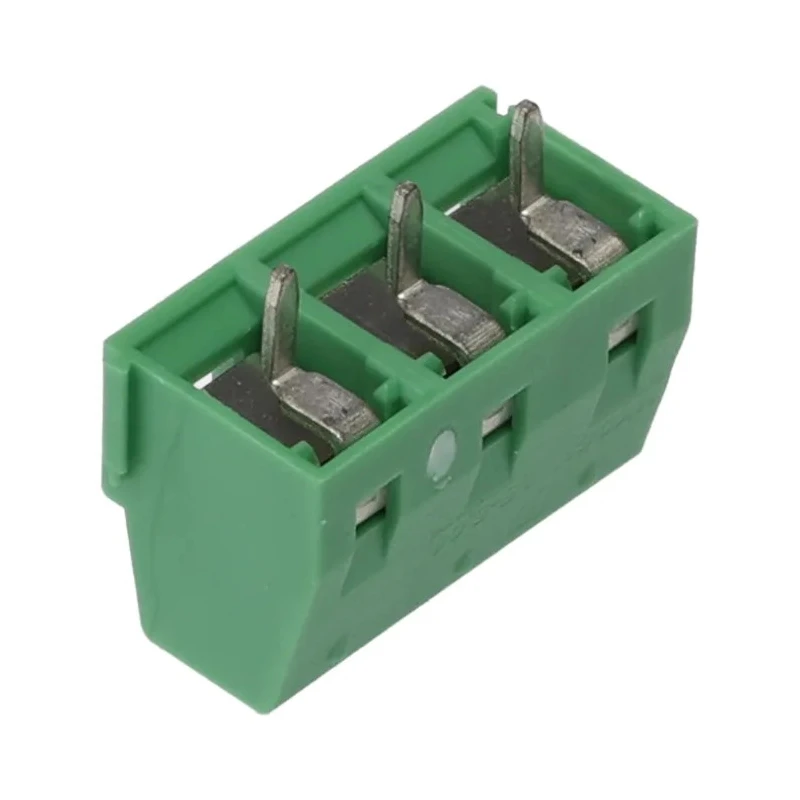

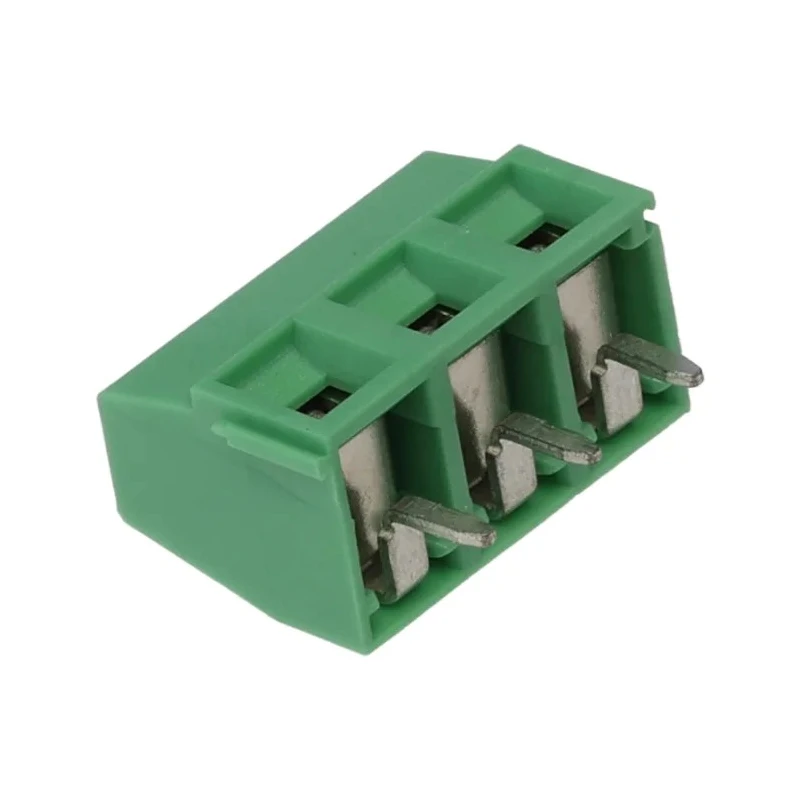

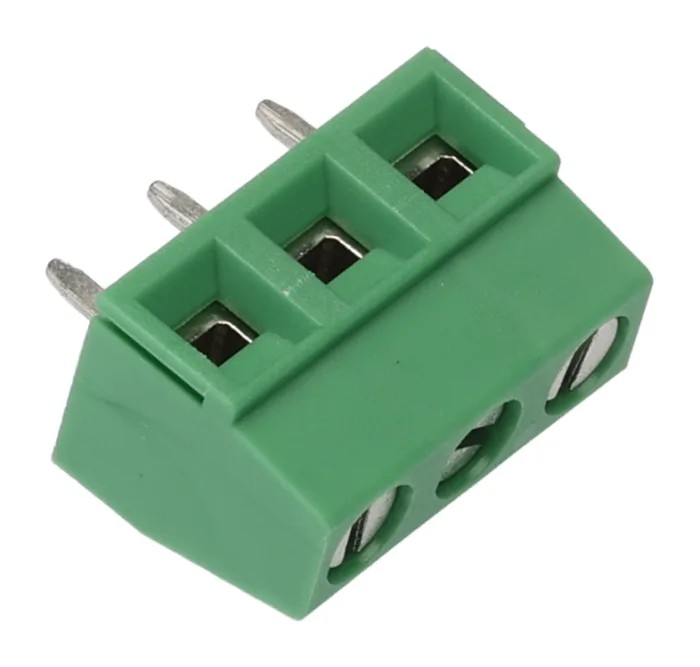

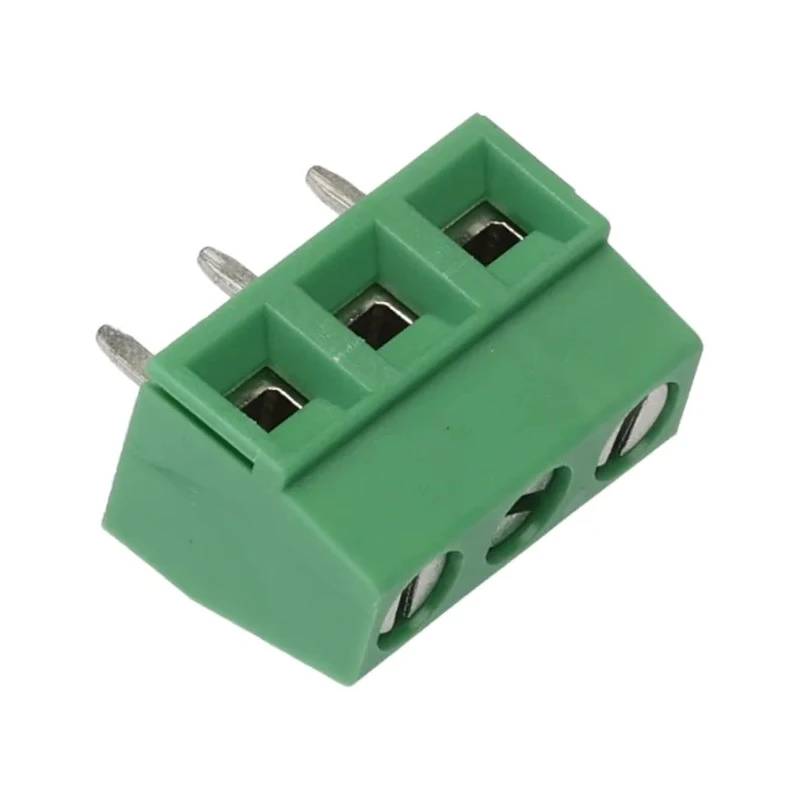

Phoenix Contact MKDSN 1.5/3-5.08 Series PCB Terminal Block, 3 Contacts, 5.08 mm Pitch, 13.5A, Straight Wave 1729131

Phoenix Contact presents the MKDSN 1.5/3-5.08 Series PCB Terminal Block, model 1729131, engineered for robust board-mounted connections in electronic assemblies. With its straight wave soldering mount design, the terminal block accommodates three conductors, making it an ideal solution for both power and signal distribution on printed circuit boards.

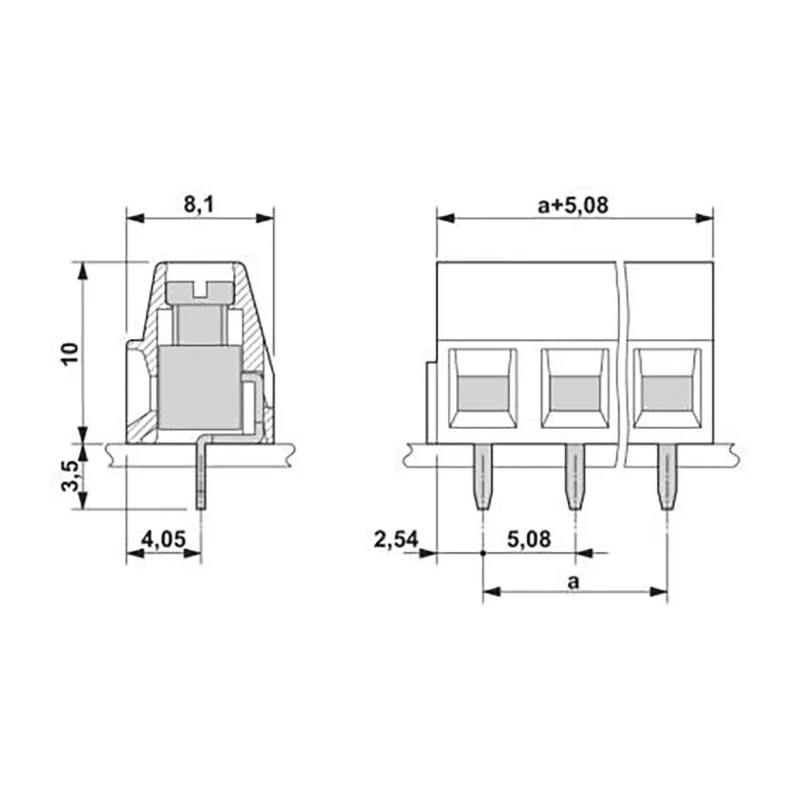

The terminal block features a 5.08 mm pitch, which is optimized for integration with densely populated circuit boards, ensuring efficient space usage. The tin-plated copper alloy contacts are built to deliver high conductivity and reduce potential for corrosion, maintaining signal integrity over time. Rated for up to 13.5A and 400V, this terminal block is suited for a variety of industrial, manufacturing, and commercial electronic applications.

Screw terminals with integrated tension sleeves simplify the wiring process, providing secure retention and minimizing risk of accidental disconnection or contact with live parts. The insulating PA housing is designed to block leakage currents and offers surge protection up to 4kV, improving equipment safety and minimizing hardware damage risk.

Compliance with cULus, CSA and EU RoHS standards demonstrates adherence to global safety and environmental requirements. The terminal block has been tested for vibration resistance (IEC 60068-2-6) and electrical conductor durability (IEC 60999-1), supporting reliable performance in demanding industrial environments.

The product is primarily used in PCB wiring for automation, instrumentation, industrial controls, power supplies, HVAC circuits, and other applications requiring a reliable multi-point terminal interface. Its compact single-row format supports easy access and efficient assembly.

Designed for secure PCB connectivity with 3 contact positions for versatile wiring. Offers 5.08 mm pitch for ease of integration on compact circuit boards. Supports wave soldering mount for reliable installation and long-lasting electrical performance.

Rated for up to 13.5A and 400V, suitable for demanding power and signal applications. Uses tin-plated copper alloy contacts for efficient electrical transmission and corrosion resistance. Features screw terminals and built-in tension sleeves for quick and robust wire retention.

Complies with cULus, CSA, and EU RoHS standards, ensuring quality and safety. Passed IEC 60999-1 and IEC 60068-2-6 test standards for durability and vibration resistance.

This terminal block is manufactured in Germany, reflecting high-quality European engineering and manufacturing standards. It is a preferred choice for designers and engineers in the electronics and industrial sectors seeking reliability and safety in board-level connections. Explore related PCB terminal blocks and connectors from Phoenix Contact in the PCB Terminal Block category at EnvMart for more options.
