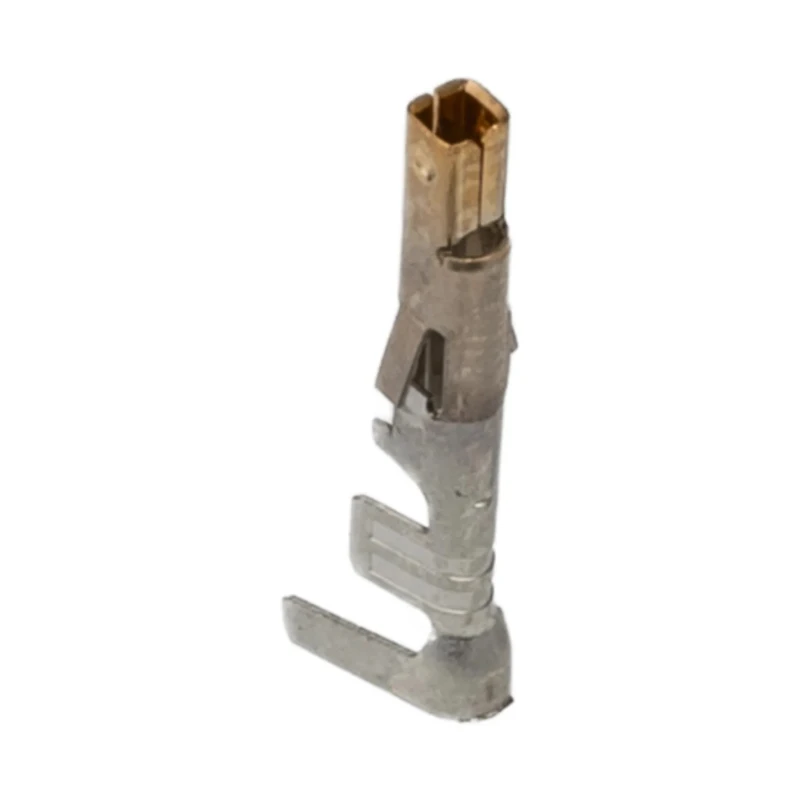

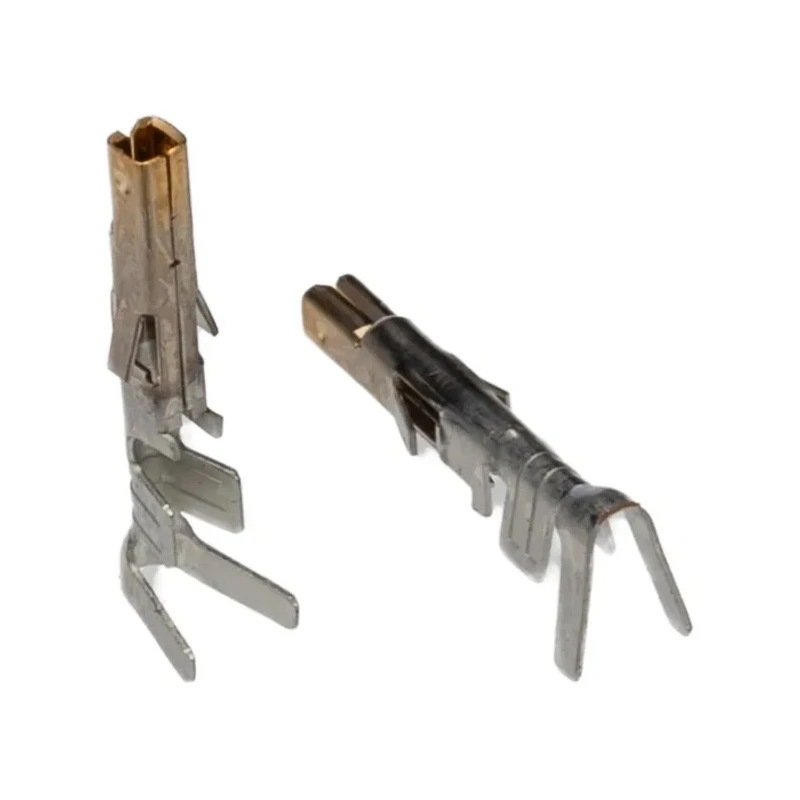

Molex 5556 Series Female Crimp Terminal, 16 AWG Min Crimp, 16 AWG Max, Gold Plating, Phosphor Bronze Contact 39-00-0186
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Supports current up to 9 amperes for high-performance applications.
- Compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
- Suitable for wire sizes from 16 AWG, with a maximum wire cross-section of 1.3mm².
- Gold plated phosphor bronze contact material ensures excellent conductivity and corrosion resistance.
- Operates reliably in temperature ranges between -40°C and 105°C.
- Crimp termination type designed for secure and durable wire attachment.
- Features low maximum contact resistance of 10 milliohms to ensure signal integrity.
- Durable construction supports up to 30 mating cycles without degradation.
Product Description
Molex 39-00-0186 Female Crimp Terminal, part of the 5556 Series, is engineered for secure and reliable electrical connections with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It supports robust power transmission applications with a current rating of 9A and voltage rating up to 600V.
This crimp terminal's contact material is phosphor bronze, selectively gold-plated to enhance conductivity, reduce contact resistance, and provide excellent resistance to corrosion. It accommodates wires with a minimum and maximum size of 16 AWG and a maximum cross-sectional area of 1.3 mm², making it suitable for medium gauge wiring needs.
Designed to operate efficiently in harsh environments, it withstands temperatures from -40°C to 105°C without loss of performance. The maximum contact resistance is maintained at a low 10 milliohms, ensuring minimal signal loss and power dissipation. It offers reliable crimp termination with a maximum of 30 mating cycles, making it ideal for applications requiring frequent disconnects and reconnects.
High current handling capability up to 9A. Gold-plated phosphor bronze contacts for durability and performance. Compact design fitting Mini-Fit connector housings. Wide operational temperature range for industrial and electrical uses.
Low contact resistance ensuring superior signal and power transmission. Crimp termination suitable for 16 AWG wires up to 1.3 mm². Supports up to 30 mating cycles for maintenance and reuse.
This terminal finds extensive use in power distribution, wire-to-board and wire-to-wire electrical connections across industrial, commercial, and manufacturing sectors. It is ideal for use within electronic equipment assembly, automotive wiring harnesses, and other applications demanding dependable high-current connections.
Choose Molex 39-00-0186 Female Crimp Terminal for trusted performance in all demanding electrical environments. Explore our range of Crimp Contacts and connectors at EnvMart for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of up to 9 amperes, making it suitable for high-performance applications.
This terminal accommodates wire sizes from 16 AWG, with a maximum cross-sectional area of 1.3 mm².
It is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The maximum operating temperature is 105°C, allowing it to function effectively in harsh environments.
It operates reliably in temperatures as low as -40°C.
It features a crimp termination type, designed for secure and durable wire attachment.
This terminal can support up to 30 mating cycles without degradation.
The contact material is phosphor bronze, which is selectively gold-plated for enhanced conductivity and corrosion resistance.
The maximum contact resistance is maintained at a low 10 milliohms, ensuring minimal signal loss.
The country of origin for this terminal is the United States.
It is ideal for power distribution, wire-to-board, and wire-to-wire connections in various industrial, commercial, and manufacturing sectors.
Gold plating enhances conductivity and provides excellent resistance to corrosion, ensuring reliable performance.
