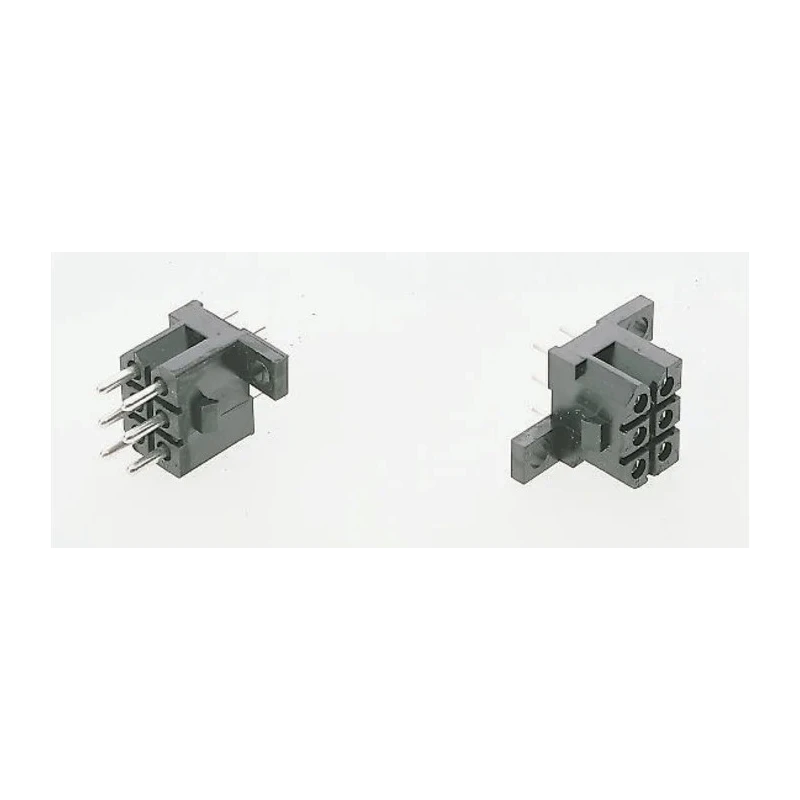

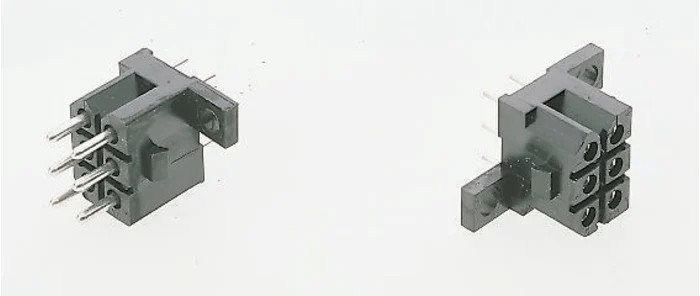

ITT Cannon Trident Series Straight Through Hole Multiway Connector 24 Contact 5.08 mm Pitch 4 Row TST24RB02T / 192991-0254

ITT Cannon TST24RB02T / 192991-0254 is a robust Trident Series multiway connector designed for PCB mounting with through-hole installation. It incorporates 24 female contacts arranged in 4 rows and spaced at a 5.08 mm pitch, making it ideal for wire-to-board connections in electronic assemblies.

The connector’s housing is made from durable nylon material and features a shrouded, straight through hole design to provide enhanced mechanical integrity and protection of contacts. The tin-plated contacts are terminated by soldering, ensuring reliable electrical performance with a continuous current rating of 13A and voltage up to 250V.

It is engineered to operate efficiently across a wide temperature range from -55°C to 105°C, suitable for industrial and commercial electronic environments. This connector series allows easy and secure mating with cable shells of type AQM range, which are shaped to guarantee correct orientation and latching between parts.

The type A cable mounting and type B snap-in chassis mounting options facilitate flexible assembly configurations, including in-line connections when required. These connectors accept pin or socket inserts that can be soldered or crimped, supporting multiple wire entry sizes for diverse wiring needs.

This product is recommended for applications in electronics manufacturing, test equipment, industrial controls, and power distribution where reliable, high-current PCB connections are necessary. It is a practical choice for designers needing compact, reliable connectors with straightforward assembly and consistent contact performance.

The connector provides 24 contact points arranged in four rows for high-density wiring. Nylon housing and shrouded design protect and isolate contacts effectively. Tinned contacts and solder termination ensure stable and durable electrical connectivity.

Wide operating temperature range allows use in harsh environments. Through-hole mount ensures solid mechanical fastening to PCBs. Compatible with AQM series cable shells for secure and oriented mating. Designed for wire-to-board connection systems requiring multiple contacts.
