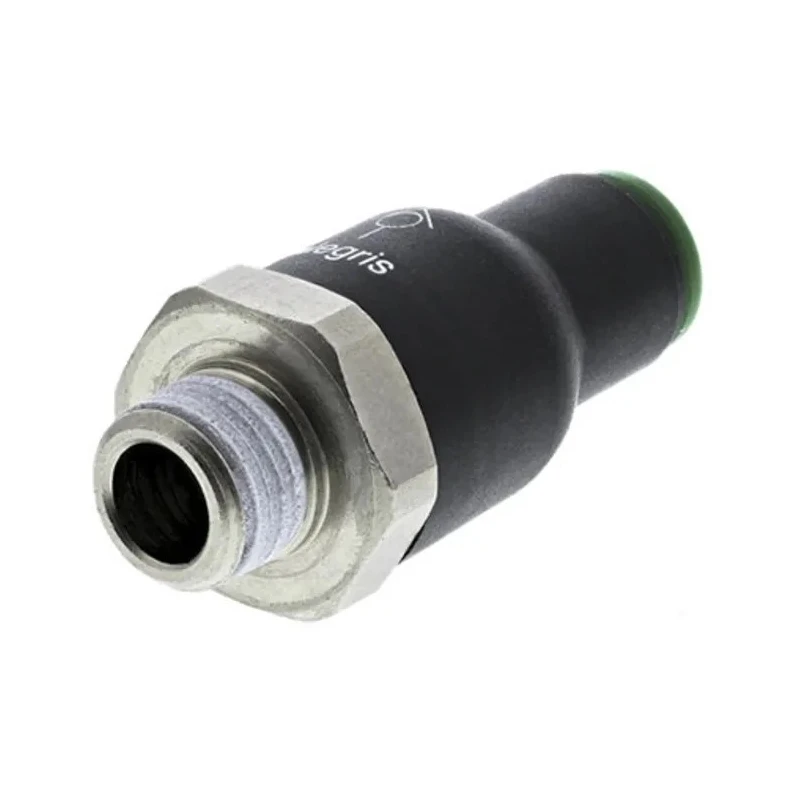

Legris Pneumatic Non Return Valve 10 bar BSP to BSP Tapered Connections Stainless Steel Polymer Body 7985 08 13

Legris 7985 08 13 Pneumatic Non Return Valve offers robust one-way airflow control for pneumatic and fluid power applications. Featuring BSP inlet and BSP tapered outlet connections, this valve is rated to a maximum operating pressure of 10 bar with a reliable sealing mechanism to prevent backflow.

The valve body is made from engineering grade polymer combined with a stainless steel gripping ring, nitrile seals, and nickel-plated brass parts to ensure long service life and resistance to wear. It operates efficiently across a temperature range of 0 to 70 degrees Celsius, making it suitable for standard pneumatic system environments.

There are two flow versions of this valve: the exhaust type (red color coded), which allows air flow from the threaded end to the tube end only, and the supply type (green color coded), which permits flow in the opposite direction. Both versions feature sealant coated threads for quick, leak-free installation.

This product is ideal for industrial applications in manufacturing, HVAC, laboratories, fluid power systems, and machinery where precise pneumatic valve control is critical. It supports maintaining air pressure and system integrity by preventing reverse airflow, enhancing overall system reliability.

This valve ensures air flows only in one direction to prevent backflow in pneumatic systems. Constructed with a plastic body, stainless steel gripping ring, nitrile seals, and nickel-plated brass components for durability.

Supports operating temperatures from 0 to 70 degrees Celsius, suitable for various industrial pneumatic applications. Available in exhaust or supply flow types, identified by red or green color coding. Sealant coated threads facilitate fast and secure installation.

Ideal for fluid power systems requiring efficient non-return valve performance. Can be used effectively in industrial, manufacturing, HVAC, and laboratory pneumatic setups.

Choose Legris industrial pneumatic non-return valves for dependable performance and long-term durability. Browse the Pneumatic Non Return Valves category for compatible fittings and accessories.
