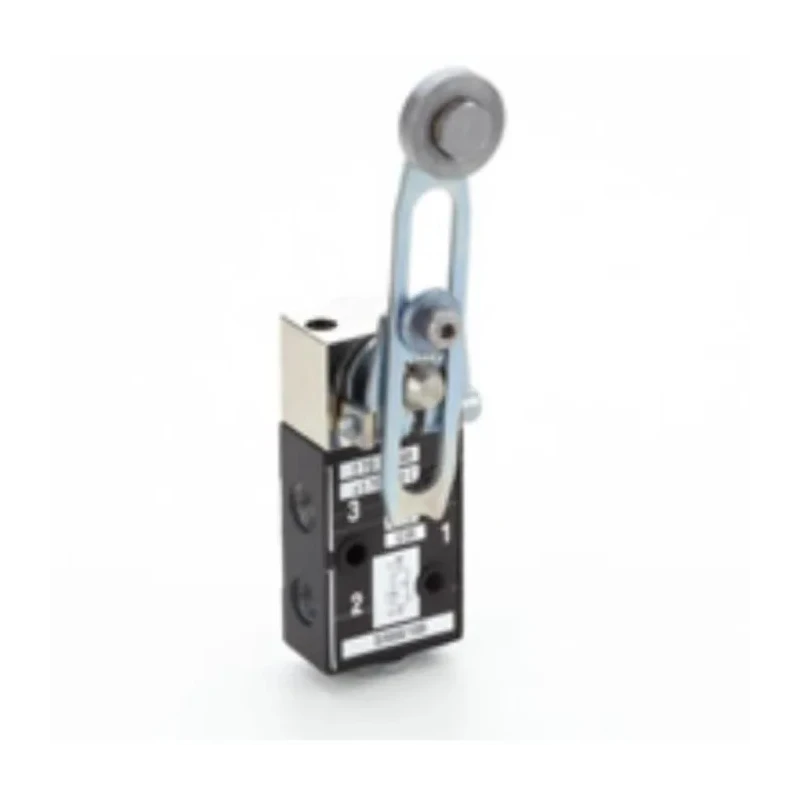

Norgren Pneumatic Manual Control Valve Roller Lever G 1/8 Thread Size 10 bar Max Pressure Die Cast Zinc Body S/666/108

Free Delivery in India | Lowest Global Shipping Charges

Norgren Pneumatic Manual Control Valve Roller Lever G 1/8 Thread Size 10 bar Max Pressure Die Cast Zinc Body S/666/108

Name: Norgren Pneumatic Manual Control Valve Roller Lever G 1/8 Thread Size 10 bar Max Pressure Die Cast Zinc Body S/666/108
Brand: NORGREN
SKU: 96355
Price: 1271.57 USD
Availability: InStock



Category Pneumatic Manual Control Valves Brand NORGREN Condition New

Specifications

Country of Origin	United Kingdom
Brand	Norgren
Body Material	Die Cast Zinc
Maximum Operating Pressure	10 bar
Height	19mm
Length	75mm
Model	S/666/108
Width	34mm
Series	S666
Number Of Ports	3
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Number of Positions	2
Port Size	G 1/8
Minimum Operating Temperature	-20°C
Maximum Flow Rate	197L/min
Control Mechanism	Roller Lever
Connection Thread Standard	G
Valve Function	3/2
Control Button/Switch Colour	Black, Silver, Red, Green

Key Features

Operates at a maximum pressure of 10 bar and temperature range from -20°C to 50°C.
Compact die-cast zinc alloy body ensures durability and corrosion resistance.
Features a G 1/8 standard thread size for easy integration into pneumatic systems.
Provides 3/2 valve function with 2 positions and 3 ports for versatile control.
Equipped with NBR seals to block debris and prolong service life.
Aluminium roller spring arm enables mechanical actuation and reliable response.
Can be converted to 2/2 valve by plugging the exhaust port.
Suitable for automation systems, manufacturing facilities, automotive production, and construction plants.

Product Description

Norgren S/666/108 Pneumatic Manual Control Valve utilizes a roller lever control mechanism optimized for pneumatic applications requiring reliable manual actuation. The valve offers a maximum operating pressure of 10 bar and operates within a temperature range of -20°C to 50°C, suitable for various industrial environments.

The valve body is made from robust die-cast zinc alloy providing excellent durability and corrosion resistance under demanding conditions. The compact design, with dimensions of 75mm length, 34mm width, and 19mm height, allows easy integration into existing pneumatic systems.

Standard G 1/8 thread size ensures compatibility and quick fitting. The valve function is 3/2 with 2 positions and 3 ports, providing flexible flow control. NBR seals effectively block particulate contamination, enhancing the valve's longevity.

The roller spring arm, made of aluminum, provides mechanical actuation, which is especially useful in automated systems for detecting component positions, such as cylinder decompression.

This valve can also be adapted to a 2/2 valve function by plugging the exhaust port, offering versatility in pneumatic circuit design. It is applicable in automation systems, manufacturing lines, automotive production, and construction plants.

Operates at a maximum pressure of 10 bar and temperature range from -20°C to 50°C. Compact die-cast zinc alloy body ensures durability and corrosion resistance. G 1/8 thread size for easy integration. 3/2 valve function with 2 positions and 3 ports.

NBR seals block debris for extended service life. Aluminium roller spring actuator provides reliable mechanical actuation. Convertible to 2/2 valve by plugging exhaust port. Compact dimensions suitable for tight installations.

Used in automation, manufacturing, automotive, and construction sectors. Explore more Pneumatic Manual Control Valves and related products in the Industrial Valves section on EnvMart for your pneumatic control system needs.
