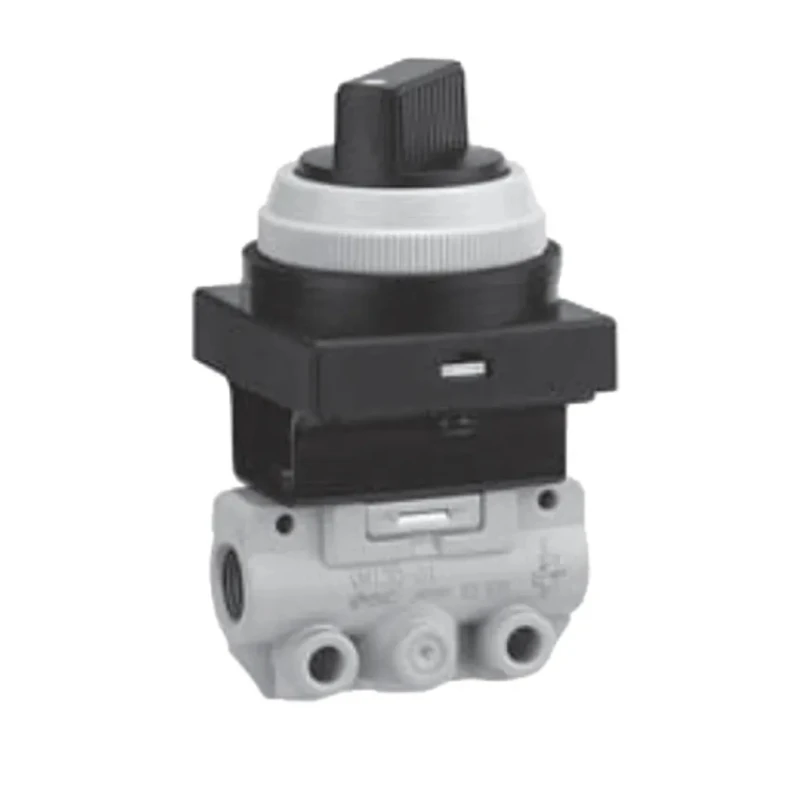

SMC Push Pull Mechanical Valve VM100 Series, NPT Rc Thread R 1/8, 3/2 Way, 1 Mpa, Zinc Die Cast Alloy Body

The SMC VM130-01-34BA Push Pull Mechanical Valve VM100 Series is a precision-engineered pneumatic manual control valve offering reliable directional control in pneumatic systems. Featuring a 3/2 way valve function with three ports and two positions, it enables efficient flow control suited for various industrial applications.

Its zinc die cast alloy body provides robust mechanical resistance and durability during prolonged service. The valve supports a maximum operating pressure of 1 Mpa and demonstrates a maximum flow capacity of 144 L/min, facilitating moderate air throughput in piping systems.

Designed with side port connections using NPT and Rc R 1/8 threads, this valve fits compact piping layouts, saving space in panel or manifold installations. It is manually actuated using a black push-pull button with a detent style selector and mechanical spring return for consistent position resetting.

Operational temperature ranges from -5°C to +60°C, allowing it to function effectively under typical industrial ambient and media conditions. The valve is suitable for air and inert gases, avoiding use with freezing media or pressures exceeding its rating.

The valve supports high-pressure pneumatic applications up to 1.0 Mpa. Flow capacity of 144 L/min meets moderate pneumatic system demands. Zinc die-cast alloy body ensures durability and resistance to mechanical wear. Side port design with NPT and Rc threaded 1/8 connections accommodates diverse piping standards.

Push-pull actuator with detent and mechanical spring return offers simple and reliable manual control. Operates within a wide temperature range from -5°C to +60°C. Ideal for machinery requiring manual directional control and compact pneumatic manifolds.

Suitable for air tools and pilot control in larger pneumatic systems. Manufactured in Japan, ensuring high standards of quality and reliability. Commonly used in maintenance stations requiring visible manual operation and control.

The SMC VM100 series mechanical valve is widely used in industrial pneumatics for manual control tasks requiring compact, reliable solutions. Its combination of robust construction, flexible thread standards, and ergonomic push-pull actuator make it suitable for numerous sectors including manufacturing, maintenance, and automation.
