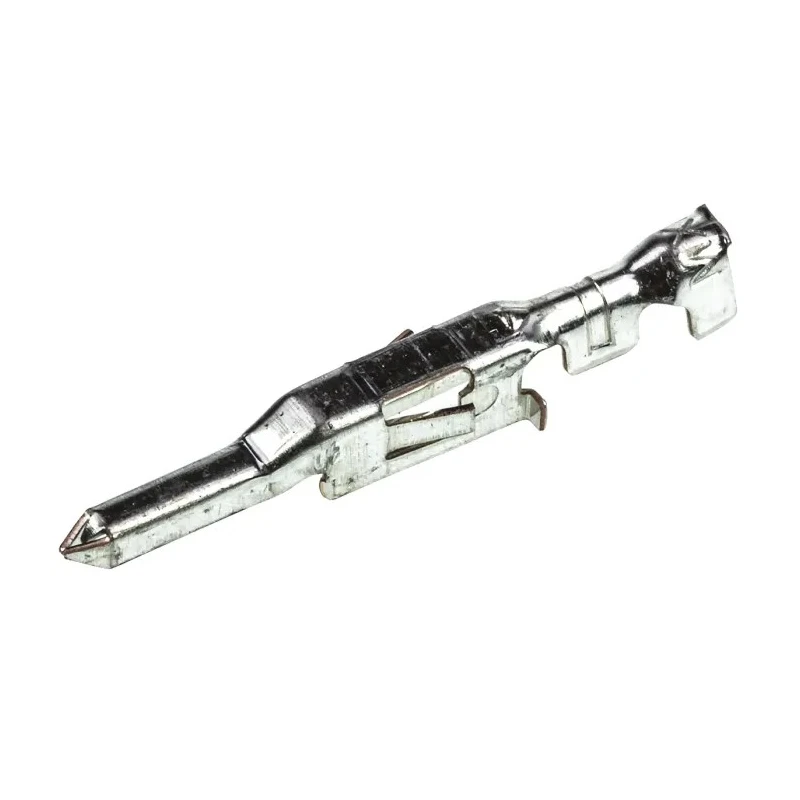

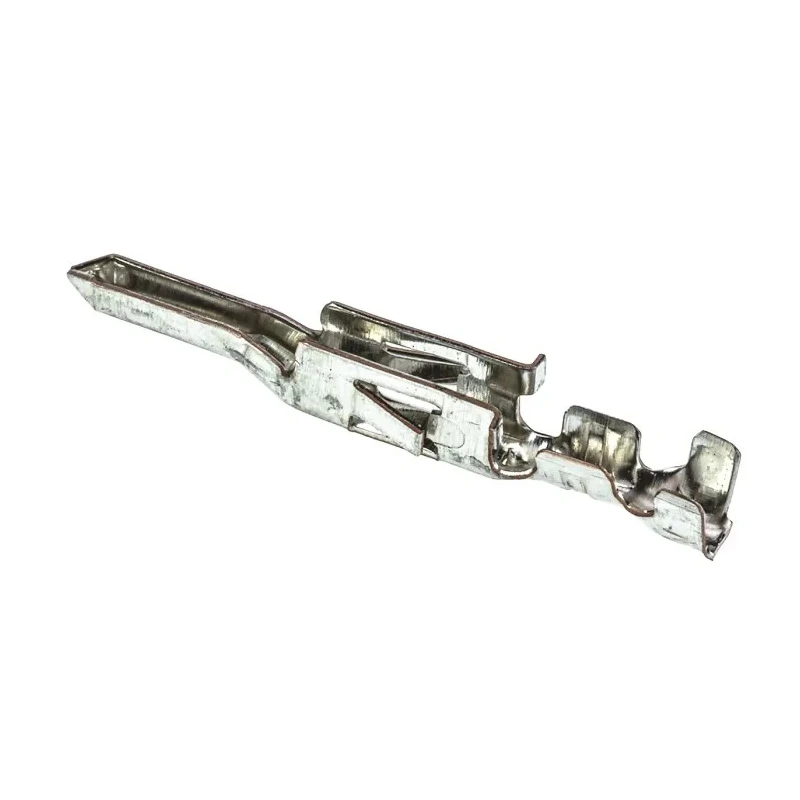

Molex 5558 Series Male Crimp Terminal with Tin Plating for 28 AWG to 22 AWG Wire, 9A Current Capacity 39-00-0068
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Key Features
- Compatible with Mini-Fit TPA and Mini-Fit BMI connector housings and Mini-Fit Jr series.
- Constructed from phosphor bronze with tin plating for excellent conductivity and corrosion resistance.
- Rated for continuous current up to 9A and maximum operating temperature of 105°C.
- Features locking tangs to securely retain terminals within connector housings.
- Suitable for use in automotive, industrial, medical, communications, and consumer electronics applications.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Has a maximum contact resistance of 10 milliohms ensuring minimal power loss.
Product Description
The Molex 39-00-0068 5558 Series Male Crimp Terminal is engineered for secure and reliable electrical connections in Mini-Fit Junior plug and receptacle housings. This male crimp terminal supports wire sizes from 28 AWG minimum to 22 AWG maximum, providing design flexibility for various applications.
Manufactured from high-quality phosphor bronze with a tin plating, the terminal ensures excellent electrical conductivity, enhanced corrosion resistance, and durability under demanding conditions.
The terminal is rated for a continuous current of 9 amperes and features multiple points of contact to improve connection reliability and electrical performance. Its locking tangs secure the terminals firmly within the connector housing, preventing accidental disconnections.
This crimp terminal maintains reliable operation across a wide temperature range from -40°C to 105°C, accommodating industrial and automotive environments.
Key applications include automotive electronics, industrial automation, medical devices, communications infrastructure, and consumer electronic products, where dependable connector performance is critical.
Compatible with Mini-Fit TPA and Mini-Fit BMI connector housings and Mini-Fit Jr series. Constructed from phosphor bronze with tin plating for excellent conductivity and corrosion resistance. Rated for continuous current up to 9A and maximum operating temperature of 105°C.
Features locking tangs to securely retain terminals within connector housings. Suitable for automotive, industrial, medical, communications, and consumer electronics uses. Operates reliably in temperatures ranging from -40°C to 105°C.
Maintains maximum contact resistance of 10 milliohms for efficient electrical performance.
This product is manufactured in the United States and offered new for industrial and commercial applications. It is a standard choice for wiring harnesses and connectors requiring reliable male Crimp Contacts.
Browse the Electronics Components category at EnvMart for a full selection of precision connectors and crimp terminals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a continuous current of 9 amperes.
This terminal supports wire sizes from 28 AWG minimum to 22 AWG maximum.
It is constructed from phosphor bronze with tin plating, ensuring excellent conductivity and corrosion resistance.
The maximum operating temperature is 105°C.
It operates reliably in temperatures as low as -40°C.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical performance.
It is compatible with Mini-Fit TPA and Mini-Fit BMI connector housings, as well as the Mini-Fit Jr series.
It is suitable for use in automotive, industrial, medical, communications, and consumer electronics applications.
This model uses a crimp termination type.
It features locking tangs that securely retain the terminals within the connector housings, preventing accidental disconnections.
This product is manufactured in the United States.
It belongs to the Molex 5558 series.
