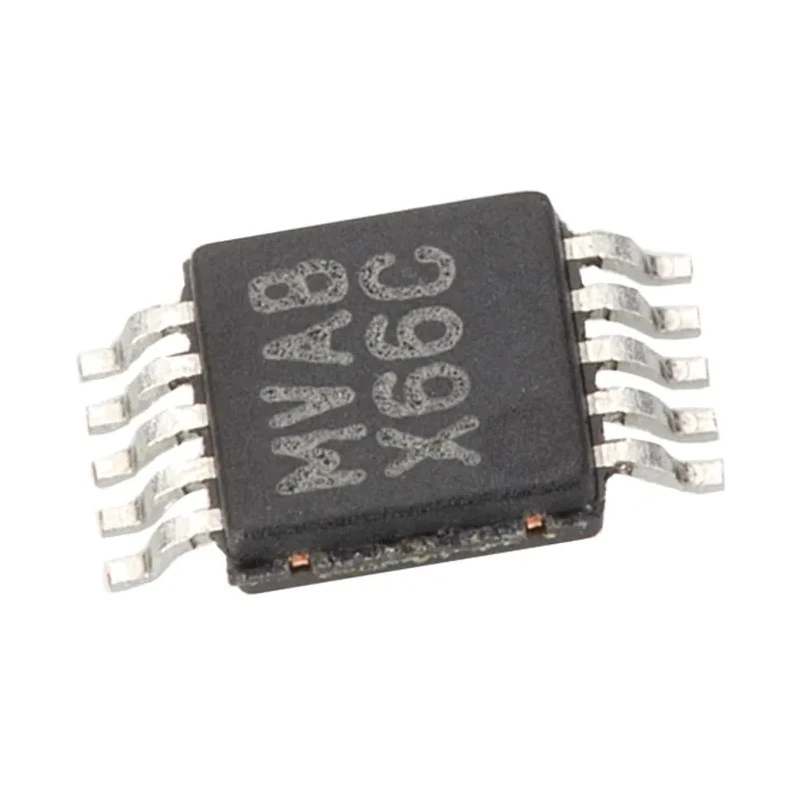

Texas Instruments 12-Bit 4-Channel Digital to Analogue Converter MicrosWire SPI QSPI 10-Pin MSOP DAC124S085CIMM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 3mm |
| Model | DAC124S085CIMM/NOPB |
| Width | 0.86mm |
| Mount Type | Surface |
| Settling Time | 8.5μs |
| Series | DAC124S085 |
| Maximum Operating Temperature | 105°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | Microwire, SPI, QSPI |
| Architecture | Resistor String |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 10 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- Offers 12-bit resolution ensuring high accuracy in analogue signal output.
- Features a resistor string architecture for stable and reliable performance.
- Supports 4 independent output channels for versatile application use.
- Operates within voltage supply range of 3.3V to 5V.
- Compact 10-pin MSOP surface mount package supporting easy integration.
- Microwire, SPI, and QSPI compatible interface types for flexible connectivity.
- Operating temperature range from -40°C to 105°C for robust industrial usage.
- Fast settling time of 8.5 microseconds enables quick signal response.
Product Description
Texas Instruments DAC124S085CIMM/NOPB is a high-precision 12-bit Digital to Analogue Converter (DAC) designed for industrial, laboratory, and embedded applications. This device incorporates a resistor string architecture, which delivers stable linear output and high resolution across 4 independent channels, enabling multi-channel signal conversion in compact designs.
The DAC supports Microwire, SPI, and QSPI digital communication protocols, making it compatible with a broad range of microcontroller interfaces. Its 10-pin MSOP surface mount package minimizes PCB footprint, facilitating integration in space-constrained environments.
Operating between 3.3V and 5V supply voltage levels and a wide temperature range from -40°C to 105°C, the DAC124S085CIMM/NOPB is suitable for harsh industrial and automotive environments where reliability under varying conditions is critical. The device ensures a rapid settling time of 8.5 microseconds, supporting quick signal transitions vital in control and measurement systems.
The device requires an external voltage reference, which offers flexibility for adapting to specific signal levels and enhances output accuracy. Compliance with REACH and RoHS reflects its environmental and safety adherence for modern electronics standards.
This DAC is ideal for applications such as industrial automation, instrumentation, data acquisition systems, and embedded signal processing where precise multi-channel Analog output is needed.
Offers 12-bit resolution ensuring high accuracy in analogue signal output. Features a resistor string architecture for stable and reliable performance. Supports 4 independent output channels for versatile application use.
Operates within voltage supply range of 3.3V to 5V. Compact 10-pin MSOP surface mount package supporting easy integration. Microwire, SPI, and QSPI compatible interface types for flexible connectivity. Operating temperature range from -40°C to 105°C for robust industrial usage.
Fast settling time of 8.5 microseconds enables quick signal response. Complies with REACH and RoHS standards ensuring environmental safety. External voltage reference allows customized voltage control and accuracy. Explore more Texas Instruments Digital to Analogue Converters and semiconductor components available at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAC124S085CIMM/NOPB offers a resolution of 12 bits, ensuring high accuracy in analogue signal output.
This model supports 4 independent output channels, allowing for versatile application use.
It operates within a voltage supply range of 3.3V to 5V.
The settling time for this digital to analogue converter is 8.5 microseconds, enabling quick signal response.
It supports Microwire, SPI, and QSPI interface types for flexible connectivity.
The device operates within a temperature range from -40°C to 105°C, making it suitable for robust industrial usage.
This model comes in a compact 10-pin MSOP surface mount package.
It features a resistor string architecture, which provides stable and reliable performance.
Yes, the device requires an external voltage reference, allowing for customized voltage control and enhanced output accuracy.
The DAC124S085CIMM/NOPB complies with REACH and RoHS standards, ensuring environmental safety.
The height of this model is 3mm and the width is 0.86mm.
It is suitable for applications such as industrial automation, instrumentation, data acquisition systems, and embedded signal processing.
