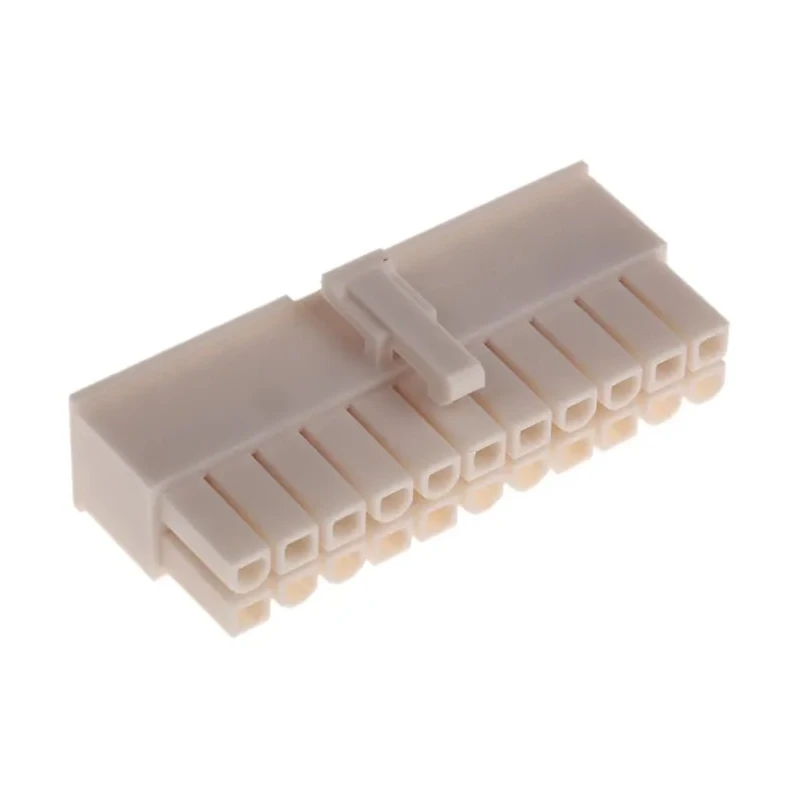

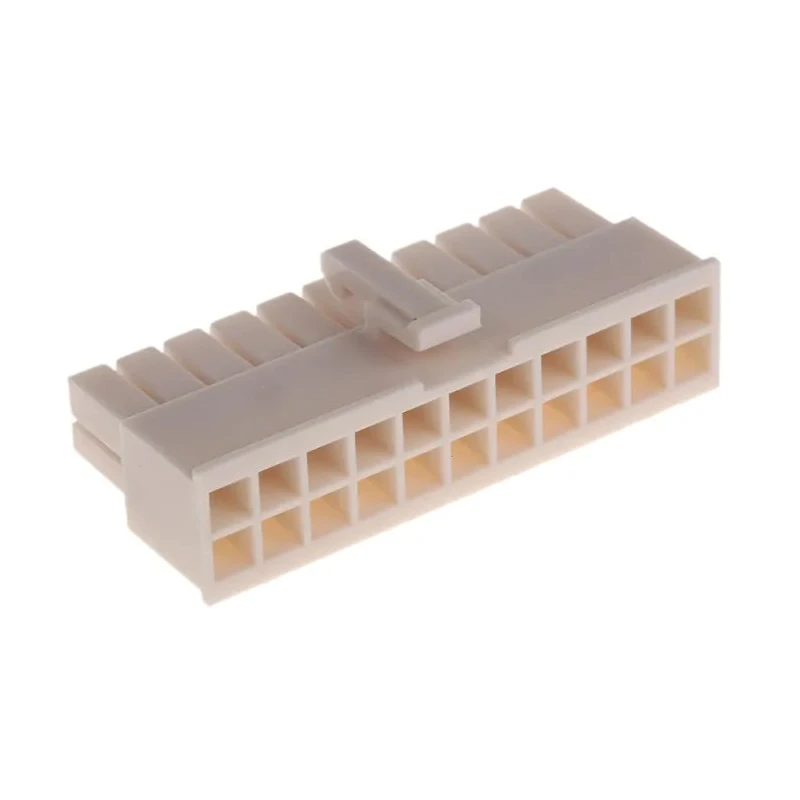

Molex Mini-Fit Jr Female Connector Housing 22 Way 2 Row Straight Cable Mount 4.2 mm Pitch 39-01-2225

Molex 39-01-2225 Mini-Fit Jr Female Connector Housing is a high-quality 22 contact, 2 row straight connector featuring a 4.2 mm pitch. This cable mount female connector is engineered to provide excellent electrical performance and mechanical reliability in demanding industrial applications.

Designed as part of the Mini-Fit Junior series, this connector housing accommodates up to 13 amps per circuit, making it suitable for power distribution and signal transmission in systems requiring robust connections. The fully isolated terminals protect against contamination and mechanical damage, prolonging service life.

Key design features include polarization and keying attributes that prevent incorrect mating orientations, ensuring installation integrity and operational safety. A positive locking mechanism secures the connector in place, preventing accidental disconnections from vibration or shock. Installation is confirmed with an audible click when properly mated.

The housing is manufactured from a flame retardant nylon material, complying with UL94V-0 or UL94V-2 standards, which add safety and resistance to fire hazards in electrical assemblies.

Compatibility with standard Mini-Fit and Mini-Fit Plus crimp terminals allows for versatile use in wire-to-wire connection setups. Typical applications include industrial machinery, automotive wiring harnesses, telecommunications equipment, power supplies, and other electronic systems demanding durable connectors.

Compact dimensions of 47.4 mm length and 15.1 mm width make it suitable for tight spaces without compromising connection reliability. Supports up to 13A current per circuit for high current applications. Fully isolated terminals protect against debris and damage.

Polarization and keying prevent mismating and misalignment. Positive locking mechanism ensures secure mating and prevents accidental disconnection. Audible click confirms proper mating connection. Constructed from flame retardant nylon housing material.

Compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals. Designed for wire-to-wire applications in diverse industrial sectors. Dimensions: Length 47.4 mm, Width 15.1 mm. Brand Molex ensures quality and durability in electronic interconnections.

This Mini-Fit Jr female Connector Housing is ideal for use in electronic manufacturing, automotive, aerospace, telecommunications, and power management systems. Its robust construction and safety features provide long-lasting performance in industrial, laboratory, and commercial environments.
