Molex 24 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female 74320-4000

Free Delivery in India | Lowest Global Shipping Charges

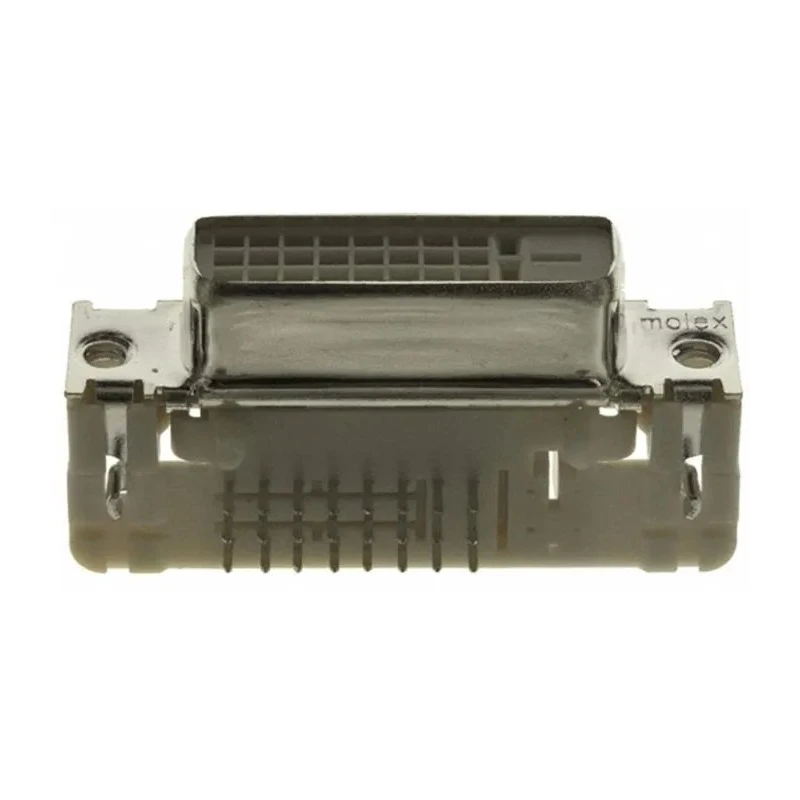

Molex 24 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female 74320-4000

Name: Molex 24 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female 74320-4000
Brand: Molex
SKU: 206891
Price: 6.16 USD
Availability: InStock



Category D-Sub Connector Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	40V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	74320
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Pitch	1.91mm
Contact Plating	Gold
Number of Contacts	24
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard

Key Features

Supports a current rating of 3A for standard electrical applications.
Features a right angle orientation suitable for PCB mounting.
Constructed with a thermoplastic housing for durability and insulation.
Contacts are made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.
Operates reliably within a temperature range of -20°C to 85°C.
Termination type is solder, ensuring a secure connection to circuit boards.
Rated for voltage up to 40 V for low-power electronic devices.
Connector design does not include specific standards or approvals.

Product Description

Molex 74320-4000 is a high-quality 24 Way Right Angle Through Hole D-Sub Connector Female designed for precise and reliable electrical connections in electronic assemblies. It features a fine 1.91 mm pitch, making it suitable for compact designs requiring a robust connector system.

The connector supports a current rating of 3A and a maximum voltage of 40V, providing adequate performance for a wide range of industrial and commercial low-power applications. Its thermoplastic housing offers excellent mechanical strength and electrical insulation.

The contacts are crafted from copper alloy and plated with gold, ensuring superior conductivity and resistance to corrosion, which contributes to the longevity and reliability of connections. The right angle orientation facilitates orientation adaptability during PCB mounting and assembly processes.

The connector's operating temperature range spans from -20°C to 85°C, making it suitable for various environmental conditions including electronics in HVAC, industrial automation, and instrumentation systems.

Termination is via solder, which provides a secure and permanent bond to circuit boards, ensuring electrical and mechanical integrity in manufacturing environments. Although this product does not carry specific standards or approvals, Molex's reputation for quality manufacturing ensures dependable performance.

Supports a current rating of 3A for standard electrical applications. Right angle orientation suitable for PCB mounting. Thermoplastic housing material provides durability and insulation. Gold-plated copper alloy contacts enhance conductivity and corrosion resistance.

Operating temperature range of -20°C to 85°C ensures performance in diverse conditions. Solder termination type for secure bonding to circuit boards. Rated voltage of 40V suitable for low-power electronic devices. Part of the Molex 74320 series.

Manufactured in China.

This Molex D-Sub Connector is an ideal solution for electronics manufacturing, laboratory, industrial automation, and commercial applications requiring reliable connector technology. Explore other Molex connectors and components to meet your precise connectivity requirements on EnvMart.
