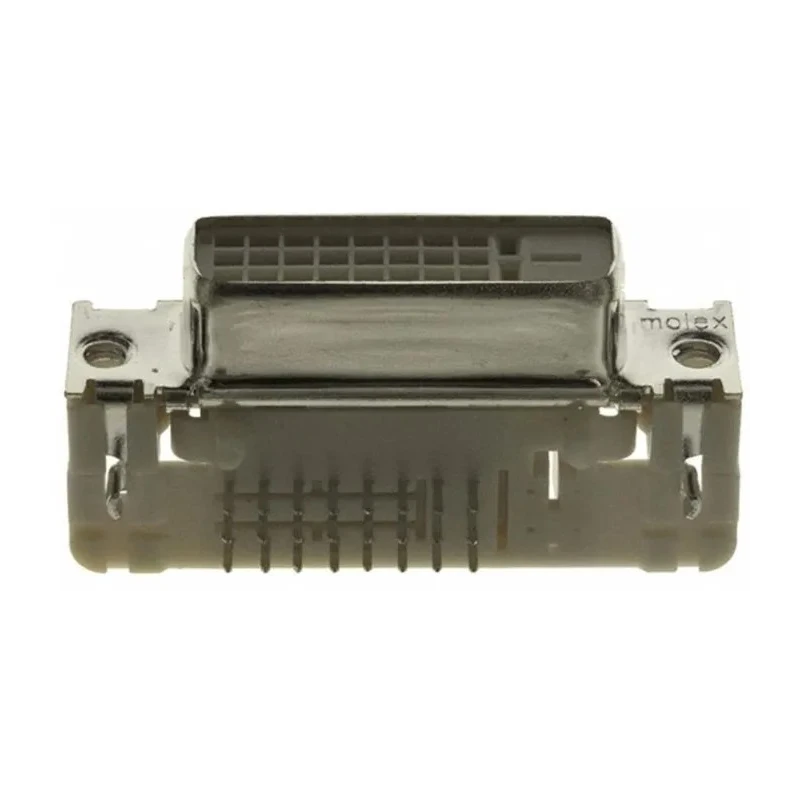

Molex 24 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female 74320-4000

Name: Molex 24 Way Right Angle 1.91 mm Pitch Through Hole D-Sub Connector Female 74320-4000
Brand: Molex
SKU: 206888
Price: 7.27 USD
Availability: InStock



Category D-Sub Connector Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	40V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	74320
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Pitch	1.91mm
Contact Plating	Gold
Number of Contacts	24
Contact Gender	Female
Connector Gender	Female
Connector Type D	Standard

Key Features

Features 24 contacts supporting 3A current capacity.
Right angle orientation for PCB mounting convenience.
Through hole mount type ensures mechanical stability.
Female connector type with gold-plated copper alloy contacts.
Suitable for operating voltages up to 40V.
Thermoplastic housing material provides durability and electrical insulation.
Designed for solder termination type connection.
Operates reliably from -20°C to 85°C temperature range.

Product Description

Molex 74320-4000 is a 24 Way Right Angle Through Hole D-Sub Connector Female, designed for high-quality electronic interconnections requiring a 1.91 mm pitch between contacts. This connector supports digital and analog video functions within a compact, robust system suitable for industrial, electronic component assembly, manufacturing, and instrumentation applications.

Featuring a right angle orientation, this connector is ideally suited for PCB mounting employing through hole solder termination for secure electrical and mechanical connection. It includes 24 gold-plated copper alloy contacts capable of carrying up to 3A current at voltages up to 40V, housed in a durable thermoplastic case ensuring insulation and endurance across a broad temperature range from -20°C up to 85°C.

The Molex 74320 series MicroCross connectors utilize an innovative 'crossing' ground blade design to enhance high-speed electrical performance and ensure signal integrity. This female connector mates with Molex 74323 series connectors and 88741 series cable assemblies, offering a reliable and versatile solution for demanding electronic and power connector needs.

Features 24 contacts supporting 3A current capacity. Right angle orientation for PCB mounting convenience. Through hole mount type ensures mechanical stability. Female connector type with gold-plated copper alloy contacts.

Suitable for operating voltages up to 40V. Thermoplastic housing material provides durability and electrical insulation. Designed for solder termination type connection. Operates reliably from -20°C to 85°C temperature range.

Part of Molex 74320 MicroCross series ensuring high-speed electrical performance.

This D-Sub Connector is widely used in industrial electronics, laboratory instrumentation, manufacturing automation, and telecommunications equipment, providing efficient and reliable connections to enhance system performance and product reliability.
