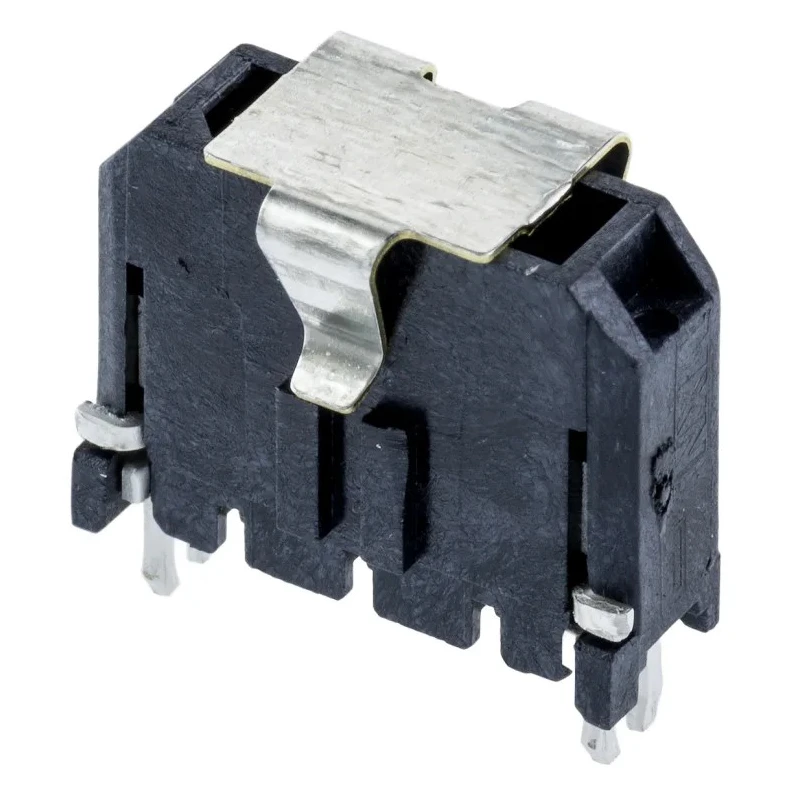

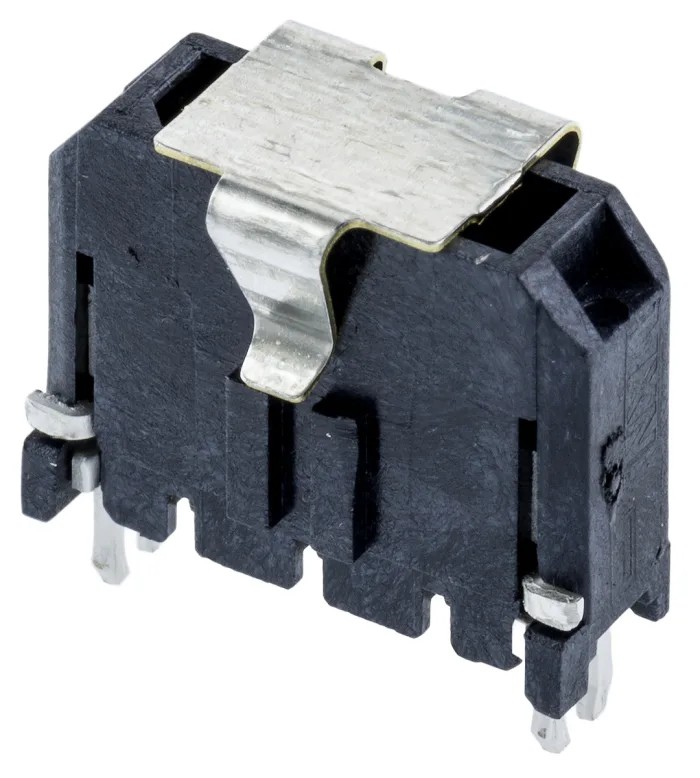

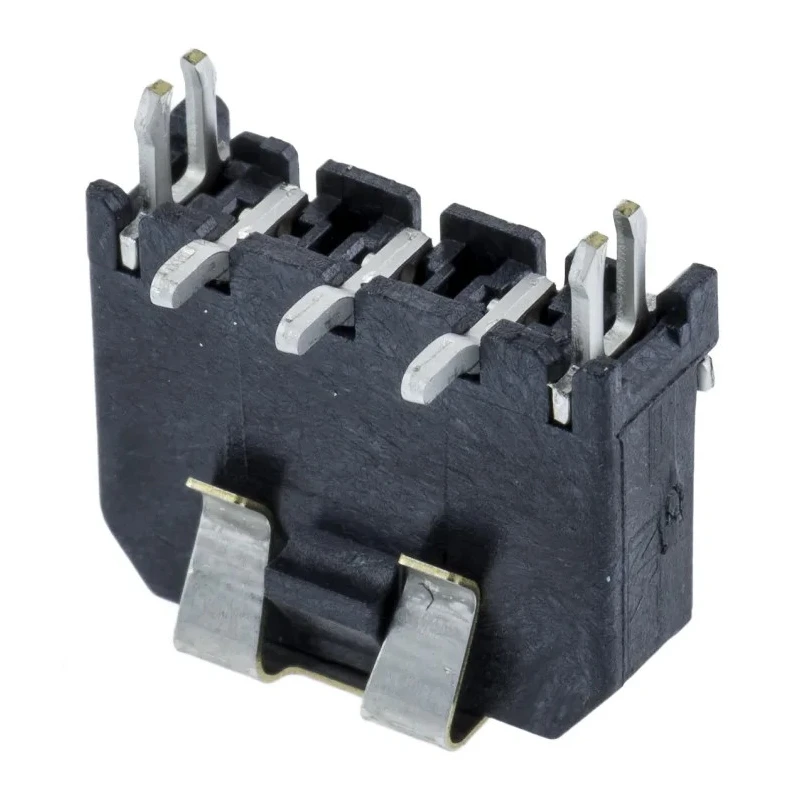

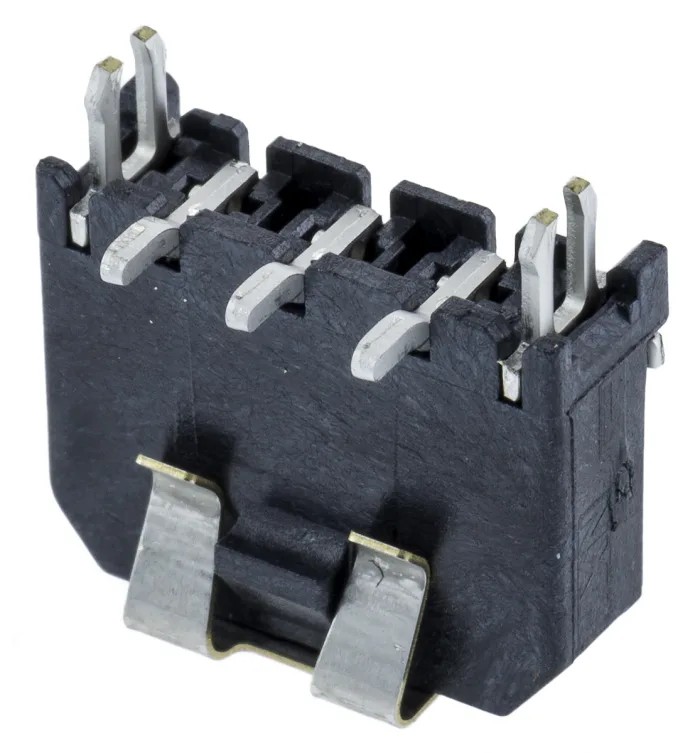

Molex Micro-Fit 3.0 Series Straight Surface PCB Header, 3 Contact(s), 3 mm Pitch, 1 Row, Shrouded 43650-0323
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports current up to 5 amps for compact power distribution.
- High temperature thermoplastic housing withstands up to 125°C operation.
- Features a straight, shrouded, single row design for secure wire-to-board connection.
- Gold plated brass contacts ensure reliable electrical conductivity.
- Locking ramp for positive latching and prevention of accidental disconnection.
- Surface mount type compatible with solder termination for PCB assembly.
- Wide operating temperature range from -40°C to 125°C for versatile use.
- Suitable for military, solar power, medical, telecommunications, and gaming terminal applications.
Product Description
Molex 43650-0323 Micro-Fit 3.0 Series Straight Surface PCB Header is a compact, high current density connector designed for low to mid-range power applications. It features a 3 mm pitch with three contacts arranged in a single row and a shrouded male contact gender configuration for added safety and secure mating.
The connector housing is made from high temperature UL 94V-0 Liquid Crystal Polymer thermoplastic that withstands temperatures up to 265°C during IR reflow soldering, making it highly suitable for modern PCB assembly processes requiring heat resistance.
Designed for wire-to-board connectivity, the connector has gold plated brass contacts providing excellent electrical conductivity and corrosion resistance. The straight orientation and surface mount style make it compatible with various electronic assemblies. The connector includes solderable metal press-fit retention clips and a locking ramp to ensure secure, stable board retention and mating stability.
Operating voltage is rated at 250 V with a current rating of 5 A, supporting a wide range of low to medium power electronic devices. The operating temperature range extends from -40°C to 125°C, fitting industrial, military, telecommunications, solar power, medical, and gaming terminal environments.
Supports high current carrying capacity in a compact footprint. Constructed from materials compliant with high temperature soldering processes. Positive latching mechanism secures connections to prevent disconnections. Fully isolated dual beam terminals deliver reliable electrical contact and performance.
Solderable retention clips and kinked solder legs provide enhanced PCB retention. Glow wire compliant ensuring safety under electrical load conditions. Compatible with through-hole and surface mount soldering techniques.
Ideal for commercial off-the-shelf military products, solar power modules, consumer electronics, and telecom equipment.
This Molex Micro-Fit 3.0 Series PCB Header (Model 43650-0323) originates from Mexico. The connector is new and ready for immediate integration into industrial, electronic, and manufacturing applications. Browse a full range of PCB headers and power connectors in the PCB Headers category on EnvMart for complementary components and design options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5 A, making it suitable for low to mid-range power applications.
The maximum operating temperature for this connector is 125°C, allowing it to function effectively in high-temperature environments.
It uses solder termination, which is compatible with surface mount assembly for PCB integration.
This connector features three contacts arranged in a single row configuration.
The pitch size of this model is 3 mm, which is standard for various electronic applications.
The housing is made from high temperature thermoplastic, while the contacts are constructed from brass with gold plating for enhanced conductivity.
The voltage rating for this connector is 250 V, making it suitable for a wide range of electronic devices.
Yes, this model is suitable for military applications, as well as solar power, medical, telecommunications, and gaming terminal environments.
It utilizes a wire-to-board connector system, which is designed for secure connections between wires and PCBs.
Yes, it includes a locking ramp that ensures positive latching and prevents accidental disconnection.
This connector originates from Mexico, ensuring compliance with relevant manufacturing standards.
It can be used in various applications including military, solar power, medical, telecommunications, and gaming terminals.
