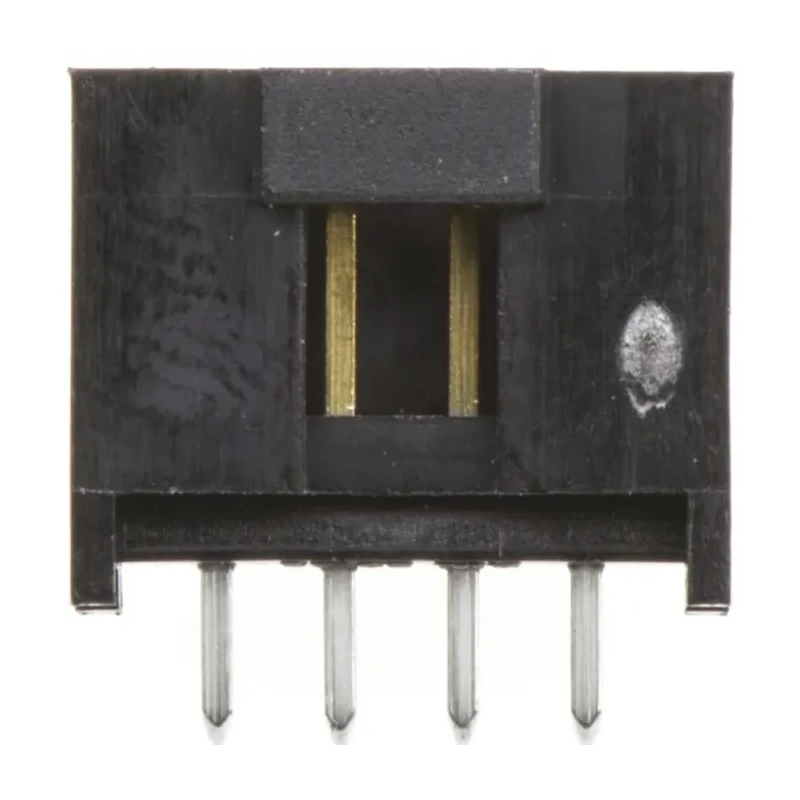

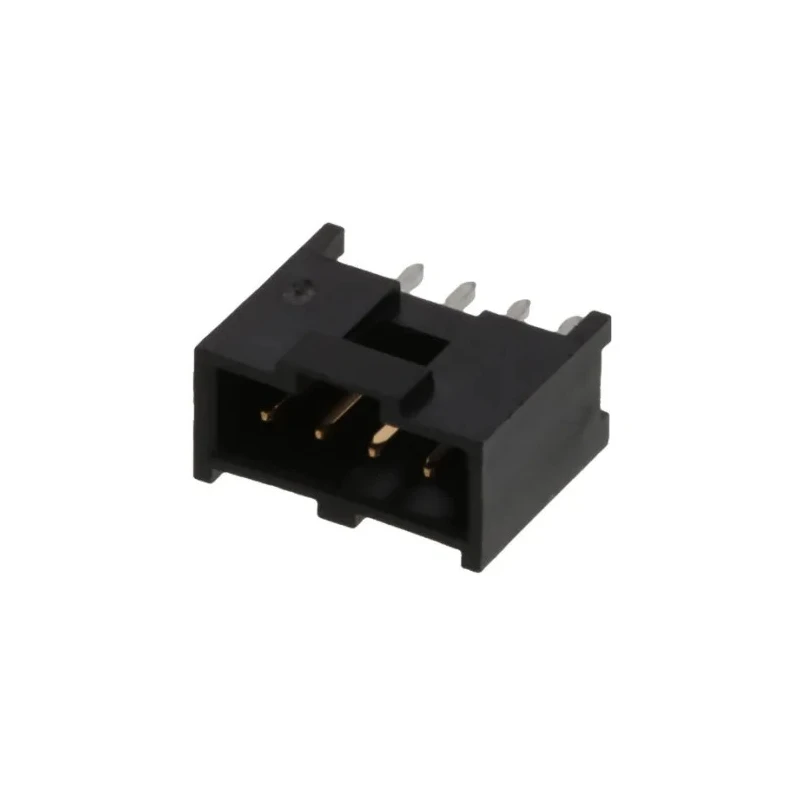

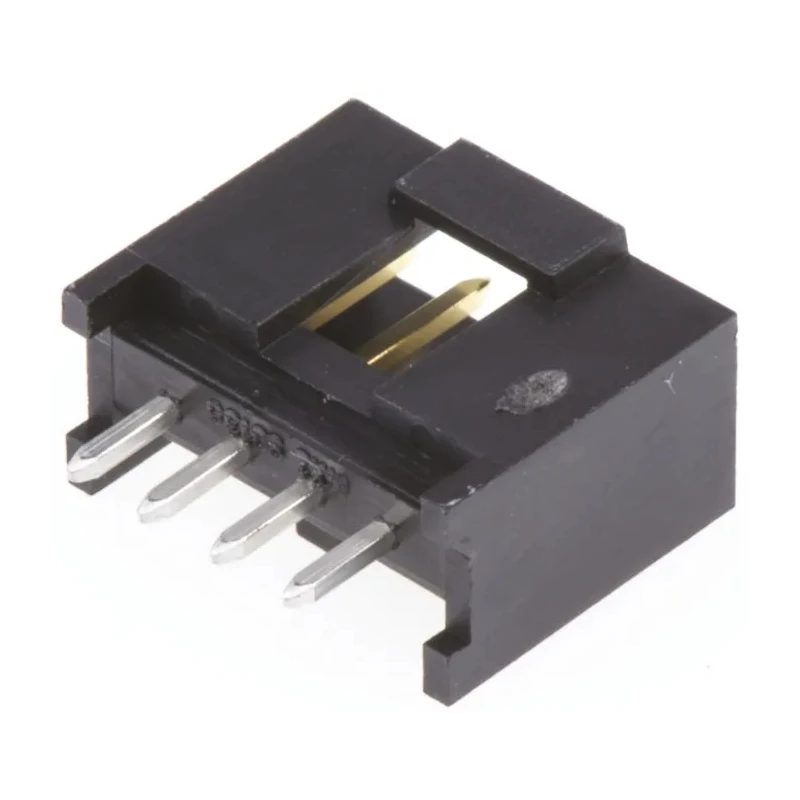

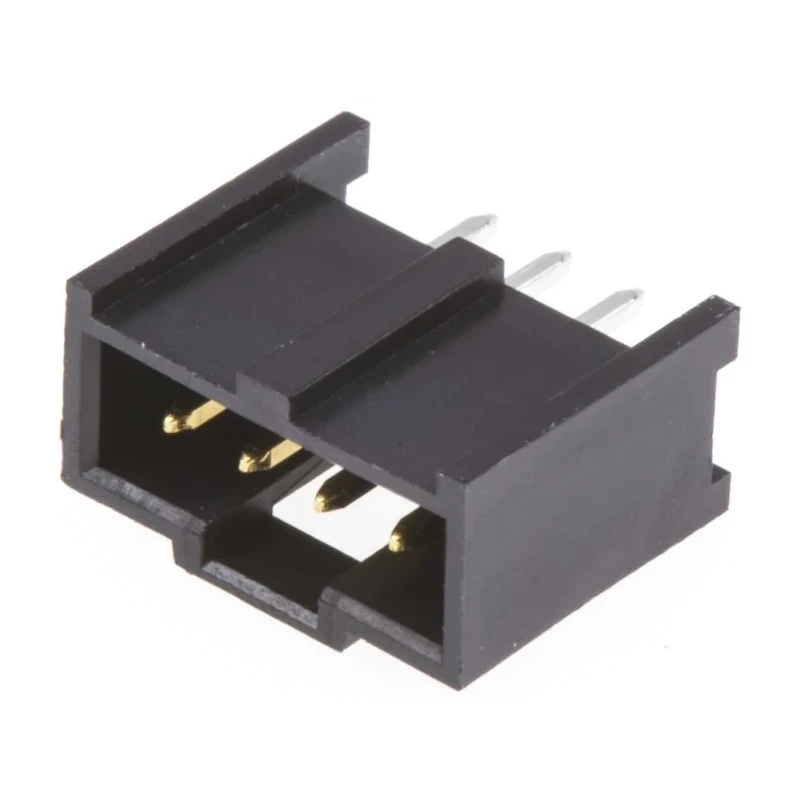

Molex C-Grid III Series Vertical Through Hole PCB Header, 4 Contact(s), 3A Current, 2.54 mm Pitch, 1 Row, Shrouded 90136-1204
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The shrouded, single-row vertical design enhances connection safety.
- Gold-plated brass contacts provide excellent conductivity and corrosion resistance.
- Compatible with through hole mounting for strong PCB attachment.
- Operates efficiently in temperatures from -55°C to 125°C.
- Rated for up to 350V voltage applications.
- Tail pin length of 2.9 mm and mating pin length of 6.75 mm ensure secure mating.
- Suitable for automation systems and electrical control panel interconnections.
- Ideal for telecommunications equipment and consumer electronics.
Product Description
Molex 90136-1204 C-Grid III Series Vertical Through Hole PCB Header is a high-quality electronic connector designed for wire-to-board applications. Featuring a 4-contact, single-row configuration with 2.54 mm pitch, this shrouded header is engineered for dependable connectivity in industrial and commercial electronic systems.
The header's brass contacts are gold-plated, ensuring excellent conductivity and resistance to corrosion. It supports a current rating of 3A and a voltage rating up to 350V, making it versatile for various signal and low power applications. Operating safely within -55°C to 125°C, it can withstand demanding environmental conditions.
The through-hole mount type and vertical orientation make it straightforward to integrate into circuit boards. Tail pin length is 2.9 mm and mating pin length is 6.75 mm, engineered to provide solid, secure mating across connections. The shrouded design enhances safety by protecting the contacts from accidental short circuits or damage.
This PCB Header is commonly used in automation systems, electrical control panels, telecommunications equipment, and consumer electronics where reliable and safe signal connections are essential. It complies with DIN 41651 standards, assuring industry compatibility and performance.
The shrouded design improves connection reliability and user safety. Gold-plated brass contacts ensure excellent electrical performance. Rated for 3A current and 350V voltage applications. Operating temperature range of -55°C to 125°C supports harsh environments.
Through hole mount with vertical orientation allows easy PCB integration. Single row with 4 contacts and 2.54 mm pitch configuration. Conforms to DIN 41651 standards for quality and reliability. Simplifies signal connections in automation and telecommunication applications.
Robust pin lengths ensure secure mating and longevity. Explore our extensive range of PCB connectors and headers to find compatible components for your electronics projects and industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A, making it suitable for various signal and low power applications.
It is rated for voltage applications up to 350V, allowing for versatile use in different electronic systems.
The contact pitch for this header is 2.54 mm, which is a standard size for many PCB connections.
It operates efficiently within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This unit utilizes a through-hole mounting type, which provides strong attachment to the PCB.
It features 4 contacts in a single-row configuration, designed for reliable connectivity.
The contacts are made of brass with gold plating for excellent conductivity, while the housing is made of polyester.
The tail pin length is 2.9 mm, ensuring secure mating with compatible connectors.
The mating pin length is 6.75 mm, which helps in establishing a solid connection.
This model is shrouded, which enhances connection safety by protecting the contacts from accidental short circuits or damage.
It is suitable for automation systems, electrical control panels, telecommunications equipment, and consumer electronics.
Yes, it complies with DIN 41651 standards, assuring compatibility and performance in industry applications.
