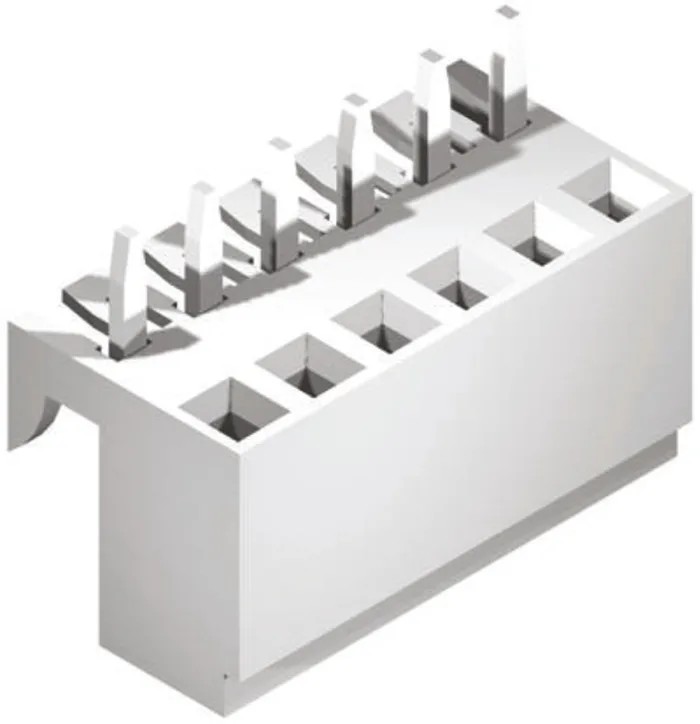

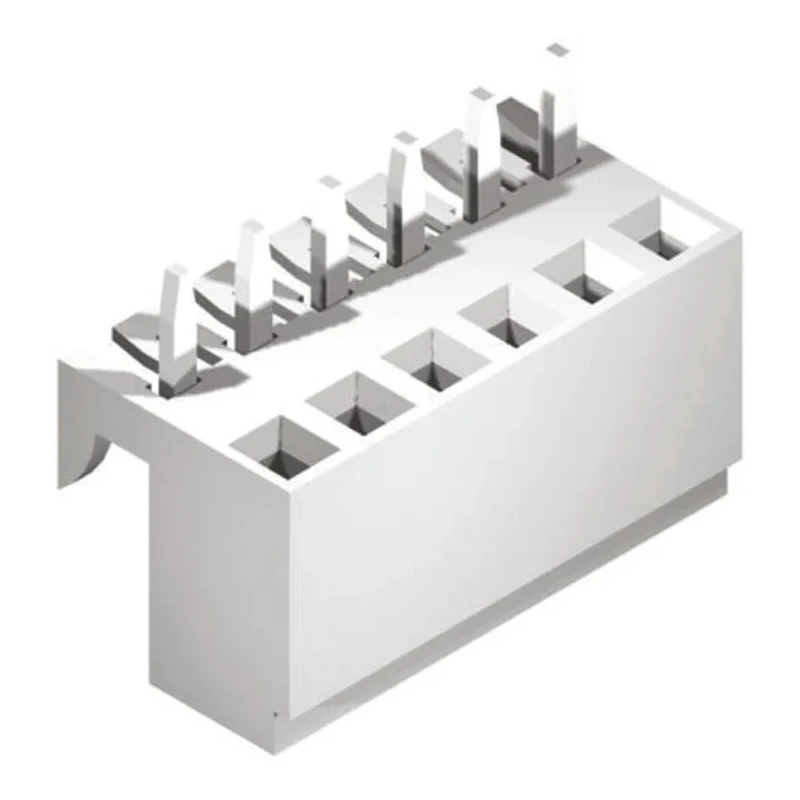

Molex KK 254 Series Straight Through Hole PCB Socket, 10-Contact, 1 Row, 2.54 mm Pitch, 2.5A Current, Nylon 38-00-1400
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- It features 10 female contacts in a single row configuration.
- The pitch between contacts measures 2.54 mm, suitable for standard PCB layouts.
- The housing is made of durable nylon material ensuring insulation and mechanical strength.
- Termination is through-hole solder type for reliable PCB mounting.
- The socket supports a current rating of 2.5A and voltage rating of 250V.
- Operating temperature ranges from -40°C to 105°C for varied environmental conditions.
- Contacts are made of bronze with tin plating for corrosion resistance and conductivity.
- Designed for KK 254 series pin headers for secure mating.
Product Description
Molex 38-00-1400 KK 254 Series Straight Through Hole PCB Socket is a high-quality connector designed for electronic applications requiring reliable board-to-board signal connections. Featuring a single row of 10 female contacts, this socket provides a 2.54 mm pitch compliant with industry-standard PCB layouts and ensures excellent electrical performance with a current rating of 2.5A and voltage rating of 250V.
The connector housing is crafted from robust nylon material, providing excellent electrical insulation and mechanical stability. The termination type is solder, designed for through-hole PCB mounting which guarantees secure and durable connections. Suitable for a wide operating temperature range from -40°C to 105°C, this connector is built to withstand challenging thermal conditions common in industrial, manufacturing, and laboratory environments.
Contact components are fabricated from bronze and plated with tin to enhance conductivity and resist corrosion over time. The straight orientation facilitates easy mating with KK 254 series pin headers, making this product ideal for use in various electronic assemblies including communication devices, instrumentation, and control systems.
This product finds application extensively in electronics manufacturing, industrial control panels, HVAC systems, and other commercial electronic equipment requiring robust and precise PCB interconnections.
10 female contacts in a single row layout enable compact and reliable connections. Standard 2.54 mm pitch suited for most PCB designs enhances compatibility. Nylon housing offers high durability and electrical insulation.
Through-hole solder termination ensures solid PCB mounting. Supports up to 2.5A current and 250V voltage ratings. Wide operating temperature range from -40°C up to 105°C facilitates varied applications. Bronze contacts with tin plating provide excellent conductivity and corrosion resistance.
Designed to mate with KK 254 series pin headers for optimal performance. Settle your electronic component needs with Molex KK 254 Series PCB Sockets available at EnvMart, catering to industrial, electrical, and electronics assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex KK 254 Series PCB socket supports a current rating of 2.5A.
It has a voltage rating of 250V, making it suitable for various electronic applications.
The pitch between the contacts measures 2.54 mm, which is standard for most PCB layouts.
This socket features 10 female contacts arranged in a single row configuration.
The housing is made from nylon, while the contacts are fabricated from bronze and plated with tin for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -40°C to 105°C.
This model uses a through-hole solder termination type for secure PCB mounting.
Yes, it is designed for board-to-board signal connections, making it suitable for various electronic assemblies.
The orientation of this socket is straight, facilitating easy mating with compatible pin headers.
This socket is extensively used in electronics manufacturing, industrial control panels, and HVAC systems among other commercial electronic equipment.
The country of origin for this PCB socket is India.
It belongs to the board-to-board, signal connector system category.
