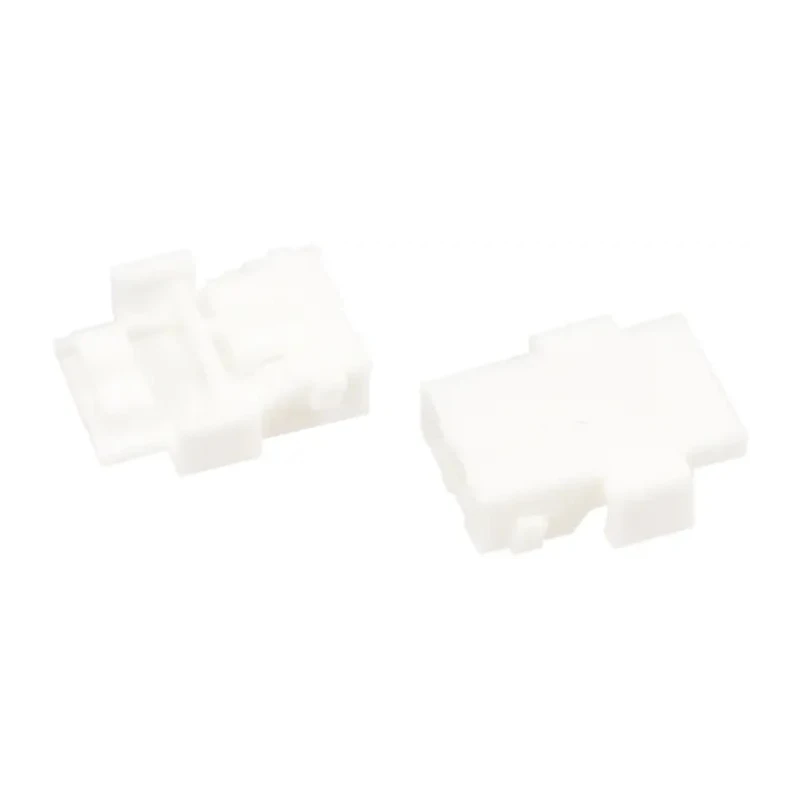

Hirose DF59 Female Connector Housing 2 mm Pitch 4 Way 1 Row Straight DF59
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 11.2mm |
| Model | DF59 |
| Width | 8.15mm |
| Mount Type | PCB |
| Housing Material | Liquid Crystal Polymer |
| Series | DF59 |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | DF59 Series Contact |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- The housing features a 2 mm pitch with 4 contacts in a single row configuration.
- Constructed from durable liquid crystal polymer material ensuring high performance.
- Incorporates a swing lock mechanism with both positive and friction locks for secure mating connection.
- Designed for use with DF59 Series contacts and provides a low profile mated height of 2.48 mm.
- Suitable for LED lighting, power supplies, battery connections, and small DC motor drives.
- Operating temperature capability up to 105°C for reliable industrial performance.
- Compact size with dimensions of 11.2 mm length and 8.15 mm width for tight space applications.
- Connector gender female and mount type PCB straight orientation enhances versatility.
Product Description
Hirose DF59 Female Connector Housing model DF59 is engineered for reliable electrical connections in PCB applications with a 2 mm pitch and 4-way, 1-row female connector configuration.
This connector housing uses liquid crystal polymer for excellent durability and features a compact, space-saving design that supports efficient use of PCB real estate. It includes a unique swing lock mechanism that ensures secure engagement through both positive and friction locks, providing tactile feedback when properly mated.
The low profile mated height of 2.48 mm accommodates tight mechanical constraints in modern electronics. Designed specifically for DF59 Series contacts, this housing requires separate purchase of contacts to complete the assembly.
Applications include LED lighting systems, power supply modules, battery connections, and compact DC motor drives, where reliable, high-density connector solutions are critical. The connector is rated for operation up to 105°C, suitable for industrial and commercial environments.
The compact design reduces space requirements on densely populated PCBs. Positive swing-lock engagement secures the connector against cable pull and mechanical stresses. Floating board-to-board functionality allows ±0.5 mm movement in XYZ directions, reducing contact stress and compensating for thermal expansion.
The robust locking mechanism prevents accidental disconnection under severe wiring conditions. Precision manufacturing and quality materials ensure long-lasting performance in demanding applications.
The packaging and order include the female connector housing only; contacts are sold separately to allow customized wiring configurations. This product is engineered by Hirose, guaranteeing trusted quality and industry compliance.
Explore EnvMart for a wide range of Connector Housings and electronic components from leading brands like Hirose to find integrated solutions for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF59 Female Connector Housing features a 2 mm pitch with a 4-way, 1-row configuration.
This connector housing is rated for operation up to 105°C, making it suitable for industrial applications.
The dimensions of this connector housing are 11.2 mm in length and 8.15 mm in width, designed for compact applications.
The housing is constructed from liquid crystal polymer, ensuring durability and high performance.
It incorporates a swing lock mechanism that utilizes both positive and friction locks to ensure a secure mating connection.
It is suitable for applications such as LED lighting systems, power supplies, battery connections, and small DC motor drives.
The DF59 connector housing is designed for PCB mounting in a straight orientation.
This model is specifically designed for use with DF59 Series contacts, which must be purchased separately.
The connector gender of this housing is female, designed for secure connections on PCBs.
Yes, it features floating board-to-board functionality that allows for ±0.5 mm movement in XYZ directions to reduce contact stress.
The low profile mated height of this housing is 2.48 mm, accommodating tight mechanical constraints.
The country of origin for this connector housing is India.
