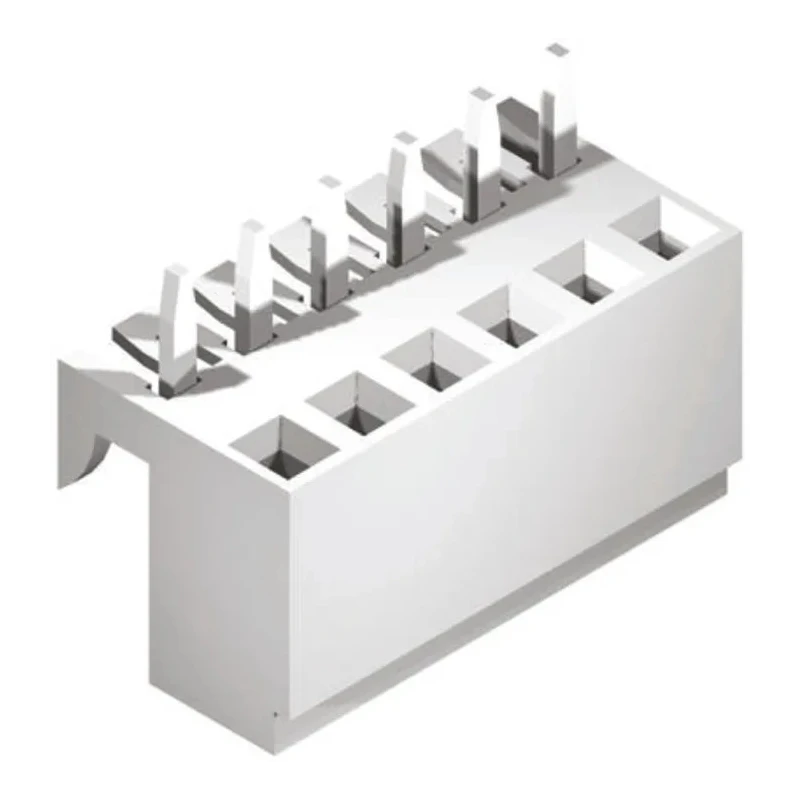

Molex KK 254 Series Straight Through Hole PCB Socket 4-Contact 1 Row 2.54 mm Pitch Solder 22-14-2044
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- The socket is made with nylon housing for durability and stability.
- Rated for 2.5A current and 250V voltage operation.
- Designed with female brass contacts plated with tin for reliable connectivity.
- Through hole mounting and straight orientation ensure easy PCB integration.
- Operates reliably between -40°C to 105°C temperature range.
- Connector system supports board-to-board signal connections.
- This component is manufactured in Mexico to high quality standards.
- Part of the KK 254 series, compatible with matching KK pin headers.
Product Description
Molex 22-14-2044 KK 254 Series Straight Through Hole PCB Socket is a precision 4-contact socket strip designed for through-hole PCB mounting with a 2.54 mm pitch, ensuring accurate and durable electrical connections in electronic assemblies.
Its nylon housing provides excellent mechanical strength while maintaining lightweight properties, suitable for industrial and commercial electronic applications. The socket supports up to 2.5A current and 250V voltage, making it reliable for signal and low power board-to-board connections.
The contacts are female, constructed from brass with tin plating, enhancing corrosion resistance and electrical conductivity for long-term reliability. The straight orientation and through-hole mount type allow straightforward integration into conventional PCB designs, aiding manufacturing efficiency.
This socket operates effectively across a broad temperature range from -40°C to 105°C, suitable for diverse environmental conditions encountered in industrial and laboratory equipment.
The KK 254 series is widely utilized in electronics manufacturing, and this socket mates with KK pin headers, supporting modular connector system design approaches in prototypes and production runs.
The socket includes 4 contacts arranged in a single row with 2.54 mm pitch. Housing is made of durable nylon for stability and insulation. Contacts are brass with tin plating for reliable conductivity. Supports 2.5A current and 250V operating voltage.
Designed for through-hole mounting with straight orientation. Operating temperature from -40°C to 105°C for wide usability. Connector system supports board-to-board signal connectivity. Manufactured in Mexico with assured quality standards.
This M0lex PCB Socket is ideal for industrial, laboratory, manufacturing, and electronic assembly applications requiring durable, secure connector interfaces. Its compatibility with standard KK series headers facilitates flexible system design.
Explore more electronics connectors and components to complement this product at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 2.5A.
It has a voltage rating of 250V, making it suitable for low power applications.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made of nylon, while the contacts are brass with tin plating for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -40°C to 105°C.
This socket features a total of 4 contacts arranged in a single row.
It is designed for through-hole mounting, allowing for straightforward integration into PCBs.
The socket has a straight orientation, which facilitates easy PCB layout.
Yes, it is compatible with matching KK pin headers, supporting modular connector system designs.
This model supports board-to-board signal connections, making it suitable for various electronic applications.
It is manufactured in Mexico, adhering to high quality standards.
This socket utilizes solder termination for secure electrical connections.
