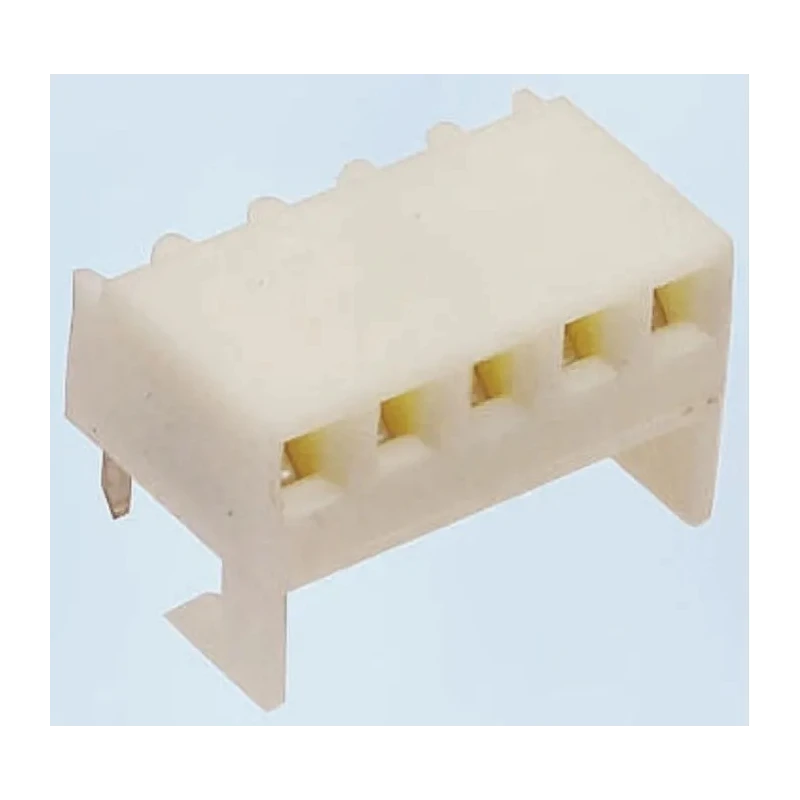

Molex KK 254 Series Right Angle Through Hole PCB Socket 5-Contact 1 Row 2.54 mm Pitch 250V 2.5A 22-15-2056

Free Delivery in India | Lowest Global Shipping Charges

Molex KK 254 Series Right Angle Through Hole PCB Socket 5-Contact 1 Row 2.54 mm Pitch 250V 2.5A 22-15-2056

Name: Molex KK 254 Series Right Angle Through Hole PCB Socket 5-Contact 1 Row 2.54 mm Pitch 250V 2.5A 22-15-2056
Brand: Molex
SKU: 206647
Price: 0.72 USD
Availability: InStock



Category PCB Socket Brand Molex Condition New

Specifications

Country of Origin	Mexico
Voltage	250V
Brand	Molex
Orientation	Right Angle
Current	2.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Female
Connector System	Board-to-Board, Signal

Key Features

Constructed from UL94 V-0 Nylon housing for high durability and fire resistance.
Brass contacts plated with tin ensure excellent conductivity and corrosion resistance.
Provides 250V rated voltage and 2.5A current capacity for moderate power applications.
Features right angle orientation and through-hole mount for versatile PCB integration.
Operates reliably between -40°C to 105°C for wide temperature tolerance.
Designed as a socket strip with female contact gender for signal transmission.
Suitable for industrial and electronic equipment requiring secure board connections.

Product Description

The Molex 22-15-2056 is a KK 254 Series Right Angle Through Hole PCB Socket designed for electronic and industrial applications requiring dependable connection solutions. Featuring a 5-contact, 1-row configuration with a 2.54 mm pitch, it provides board-to-board and signal connector system compatibility operating at 250 volts and a current capacity of 2.5 amps.

Its housing is made from UL94 V-0 rated nylon, ensuring flame retardancy and long-lasting robustness under demanding conditions. The contacts utilize brass material with tin plating to optimize electrical conductivity while minimizing corrosion, enhancing longevity and reliability in usage.

This PCB socket comes with a right angle orientation and a through-hole mount type, facilitating efficient assembly and soldering on printed circuit boards. Its female contact gender design supports flexible signal interfacing and connection stability.

The product operates effectively within a temperature range of -40°C to 105°C, enabling broad environmental adaptability from industrial manufacturing to laboratory settings. It does not bear specific approvals, but is engineered to fulfill standard performance requirements across electronic assemblies.

Durable UL94 V-0 nylon housing delivers excellent safety and mechanical strength. Brass, tin-plated contacts balance conductivity and protection against oxidation. Right angle orientation optimizes PCB layout space and accessibility.

Through-hole mounting ensures secure and reliable solder joint connections. 5-pin, single-row design with 2.54 mm pitch fits varied connector applications. Rated up to 250 volts and 2.5 amperes for moderate electrical loads.

Wide operating temperature range supports use in diverse industrial environments.

This Molex PCB Socket is ideal for electronic assembly, industrial control systems, communication devices, and other commercial electronics requiring dependable PCB connection solutions. Its precise design supports ease of manufacturing and robust operational performance.

Explore more PCB components and connectors in the Electronics & Electricals category at EnvMart to meet all your electronic assembly needs.
