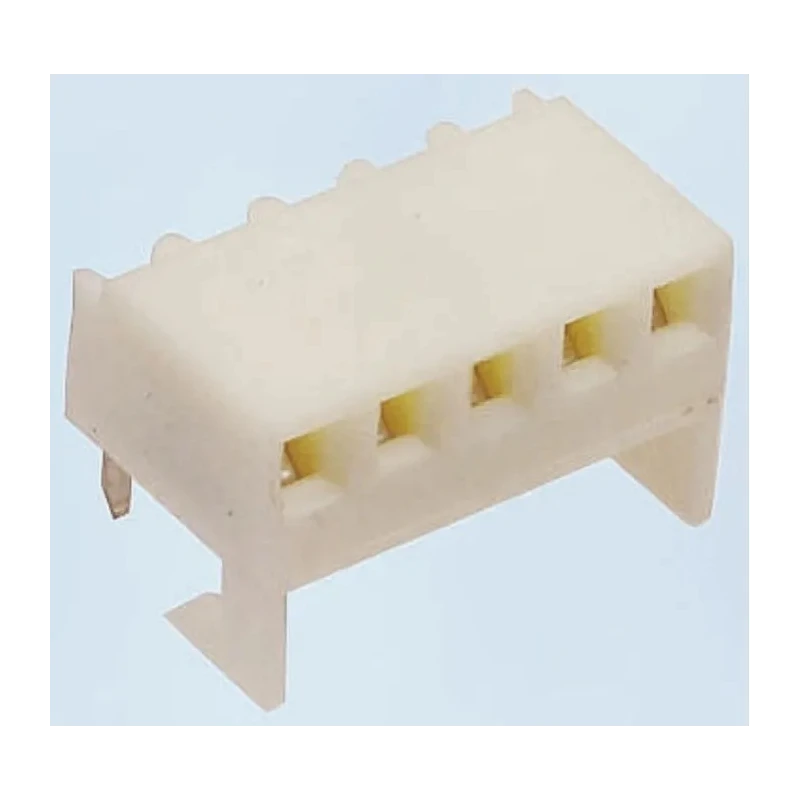

Molex KK 254 Series Right Angle Through Hole PCB Socket, 5-Contact, 1 Row, 2.54 mm Pitch, 250V, 2.5A Brass 22-15-2056
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Right angle through hole mounting provides secure PCB attachment.
- Constructed with nylon housing material rated UL94 V-0 for flame retardancy.
- Current rated at 2.5A with maximum voltage of 250V suitable for signal and board-to-board connections.
- Brass contact material with tin plating ensures reliable conductivity and corrosion resistance.
- Operating temperature range from -40°C to 105°C accommodates diverse environmental conditions.
- Designed as part of the KK 254 series supporting consistent quality and interchangeability.
- Female contact gender suitable for mating with male PCB headers.
- Termination type is solder for durable and stable electrical contact.
Product Description
Molex 22-15-2056 is a right angle through hole PCB socket from the KK 254 series, featuring a 5-contact, single row layout with a 2.54 mm pitch. It is designed for board-to-board signal connection systems, rated at 2.5A current and 250V voltage. The connector is built with UL94 V-0 nylon housing providing excellent flame resistance and durability.
The contacts are made of brass with tin plating ensuring reliable conductivity and corrosion protection. This socket is engineered for solder termination to secure mounting on printed circuit boards. Its right angle orientation facilitates component mounting in space-constrained layouts.
Operating conditions range from a minimum temperature of -40°C to a maximum of 105°C, allowing use in various industrial and commercial environments. The female contact gender enables connectivity with corresponding male pins, forming stable electrical interfaces.
This product, manufactured in Mexico, complies with industrial quality standards and is ideal for electronics manufacturing, assemblies, prototyping, and repair applications. It supports board-to-board and signal transmission use cases in electronics and electrical systems.
Right angle through hole PCB socket for secure board attachment. Nylon UL94 V-0 housing assures flame retardant construction. Supports 2.5A current at 250V suited for signal applications. Brass contacts plated with tin for conductivity and corrosion resistance.
Wide operating temperature range from -40°C to 105°C. Female contact gender for compatibility with male headers. Solder termination provides durable electrical connection. Manufactured in Mexico ensuring consistent quality.
Explore more PCB Sockets and connectors in the Electronics Components category on EnvMart for comprehensive solutions.
