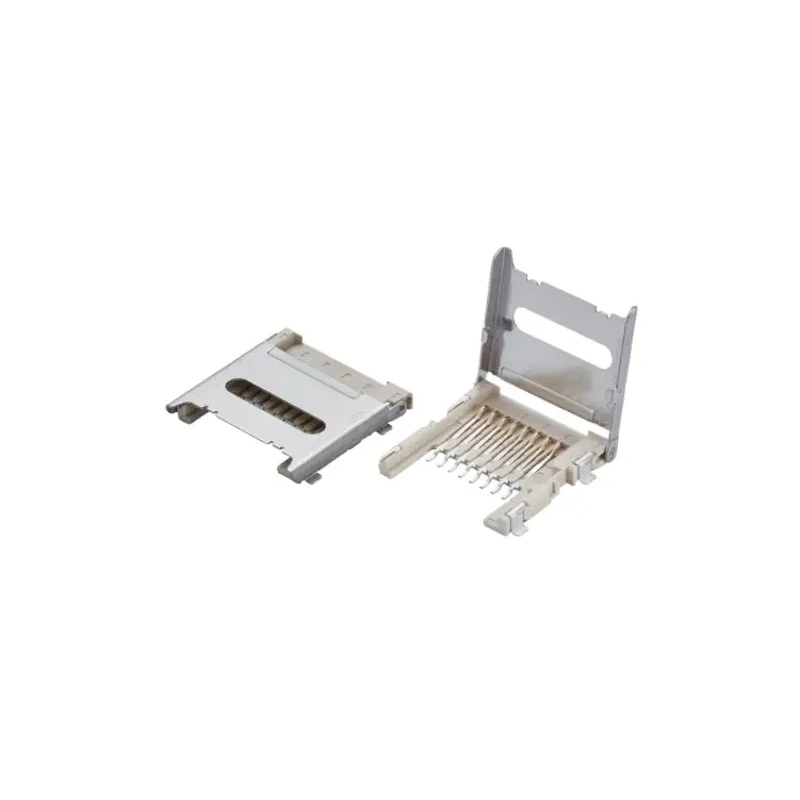

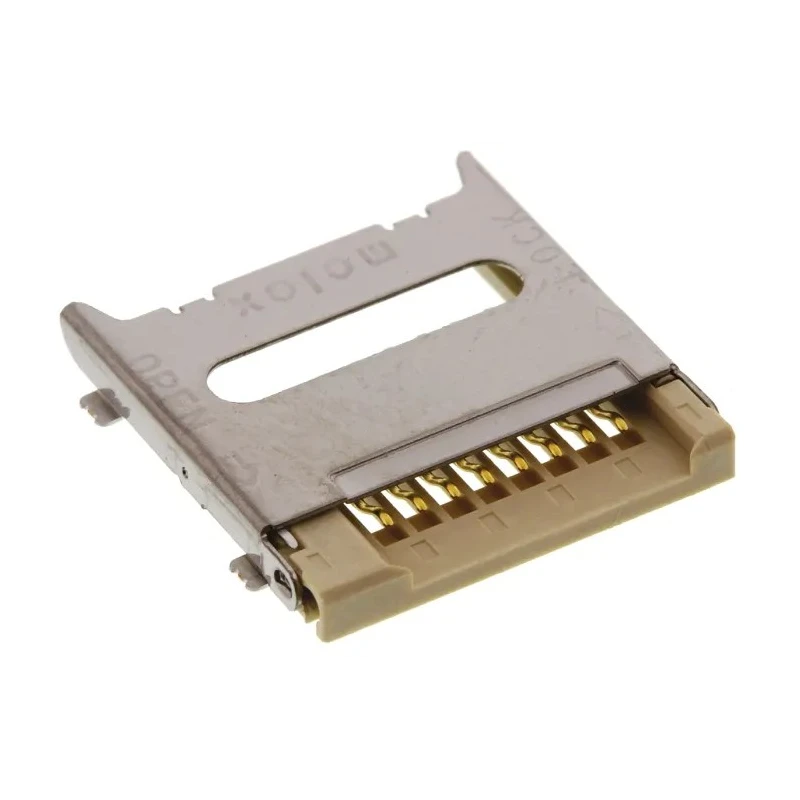

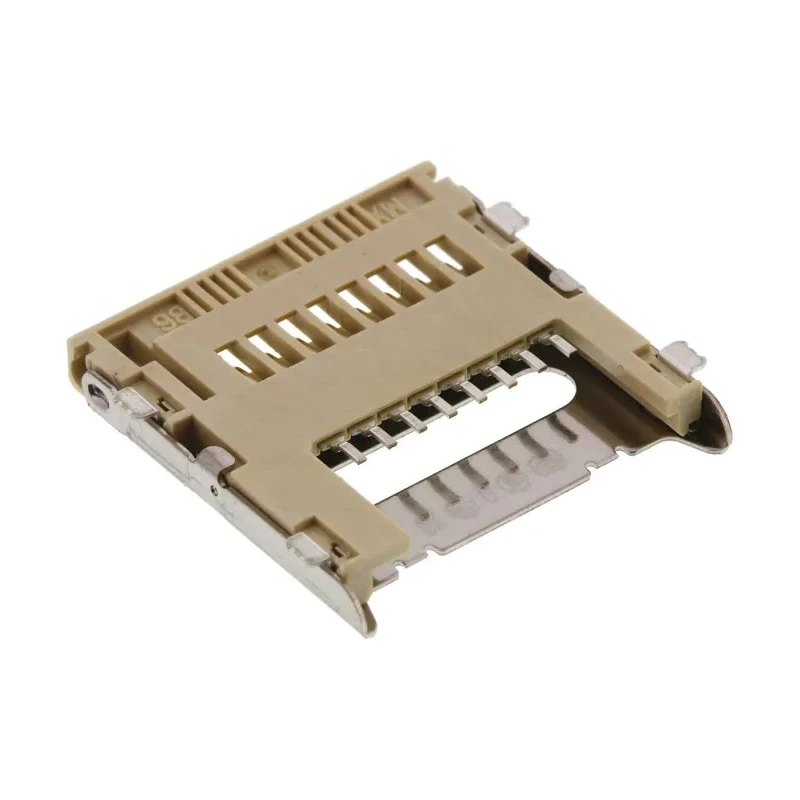

Molex 8 Way Right Angle Hinged MicroSD Memory Card Connector, Solder 500901-0801

Molex 500901-0801 8 Way Right Angle Hinged MicroSD Memory Card Connector is a high-quality memory card connector specifically engineered for MicroSD card interfaces.

This connector features a unique hinged mechanism facilitating easy card insertion and removal while maintaining robust contact reliability. The right angle orientation supports compact PCB designs from space-critical applications in handheld and embedded devices.

Contacts are made from phosphor bronze with gold over nickel plating to provide superior electrical conductivity and corrosion resistance. The liquid crystal polymer housing offers high mechanical strength and excellent heat resistance for demanding industrial conditions.

The connector supports surface mount soldering technology, enhancing assembly efficiency and mechanical stability. It operates effectively across a wide temperature spectrum from -25°C to +85°C, suitable for environments ranging from automotive to industrial automation.

Electrical specifications include a 0.5A maximum current per contact and up to 1,000 mating cycles, ensuring reliability over long-term use. The product also includes PCB retention features for secure mounting within assemblies.

This connector is ideal for applications in handheld devices requiring expandable memory, automotive electronic systems demanding dependable interfaces, consumer electronics for data storage, and industrial automation systems where space saving and robust connections are essential.

The hinged design allows easy insertion and removal of MicroSD cards. Right angle orientation optimizes space in compact assemblies. Phosphor bronze contacts plated with gold over nickel ensure high conductivity. Liquid crystal polymer housing provides durability and thermal resistance.

Supports surface mount technology for assembly efficiency. Operating temperature range from -25°C to 85°C suits diverse environments. Maximum current capacity of 0.5A per contact for safe power transfer. Designed for 1,000 mating cycles ensuring longevity.

PCB retention ensures secure mounting during operation. Widely used in handheld, automotive, consumer electronics, and industrial automation sectors. Explore the extensive range of Memory Card Connectors and high-performance electronic components available at EnvMart for your design and manufacturing needs.
