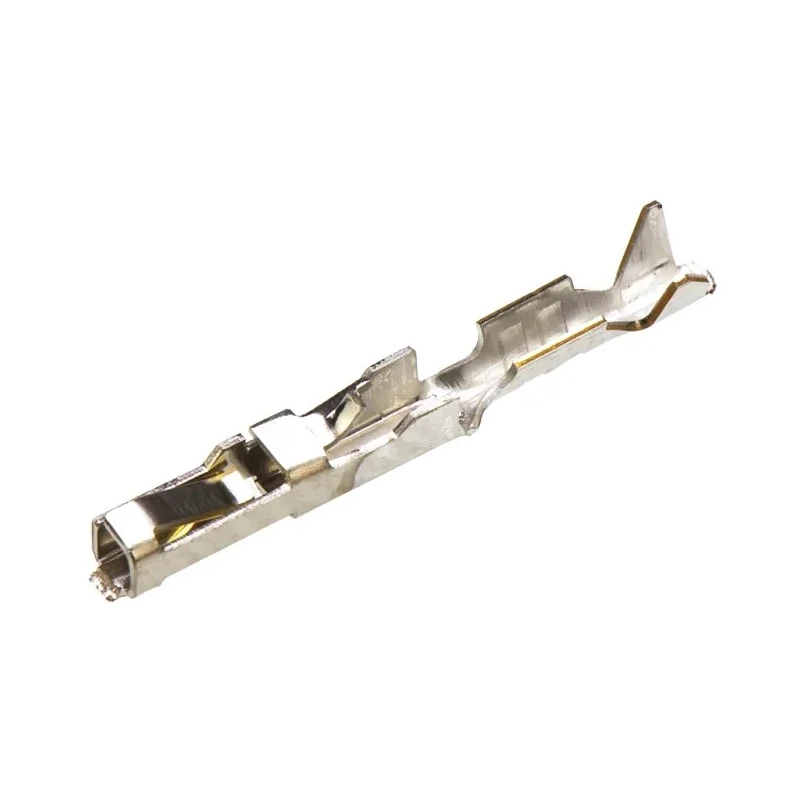

Molex 90119 Series Female Crimp Terminal for 28 AWG to 26 AWG Wire, Gold Plated, Phosphor Bronze, Crimp Type 90119-0121

Molex 90119-0121 is a female crimp terminal designed for secure and reliable connections in electronic and electrical assemblies. Suitable for wire sizes ranging from 28 AWG minimum to 26 AWG maximum, this crimp terminal forms a stable connection utilizing high-quality phosphor bronze material. The gold plating over the contact provides excellent protection against rust and oxidation, ensuring long-term dependable performance.

Intended for use with C-Grid III connector housings, this terminal features a crimp termination type for efficient wire adhesion and connection stability. It supports a current rating of 3 amperes and a working voltage of up to 350 volts AC/DC, making it suitable for low-voltage electrical applications.

Operating reliably in temperatures from -55°C to 105°C, the terminal is well suited for demanding industrial, commercial, and consumer electronics contexts. Its contact resistance is rated at a low 20 milliohms, promoting stable signal transmission, while a contact retention force of 15 Newtons ensures the wire remains securely attached under vibration or motion.

Key material components include a phosphor bronze contact with selective gold plating and a crimp type termination style. The terminal weighs approximately 0.73 grams, making it easy to handle and install without adding significant weight to assemblies.

This terminal finds application in consumer electronics, industrial and commercial vehicles, and personal computer manufacturing, offering versatility as a dependable crimping solution within the Molex 90119 series.

Durable phosphor bronze contact provides mechanical strength. Selective gold plating safeguards against corrosion and oxidation. Crimp termination type enables secure wire connections. Compatible with C-Grid III connector housings.

Supports 3A current and 350V operating voltage. Wide operating temperature range from -55°C to 105°C. Low contact resistance of 20 milliohms ensures signal integrity. Strong retention force of 15N for reliable contact security.

Lightweight design facilitates easy handling and assembly. Suitable for industrial, commercial, and consumer electronics applications. Explore the Molex product range and similar crimp terminals on EnvMart for quality and reliability in electronics manufacturing.
