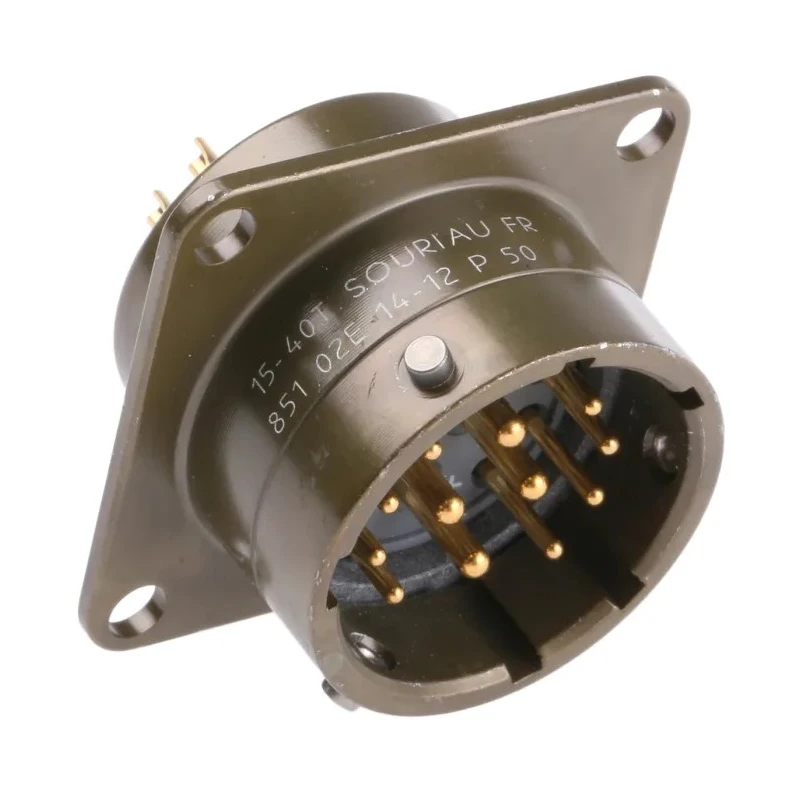

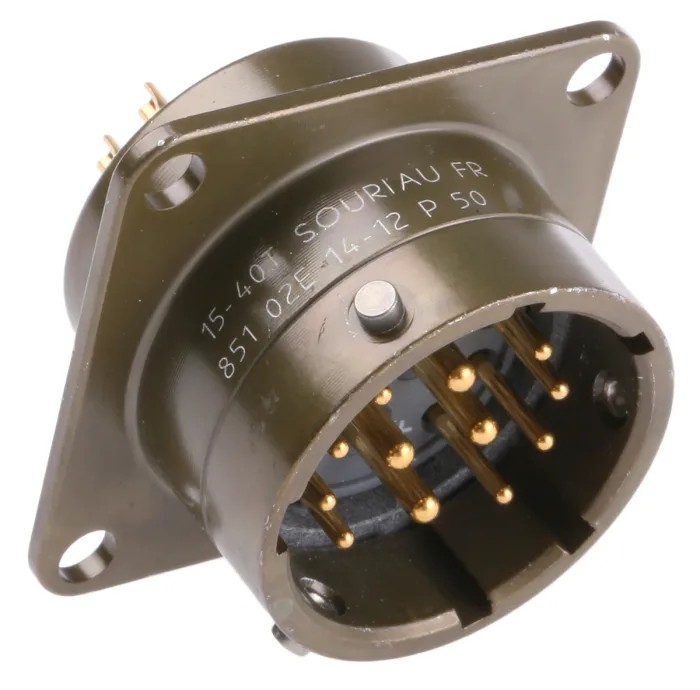

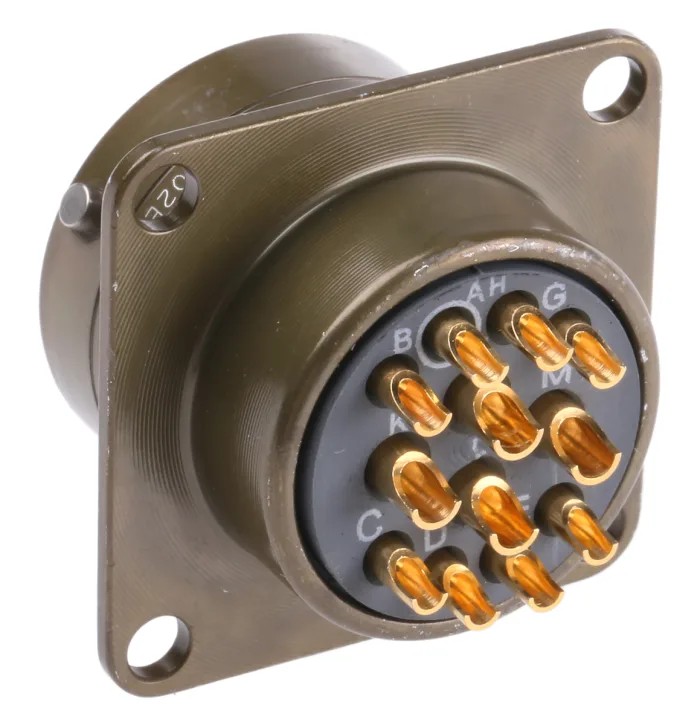

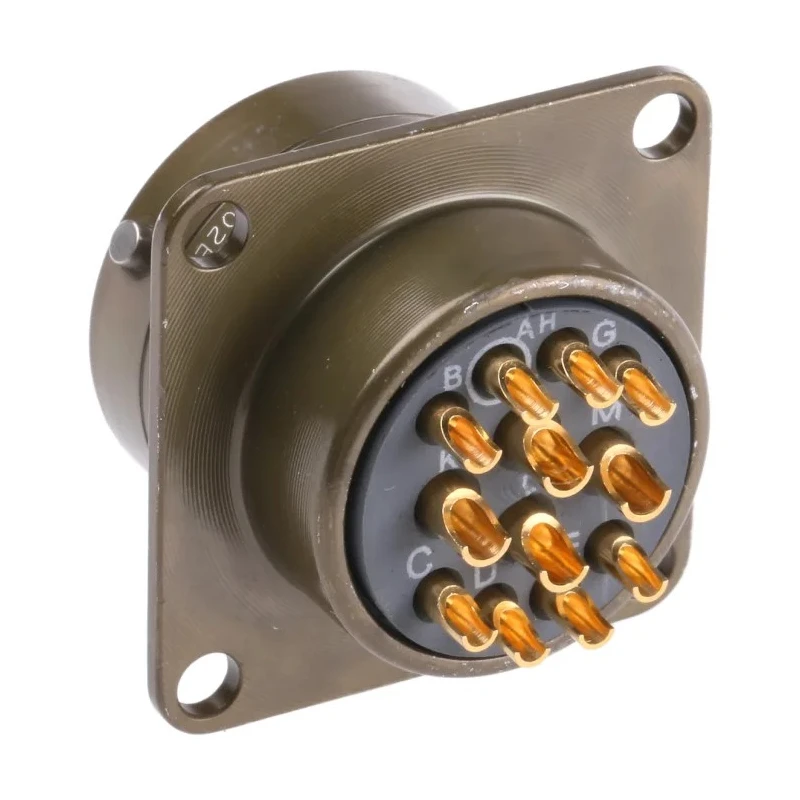

Souriau Sunbank by Eaton Copper Alloy Straight 12 Way Panel Mount MIL Spec Circular Connector 500V 13A 85102E1412P50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 13A |
| Model | 85102E1412P50 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
| Meets applicable national and international standards and specifications | NFC 93422 |
Key Features
- Features 12 male contacts suitable for panel mount installation.
- Operates at a voltage rating of 500V and current of 13A.
- Constructed with copper alloy contacts plated with gold for reliable conductivity.
- Shell size 14 with olive drab cadmium plating ensures durability and corrosion resistance.
- Designed with a straight orientation and bayonet mating type for secure connection.
- Termination is by solder, compatible with 24 to 14 AWG cables.
- Meets MIL-DTL-26482 military standard and rated IP65 for environmental protection.
- Temperature range from -55°C to 125°C supports extreme operating conditions.
Product Description
Souriau Sunbank by Eaton 85102E1412P50 MIL Spec Circular Connector 12 Way is a premium panel mount connector engineered for robust industrial and military applications. Featuring copper alloy contacts with gold plating and an olive drab cadmium plated shell, this connector delivers superior performance and corrosion resistance.
The 851 series connectors are widely utilized across aerospace, electronics, instrumentation, transport, and industrial automation industries for reliable power and signal transmission. This model incorporates 12 contacts including 4 size 16 contacts designed for cable cross sections ranging from 0.21 to 1.91 mm², terminated via solder for secure connections.
With an IP65 ingress protection rating and MIL-DTL-26482 compliance, the connector ensures durability under harsh environmental conditions. It supports operating temperatures from -55°C up to 125°C and a voltage rating of 500V at 13A current capacity, making it suitable for demanding applications requiring rugged connectivity.
The straight orientation and bayonet mating type provide a secure and easy-to-use interface for panel mounting. This product meets international standards including NFC 93422 and MIL-C 26482G series 1 to facilitate global application requirements.
12 male contacts with gold plating for optimal conductivity. Panel mount type with shell size 14 and olive drab cadmium plating. Operating voltage of 500V and current rating of 13A. Bayonet mating type with solder termination for reliable cable connections.
IP65 rated for environmental protection including dust and water resistance. Operating temperature range from -55°C to 125°C. Compliant with MIL-DTL-26482 and relevant international standards. Ideal for aerospace, military, transportation, and industrial electronics applications.
Manufactured in France ensuring high quality and performance consistency. Explore the extensive range of Mil Spec Circular Connectors by Souriau Sunbank by Eaton on EnvMart for reliable, durable industrial connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 500V and a current rating of 13A.
This model features 12 male contacts.
It utilizes solder termination for secure connections.
The connector has an IP65 rating, providing protection against dust and water.
It supports an operating temperature range from -55°C to 125°C.
It is constructed with copper alloy contacts plated with gold and an olive drab cadmium plated shell.
The shell size is 14.
It features a bayonet mating type for secure connections.
Yes, it meets the MIL-DTL-26482 military standard.
It is manufactured in France.
This model is widely utilized in aerospace, military, transportation, and industrial electronics applications.
It meets applicable national and international standards, including NFC 93422.
