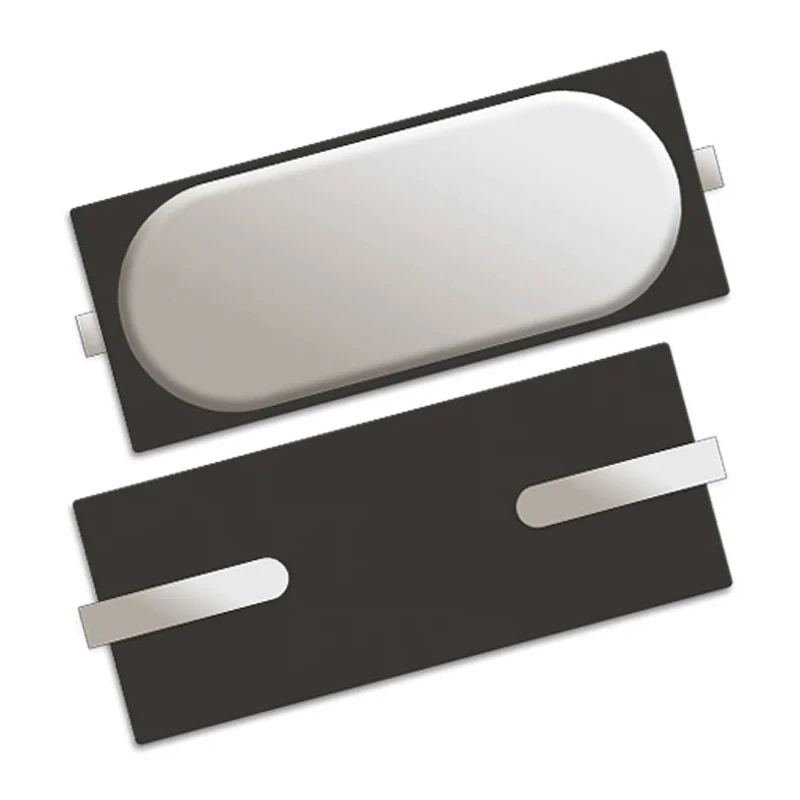

QANTEK 7.3728 MHz Crystal ±20 ppm HC-49 2-Pin Surface Mount 11.4 mm x 4.8 mm x 4.4 mm QCS7.37280F18B23R
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 4.4mm |
| Length | 11.4mm |
| Model | QCS7.37280F18B23R |
| Packaging | Tape & Reel |
| Width | 4.8mm |
| Mount Type | Surface |
| Series | QCS |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 7.3728MHz |
| Load Capacitance | 18pF |
| Series Resistance | 80Ω |
Key Features
- Standard frequency of 7.3728 MHz ensures accurate electronic timing.
- Surface mount design facilitates automated PCB assembly.
- Low series resistance of 80 Ω minimizes signal loss.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Compact HC-49 package with dimensions 11.4 mm length, 4.8 mm width, and 4.4 mm height.
- Load capacitance of 18 pF suitable for stable oscillator circuits.
- RoHS compliant for environmental safety and industry standards.
- 2-pin configuration compatible with common electronic applications.
Product Description
QANTEK QCS7.37280F18B23R 7.3728 MHz Crystal is a robust HC-49 package 2-pin surface mount oscillator component designed for precise frequency control in electronic circuits. It operates with a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm, ensuring accurate timing and signal consistency in specialized industrial and commercial electronics applications.
This crystal boasts an 80 Ω series resistance and an 18 pF load capacitance, making it well suited for oscillator circuits requiring stable and low-noise frequency generation. Its operating temperature range spans from -40°C to 85°C, providing reliable performance in diverse environments including industrial control systems, communication devices, and consumer electronics.
The compact HC-49 metal case measures 11.4 mm in length, 4.8 mm in width, and 4.4 mm in height, allowing space-efficient PCB layouts. Packaged in tape and reel, it supports automated pick-and-place assembly processes enhancing manufacturing efficiency.
Compliant with RoHS standards, this crystal aligns with environmental regulations, suitable for globally distributed electronic products. The product is manufactured in China under the QCS series.
Standard frequency of 7.3728 MHz ensures accurate electronic timing. Surface mount design facilitates automated PCB assembly. Low series resistance of 80 Ω minimizes signal loss. Operating temperature range from -40°C to 85°C for reliable performance.
Compact HC-49 package with dimensions 11.4 mm length, 4.8 mm width, and 4.4 mm height. Load capacitance of 18 pF suitable for stable oscillator circuits. RoHS compliant for environmental safety and industry standards. 2-pin configuration compatible with common electronic applications.
This QANTEK crystal unit is ideal for applications in industrial electronics, laboratory instruments, communication systems, consumer electronics, and other fields requiring exact oscillator frequencies. Its tape and reel packaging supports high-volume manufacturing processes.
Explore more precision electronic components in the Electronics Components section at EnvMart for your design and production needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 7.3728 MHz, ensuring accurate electronic timing.
This model has a load capacitance of 18 pF, making it suitable for stable oscillator circuits.
The HC-49 package measures 11.4 mm in length, 4.8 mm in width, and 4.4 mm in height.
It has a low series resistance of 80 Ω, which minimizes signal loss during operation.
The operating temperature range for this crystal is from -40°C to 85°C, allowing reliable performance in various environments.
This model is packaged in tape and reel, which supports automated pick-and-place assembly processes.
It utilizes a surface mount design, facilitating automated PCB assembly.
This crystal unit features a 2-pin configuration, compatible with common electronic applications.
Yes, the crystal is RoHS compliant, aligning with environmental regulations and industry standards.
This model is part of the QCS series, which is designed for precise frequency control in electronic circuits.
It is suitable for applications in industrial electronics, laboratory instruments, communication systems, and consumer electronics.
The crystal unit is manufactured in China, ensuring compliance with international standards.
