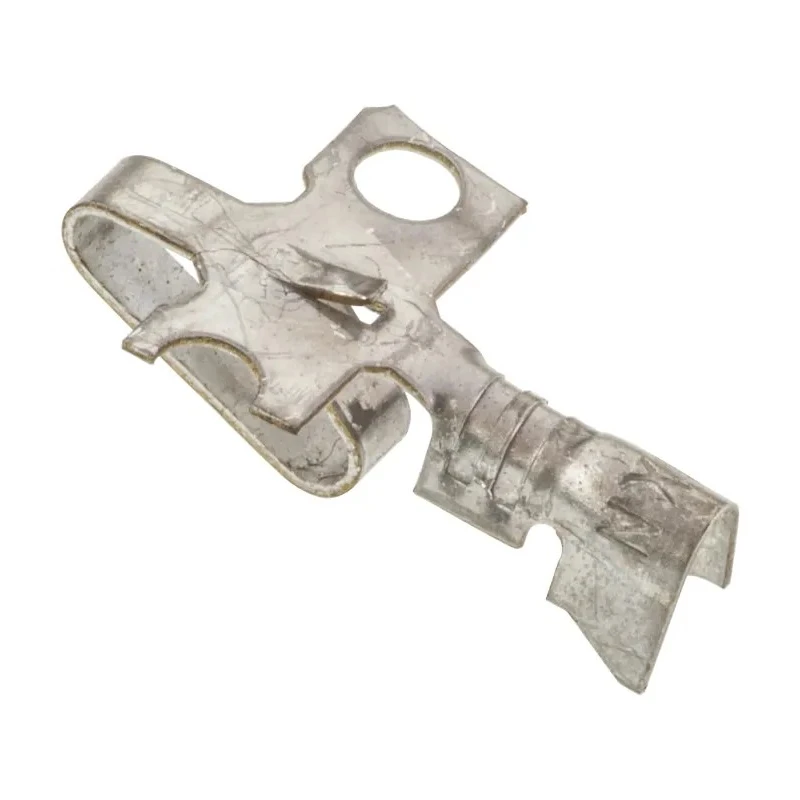

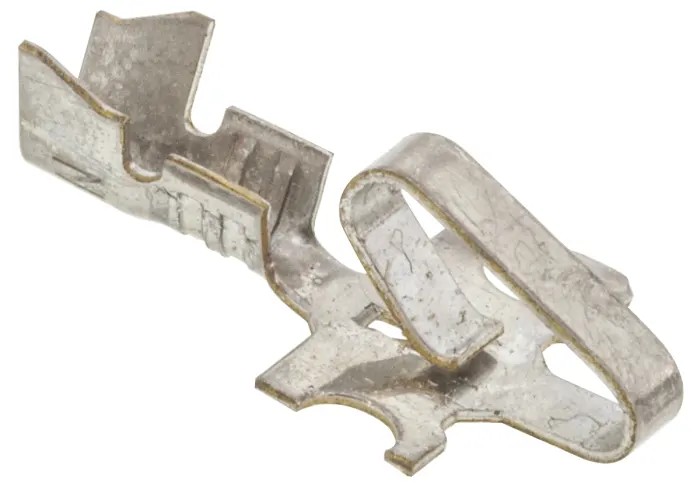

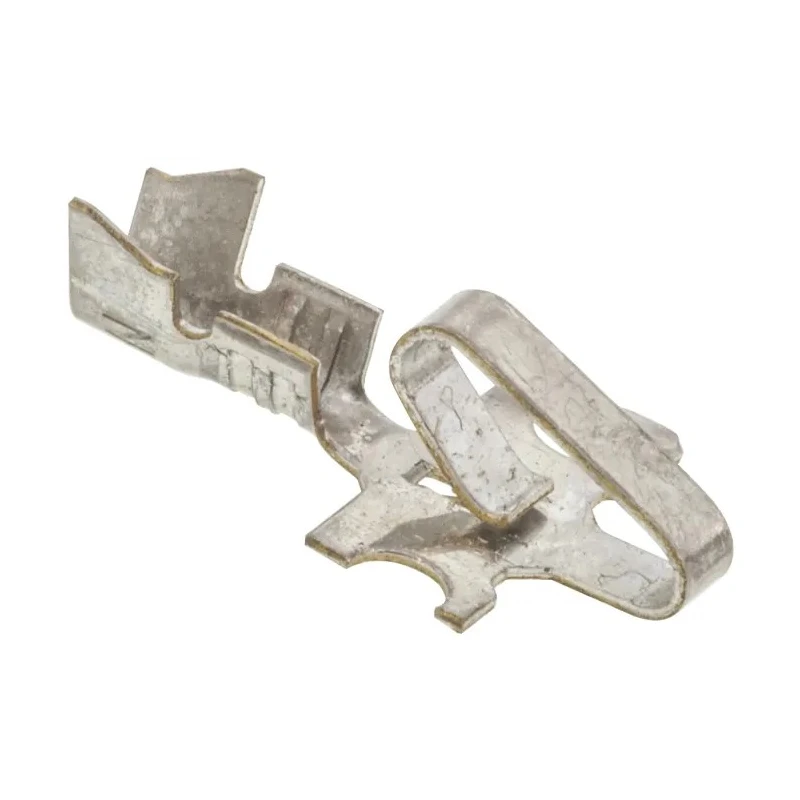

Molex 2478 Series Female Crimp Terminal 24 AWG Min, 18 AWG Max, Tin Plated Brass Contact 08-50-0105

Name: Molex 2478 Series Female Crimp Terminal 24 AWG Min, 18 AWG Max, Tin Plated Brass Contact 08-50-0105
Brand: Molex
SKU: 206527
Price: 0.17 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	5A
Gender	Female
Contact Material	Brass
Series	2478
Termination Type	Crimp
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10

Key Features

The terminal is constructed with brass contact material plated in tin for enhanced conductivity and corrosion resistance.
Designed to operate at a current rating of 5 amperes suitable for commercial and light industrial use.
Compatible with multiple Molex housings including 2139, 2574, 3069, 5239, 5265, 6422, and 41695 series for versatile application.
Operational temperature range from -40°C to 50°C enables usage in diverse environmental conditions.
Square post contact and dual cantilever design ensure stable and secure connection with male pin headers.
Crimp termination type provides airtight seals preventing moisture ingress and corrosion.
Mechanical locking tang prevents terminal back out after installation inside housing.
Suitable for automotive, consumer electronics, data communications, and networking applications.

Product Description

Molex 08-50-0105 female crimp terminal from the 2478 series is engineered for dependable connection to PCB or wire terminals sized between 24 AWG minimum and 18 AWG maximum. The tin plated brass contact offers improved conductivity and resistance to corrosion, making it ideal for electronic components in various industries.

This crimp terminal is rated for 5 amps of current and can be used in commercial and light industrial applications, functioning reliably within an operating temperature range of -40°C to 50°C. Its construction includes a dual cantilever design and a square post contact surface that maintains a spring-like contact with the male pin header for secure electrical connection.

The locking tang mechanism prevents terminal release once secured within the housing types 2139, 2574, 3069, 5239, 5265, 6422, and 41695, enhancing mechanical retention and connection reliability. The crimp termination provides an airtight seal that protects against moisture and debris, reducing corrosion risks over time.

Built without filler alloy, these crimp terminals provide a mechanically stronger bond to wires, which is critical for durability and performance. The product is suitable for automotive industry, consumer electronics, data communication and networking systems, where reliable wire termination is crucial.

Its compliance with low halogen content standards minimizes toxicity risks in case of exposure to fire or heat, making it safer for use in various environments. The Molex 2478 series female Crimp Terminal is a trusted choice for applications requiring precision and durability in connections involving 24 to 18 AWG wires.

The terminal uses tin-plated brass contact for enhanced conductivity and corrosion resistance. Compatible with multiple Molex housing series supporting a wide range of wire gauge applications. Rated for 5A current ensuring suitability for commercial and light industrial electrical systems.

Locking tang design secures the terminal firmly inside connector housings preventing accidental disengagement. Wide operational temperature range from -40°C up to 50°C increases application versatility. Crimp termination type delivers a strong, airtight mechanical and electrical bond between wire and terminal.

Designed for automotive, data communication, consumer electronics, and networking applications. Explore more Molex electronic components and connectors in the EnvMart catalog for your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This crimp terminal is rated for a current of 5 amperes, making it suitable for commercial and light industrial applications.

It accommodates wire sizes from 24 AWG minimum to 18 AWG maximum, which corresponds to 0.2 mm² to 0.8 mm².

The operational temperature range for this terminal is from -40°C to 50°C, allowing for use in diverse environmental conditions.

The terminal is constructed with brass contact material that is plated in tin, enhancing conductivity and corrosion resistance.

It is compatible with several Molex housing series including 2139, 2574, 3069, 5239, 5265, 6422, and 41695.

The crimp termination type provides an airtight seal that prevents moisture ingress and reduces corrosion risks, ensuring a strong mechanical and electrical bond.

It features a square post contact and a dual cantilever design, which maintain a spring-like contact with male pin headers for a secure connection.

Yes, the terminal includes a mechanical locking tang that prevents accidental disengagement once secured inside the housing.

This terminal is suitable for automotive, consumer electronics, data communications, and networking applications where reliable wire termination is crucial.

The maximum contact resistance for this terminal is 10 ohms, ensuring efficient electrical connectivity.

This terminal is manufactured in India, indicating its origin for sourcing and quality considerations.

The low halogen content minimizes toxicity risks in case of exposure to fire or heat, making it safer for use in various environments.
