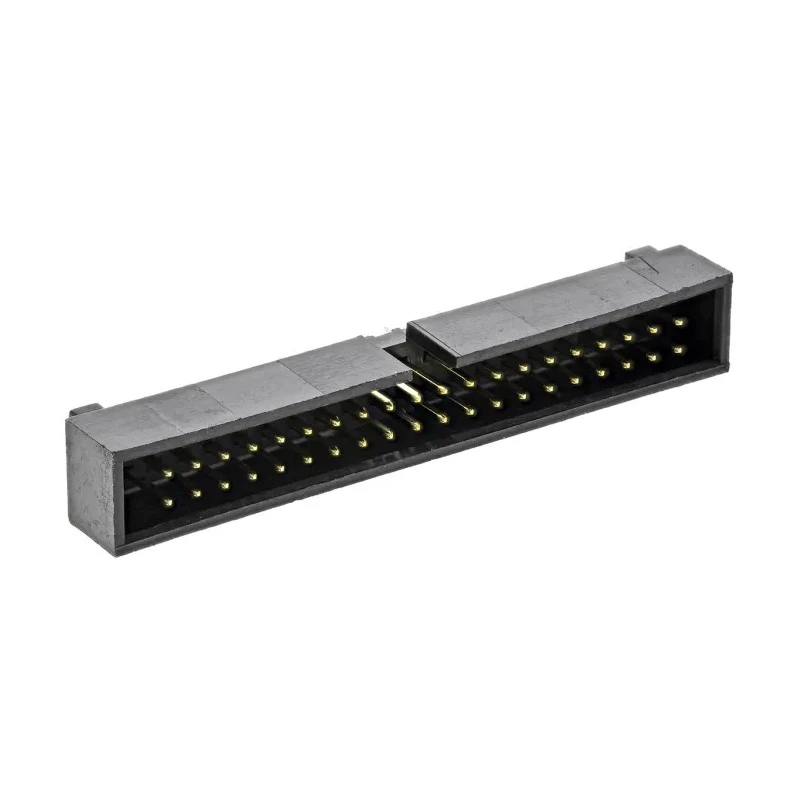

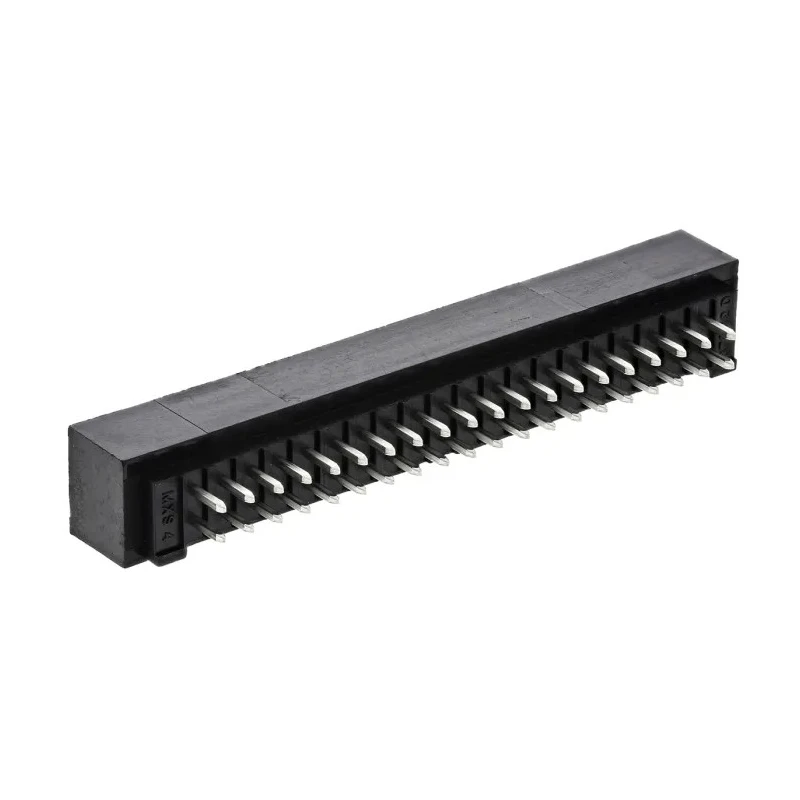

Molex C-Grid Series Straight Through Hole PCB Header, 40 Contact, 2.54 mm Pitch, 2 Row, Shrouded 70246-4004
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | C-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
| Mating Pin Length | 2.54mm |
Key Features
- Features 40 male contacts in 2 rows with 2.54 mm pitch for reliable connection.
- Constructed with a Polybutylene Terephthalate housing for durability.
- Gold-plated phosphor bronze contacts ensuring high conductivity and corrosion resistance.
- Designed for through hole mounting providing mechanical stability.
- Supports operating voltage up to 250V and current rating of 2.5A.
- Operating temperature range from -55°C to 120°C for varied environments.
- Shrouded design protects contacts and aids in proper mating alignment.
- Tail pin length of 3.43 mm and mating pin length of 2.54 mm for secure soldering and connection.
Product Description
Molex 70246-4004 C-Grid Series Straight Through Hole PCB Header is a high-quality component designed for electronic applications requiring a wire-to-board connector solution. It features 40 male contacts arranged in 2 rows with a 2.54 mm pitch, providing precise and reliable solder connections on PCBs.
The housing material is Polybutylene Terephthalate, which offers excellent mechanical strength and durability under industrial operating conditions. Phosphor Bronze contacts are gold plated for excellent conductivity and protection against corrosion, ensuring long-term reliability.
Designed for through hole mount technology, this connector provides enhanced mechanical stability during PCB assembly and use. It supports a current of 2.5A and voltage up to 250V, making it suitable for a wide range of low-power electronic and industrial control systems.
Its operating temperature range from -55°C to 120°C ensures performance in both low and high temperature environments, suitable for industrial, manufacturing, telecommunications, and instrumentation uses.
The shrouded design prevents incorrect connections and protects contacts from damage, which is critical in automated assembly lines and high-density PCBs. The tail pins measure 3.43 mm, while mating pins measure 2.54 mm, facilitating standard soldering and mating compatibility.
Reliable wire-to-board connection with 40 contacts in 2 rows. Robust housing material and gold-plated contacts for durability and conductivity. Through hole mount for mechanical stability in PCB assembly. Wide operating temperature range for industrial applications.
Shrouded design protects contacts and ensures proper mating alignment.
This PCB Header is ideal for applications in industrial electronics, communication systems, control equipment, and general PCB assembly where quality, durability, and high performance are required. Explore more PCB connectors and electronic components to complement your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 40 male contacts arranged in 2 rows with a 2.54 mm pitch, ensuring reliable solder connections on PCBs.
It supports a maximum operating voltage of 250V, making it suitable for various low-power electronic applications.
The current rating for this unit is 2.5A, which is adequate for many electronic and industrial control systems.
The housing is made from Polybutylene Terephthalate, and the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 120°C, suitable for a variety of environments.
This connector is designed for through hole mounting, providing mechanical stability during PCB assembly and use.
The tail pin length is 3.43 mm, which aids in secure soldering to the PCB.
The mating pin length is 2.54 mm, allowing for standard mating compatibility with corresponding connectors.
It utilizes a wire-to-board connector system, making it suitable for various electronic applications.
The shrouded design of this PCB header protects the contacts and aids in proper mating alignment, reducing the risk of incorrect connections.
The country of origin for this product is India, reflecting its manufacturing location.
This unit is ideal for applications in industrial electronics, communication systems, control equipment, and general PCB assembly.
