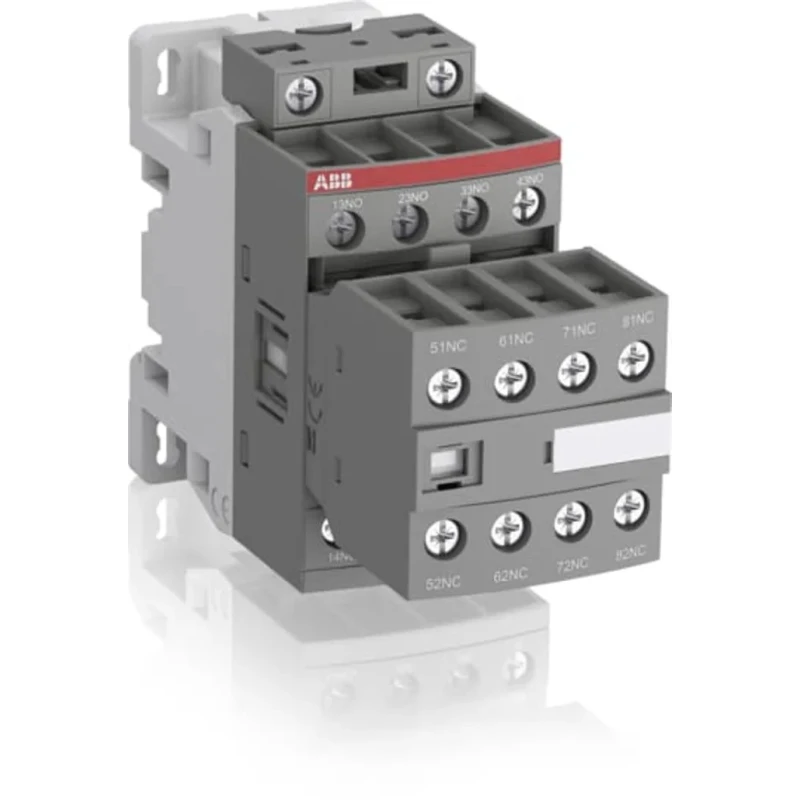

ABB NFZ62E-22 Contactor Relay 130V, 48V Coil, 8-Pole, 6A, 140W, 6 NO / 2 NC, 690V

Free Delivery in India | Lowest Global Shipping Charges

ABB NFZ62E-22 Contactor Relay 130V, 48V Coil, 8-Pole, 6A, 140W, 6 NO / 2 NC, 690V



Category Contactor Relay Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Function	Push Button
Length	110.5mm
Model	NFZ62E-22
Depth	110.5mm
Width	45mm
Mount Type	DIN Rail
Series	NFZ62E-22
Power Rating	140W
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	8
Contact Voltage	690V
Coil Voltage	130, 48V
Normal State Configuration	6 NO/2 NC
Contact Current	6A
Number of Auxiliary Contacts	8
Auxiliary Contact Configuration	6 NO/2 NC
Operational Current Ie	6A
Control Circuit Voltage Uc	130V dc
Pole and Throw Configuration	8

Key Features

Accepts a wide control voltage range from 24V to 250V for flexible operation.
Features an 8-pole configuration for versatile circuit control.
Supports 6 A contact current and 140 W power rating for demanding electrical loads.
Includes 6 Normally Open and 2 Normally Closed auxiliary contacts.
Screw terminal type ensures secure and easy electrical connections.
Compact DIN rail mount design with dimensions 110.5 mm x 45 mm x 110.5 mm.
Operational temperature range from -40°C to +70°C for varied environments.
Built-in surge protection eliminates the need for external suppressors.

Product Description

ABB NFZ62E-22 contactor relay, featuring 130V and 48V coil voltages, 8 poles, and a 6A contact current rating, is designed for efficient switching of auxiliary and control circuits. Its compact size (110.5 mm length, 45 mm width, 110.5 mm depth) enables seamless mounting on DIN rails.

This relay supports significant voltage variations from 24V to 250V without additional coils and incorporates built-in surge protection to enhance reliability. The 8-pole configuration, combined with 6 Normally Open and 2 Normally Closed auxiliary contacts, delivers flexible circuit control suited for industrial automation and electrical control panels.

The screw terminal connections facilitate secure and straightforward wiring. It operates reliably within a broad temperature range from -40°C to +70°C, complying with strict standards including IEC 60947-5-1, EN 60947-5-1, UL 508, and CSA C22.2 N°14. This makes it suitable for diverse industrial environments requiring 690V contact voltage support.

Typical applications include integration in automation systems, industrial machinery, relay logic circuits in PLCs, and electrical control panels. The model is also compliant with SEMI F47-0706, ensuring robustness against short voltage dips and sags.

Accepts a wide control voltage range from 24V to 250V for flexible operation. Features an 8-pole configuration for versatile circuit control. Supports 6 A contact current and 140 W power rating for demanding electrical loads.

Includes 6 Normally Open and 2 Normally Closed auxiliary contacts. Screw terminal type ensures secure and easy electrical connections. Compact DIN rail mount design with dimensions 110.5 mm x 45 mm x 110.5 mm. Operational temperature range from -40°C to +70°C for varied environments.

Built-in surge protection eliminates the need for external suppressors. Compliant with IEC 60947-5-1, EN 60947-5-1, UL 508, and CSA C22.2 standards. Explore the ABB product range and reliable Contactor Relays at EnvMart for industrial and automation applications.
