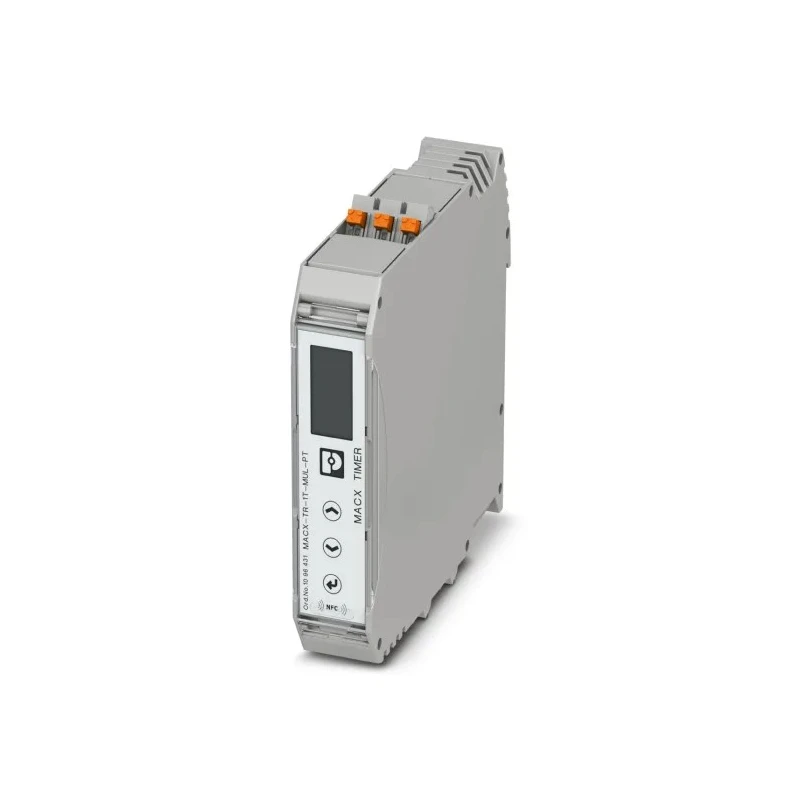

Phoenix Contact DIN Rail Timer Relay, 2-Contact, 24 V DC/AC, 240 V AC, 0.01 to 59999 min, 13-Function, 2 Switch 1096431

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact DIN Rail Timer Relay, 2-Contact, 24 V DC/AC, 240 V AC, 0.01 to 59999 min, 13-Function, 2 Switch 1096431

Name: Phoenix Contact DIN Rail Timer Relay, 2-Contact, 24 V DC/AC, 240 V AC, 0.01 to 59999 min, 13-Function, 2 Switch 1096431
Brand: PHOENIX CONTACT
SKU: 177455
Price: 140.64 USD
Availability: InStock



Category Timer Relay Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Brand	Phoenix Contact
Height	109mm
Model	1096431
IP Rating	IP20
Mode	Other
Width	22.5mm
Mount Type	DIN Rail
Maximum Operating Temperature	60°C
Contact Configuration	2
Minimum Operating Temperature	-25°C
Time Range	0.01 to 59999 min
Standards/Approvals	cULus, RoHS, cUL, UL, CCC-SDoC
Number of Contacts	2
Number of Timer Functions	13
Supply DC Voltage	24 V dc
Supply AC Voltage	24, 240V ac

Key Features

Equipped with 13 timer functions for multifunctional applications.
Supports supply voltages of 24 V DC/AC and 240 V AC for flexible installation.
Compact width of 22.5 mm saves space in control panels.
Features 2 PDT dry contact outputs and supports PNP and NPN proximity switch inputs.
Front panel OLED display and buttons, plus NFC wireless configuration with app support.
Includes password protection to secure settings.
Operates in temperature range from -25°C to 60°C.
IP20 rated housing ensures protection in typical industrial environments.

Product Description

The Phoenix Contact 1096431 DIN Rail Timer Relay is engineered for precise industrial timing applications, featuring 2 contacts and a versatile time range from 0.01 to 59999 minutes. Suitable for controlling processes in automation, manufacturing, HVAC, and electrical distribution systems, this multifunctional timer relay offers 13 distinct timing functions, adaptable to various operational requirements.

The device supports a broad power supply range of 24 V DC/AC up to 240 V AC, accommodating different system voltages. Its compact 22.5 mm width is designed for efficient use of DIN rail space in control panels, enabling high-density mounting.

Configuration is user-friendly with an OLED display and intuitive front panel buttons, along with NFC wireless communication supported via a free app for iOS and Android. The timer relay also incorporates password protection to safeguard critical settings and prevent unauthorized changes.

The relay outputs include 2 PDT dry contacts suitable for integration with control circuits, and it supports PNP and NPN proximity switch inputs for flexible sensor connectivity. Operating reliably within temperature extremes from -25°C to 60°C and an IP20 protection rating, the relay is fit for typical industrial environments.

Multifunctional timer relay with 13 timing modes. Wide adjustable time range from 10 milliseconds to 999 hours 59 minutes. Supports wide supply voltage range 24 VAC/DC to 240 VAC/DC. Compact 22.5 mm width for space-saving installation.

OLED display and buttons plus NFC wireless configuration. Password protection to secure device settings. 2 PDT dry contact outputs with PNP/NPN input support. Operating temperature from -25°C to 60°C with IP20 rating. Complies with cULus, RoHS, cUL, UL, and CCC standards.

This versatile timer relay from Phoenix Contact is ideal for use in industrial automation, manufacturing machinery control, HVAC timing functions, and electrical panel time-dependent switching tasks. Its multifunctionality and flexible power input make it suitable for various applications across commercial and industrial sectors.

The product comes with country of origin China and is supplied new. It belongs to the Timer Relays category at EnvMart, offering trusted quality and reliable performance. Explore more Timer Relays and Phoenix Contact products at EnvMart to find the perfect fit for your automation and control needs.
