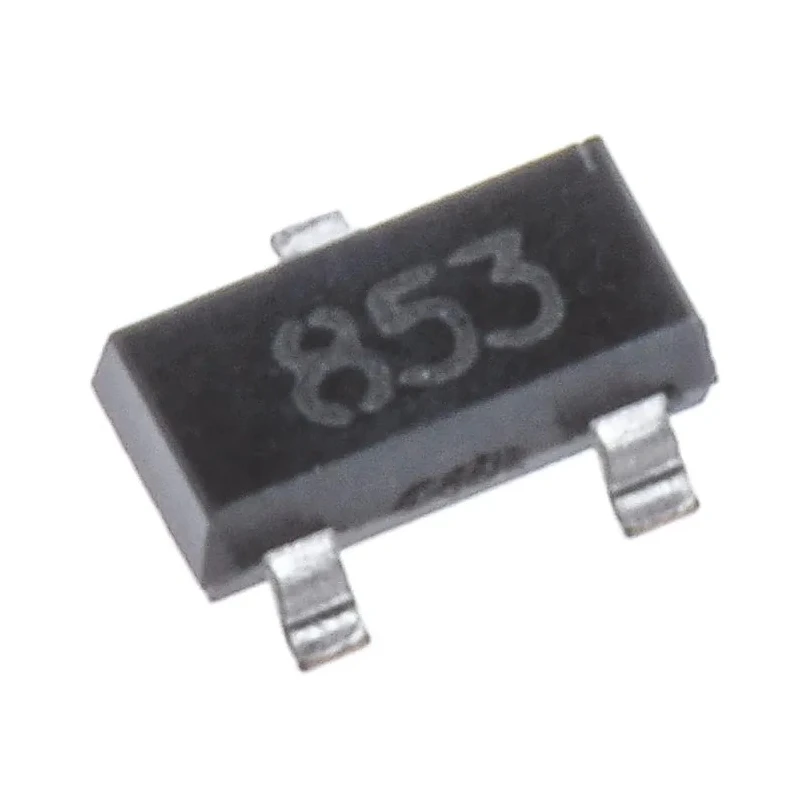

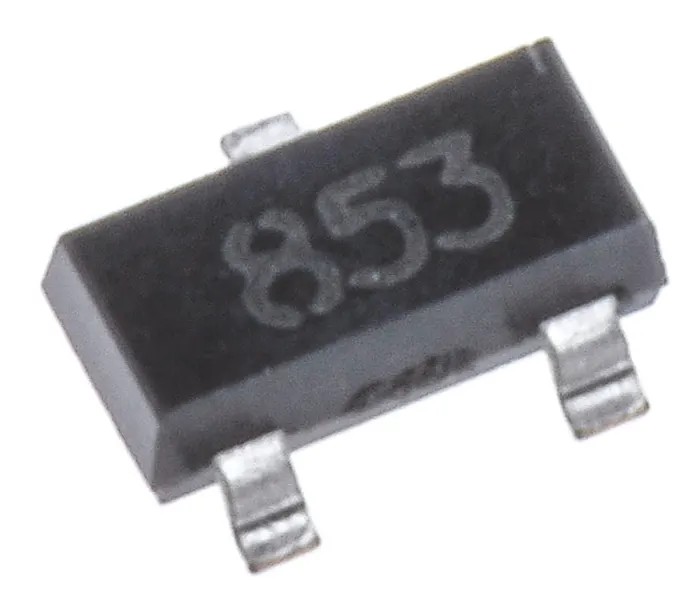

DiodesZetex Bipolar NPN Transistor 4 A 100 V 3-Pin SOT-23 ZXTN2020FTA

DiodesZetex ZXTN2020FTA bipolar NPN transistor is designed for robust electronic applications requiring up to 4 amps collector current and 100 volts collector-emitter voltage in a compact 3-pin SOT-23 surface mount package.

This transistor features a single transistor configuration with NPN polarity, making it suitable for switching and amplification tasks within various electronic circuits. It offers a maximum power dissipation of 1.56 watts, ensuring reliable thermal performance under high load conditions.

With a maximum transition frequency of 130 MHz and a minimum DC current gain (hFE) of 35, the device supports high-speed applications with efficient signal amplification. Its operating temperature span from -55°C to 150°C permits usage in demanding temperature environments, extending its versatility across industrial, automotive, and consumer electronics.

The ZXTN2020FTA transistor comes in a compact SOT-23 package with three pins, optimized for surface mount technology and printed circuit board (PCB) assembly. This form factor facilitates space-saving designs and reliable mounting.

Manufactured in Germany, the product adheres to rigorous quality controls and standards, although no specific certifications are declared. Maximum DC collector current of 4 amps ensures robust current handling capabilities.

Collector-Emitter breakdown voltage of 100 volts supports high-voltage applications. Surface mount SOT-23 package allows efficient printed circuit board integration. Wide temperature operation range from -55°C to 150°C suits industrial and automotive uses.

High transition frequency of 130 MHz enables performance in switching and amplification circuits. Minimum DC current gain of 35 ensures consistent gain characteristics. Power dissipation rated at 1.56 watts maintains device stability under load.

Manufactured to stringent German standards for quality assurance.

This bipolar NPN transistor is widely applicable in industrial electronics, telecommunication equipment, consumer devices, automotive electronics, and general electronic component manufacturing, serving as a vital component for switching, amplification, and signal processing.
