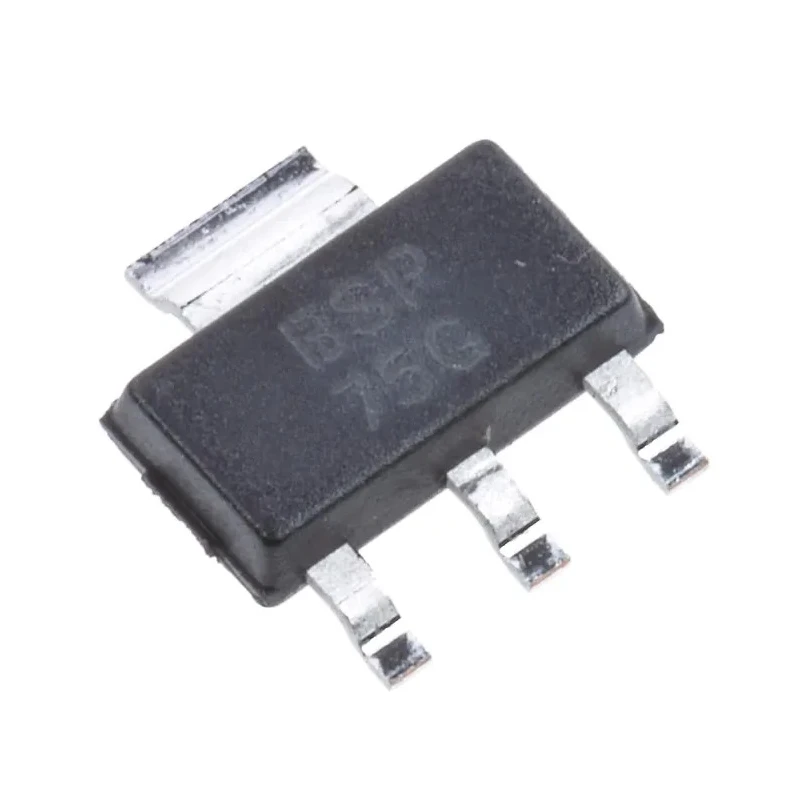

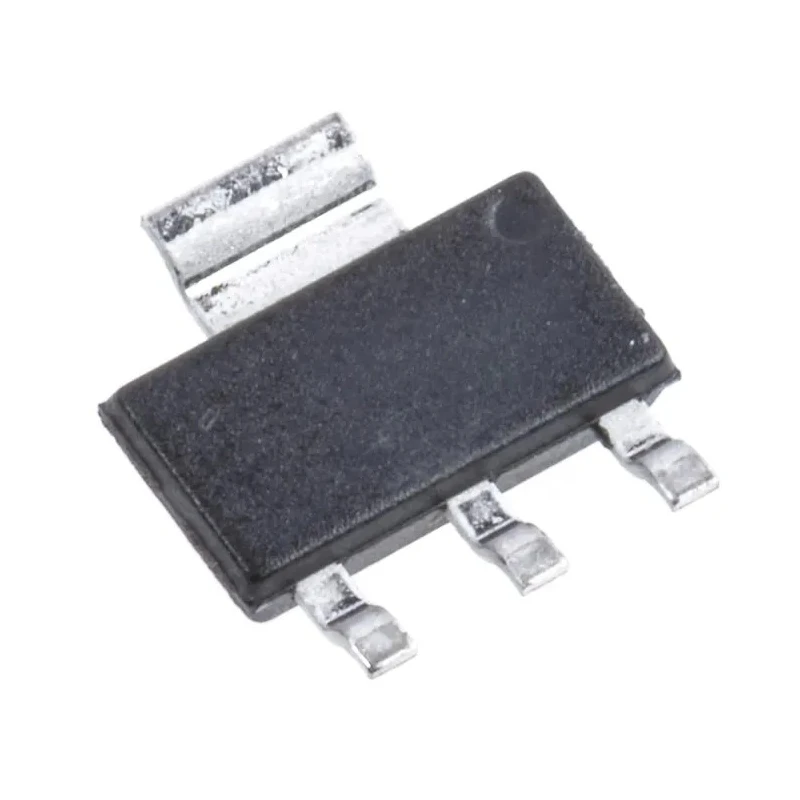

DiodesZetex Low Side Power Switch IC 4-Pin SOT-223, 60V, 1.4A Operating Current BSP75GTA

DiodesZetex BSP75GTA is a low side power switch integrated circuit designed for robust power management in electronic applications. Featuring a 4-pin SOT-223 surface-mount package, this Power Switch IC integrates IntelliFET self-protected MOSFET technology, providing comprehensive protection against electrostatic discharge (ESD), over-current, over-voltage, and over-temperature conditions. This device is ideal for industries requiring reliable low side switching with high efficiency and safety.

The BSP75GTA supports a maximum supply voltage of 60V and an operating current of up to 1.4A, with a low switch-on resistance of 0.52 ohms to reduce power loss and improve overall system efficiency. Its wide operating temperature range from -40°C to 150°C enables it to work reliably in harsh environments typically found in industrial, automotive, and commercial electronics.

Compact in size with dimensions of 6.7 mm length, 3.7 mm width, and 1.65 mm height, the SOT-223 package facilitates easy surface mounting and integration into space-constrained circuit designs. The device features 1 input and 5 outputs supporting versatile switching functions and ensuring load dump protection.

This product is manufactured in Germany to high-quality standards, making it suitable for applications in power management ICs, semiconductor devices, and electronic component assemblies requiring dependable low side driver solutions.

Low side power switch topology designed for efficient switching applications. Self-protected IntelliFET MOSFET technology with integrated ESD, over-current, over-voltage, and over-temperature protections. Switch on resistance of 0.52 ohms ensures minimal power loss.

Operates within a wide voltage range up to 60 volts. Supports up to 1.4 amperes of continuous operating current. Wide operating temperature range from minus 40°C to 150°C for robust industrial use. Compact dimensions with length 6.7 mm, width 3.7 mm, and height 1.65 mm.

Surface mount type for automated PCB assembly and space-saving design. Package type is SOT-223 with 4 pins, suitable for low-side driver applications. Manufactured in Germany ensuring high quality standards.

Ideal for use in industrial electronics, power management systems, automotive applications, and any circuit requiring reliable low side power switching with integrated protection features. Explore the full range of power management ICs at EnvMart for advanced electronic component solutions.
