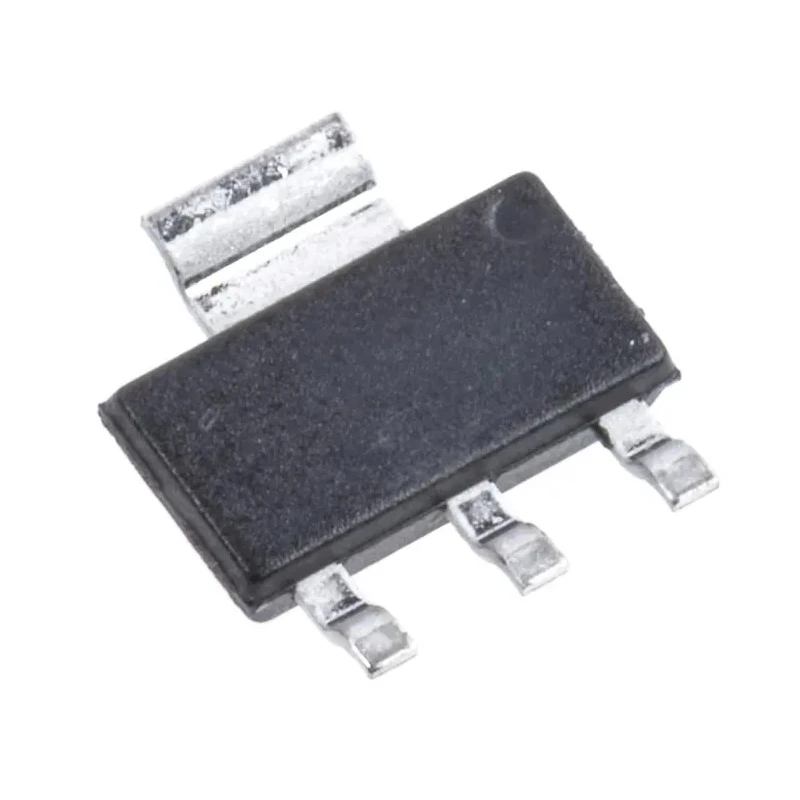

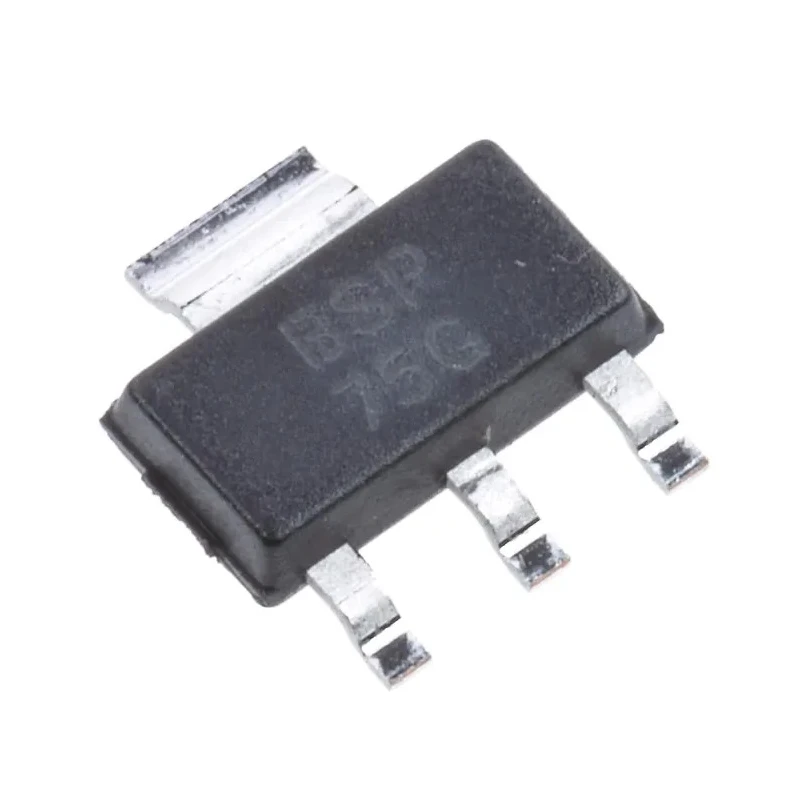

DiodesZetex Low Side Power Switch IC 4-Pin SOT-223, Surface Mount, 60V, 1.4A Operating Current BSP75GTA
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | DiodesZetex |
| Height | 1.65mm |
| Length | 6.7mm |
| Model | BSP75GTA |
| Width | 3.7mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | BSP75G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1.4A |
| Number of outputs | 5 |
| Pin Count | 4 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | -0.2V |
| Switch On Resistance RdsOn | 0.52Ω |
Key Features
- The device integrates IntelliFET self-protected MOSFETs providing comprehensive protection features.
- It supports a maximum operating current of 1.4A and voltage up to 60V.
- Switch on resistance (RdsOn) is 0.52 ohms ensuring efficient power switching.
- Operating temperature range is from -40°C to 150°C suitable for industrial environments.
- Package dimensions include length 6.7mm, width 3.7mm, and height 1.65mm for compact PCB design.
- Designed for surface mount technology (SMT) ensuring easy assembly and reliability.
- Suitable for use in power management IC applications in electronics and electrical industries.
- Includes protection features such as short circuit auto restart, over voltage, over current, and ESD protection.
Product Description
DiodesZetex BSP75GTA is a low side power switch integrated circuit, encased in a compact 4-pin SOT-223 surface mount package. It is engineered with IntelliFET self-protected MOSFETs that provide multiple protection mechanisms, including over-current, over-voltage, electrostatic discharge (ESD), and thermal protection, enhancing device reliability and robustness.
This power switch IC features a low switch on resistance of 0.52 ohms, enabling efficient power handling and minimal power loss during switching operations. It supports an operating current of up to 1.4A and withstands supply voltages up to 60 volts, making it suitable for a variety of electronic power management applications.
The device operates reliably across a wide temperature range from -40°C to 150°C, making it appropriate for industrial and automotive environments where temperature variances are common. Its compact dimensional footprint of 6.7mm length, 3.7mm width, and 1.65mm height allows for efficient PCB layout and space-saving designs.
The BSP75GTA includes advanced protection features such as short circuit protection with auto restart, active clamp over voltage protection, load dump protection, and logic level input for seamless control integration.
This IC is widely used in industrial electronics, power management systems, automotive electronics, and other applications requiring reliable low side power switching. IntelliFET self-protected MOSFET technology for enhanced device safety.
Short circuit protection with automatic restart. Active clamp mechanism providing over voltage protection. Electrostatic discharge (ESD) input protection. High continuous current rating and load dump protection capabilities.
Logic level input for easy integration with control circuits.
Derived from Diodes Inc’s MOSFET transistors, this component offers high reliability and performance for demanding power switching needs. It is a critical component in Power Switch IC product families designed to protect and control load current effectively.
Explore the Electronics & Electricals category at EnvMart for more Semiconductor and Power Management ICs offering cutting-edge technologies tailored to industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BSP75GTA supports a maximum operating current of 1.4A.
It can withstand supply voltages up to 60V and a minimum of -0.2V.
The switch on resistance (RdsOn) is 0.52 ohms, allowing for efficient power switching.
The package dimensions are 6.7mm in length, 3.7mm in width, and 1.65mm in height.
The operating temperature range is from -40°C to 150°C, suitable for industrial environments.
It includes short circuit protection with auto restart, over voltage protection, over current protection, and ESD protection.
This model has a total of 4 pins.
It is designed for surface mount technology (SMT), ensuring easy assembly.
The BSP75GTA belongs to the BSP75G series.
The country of origin for this product is Germany.
It is suitable for use in power management systems in industrial and automotive electronics.
The maximum supply voltage that this IC can handle is 60V.
