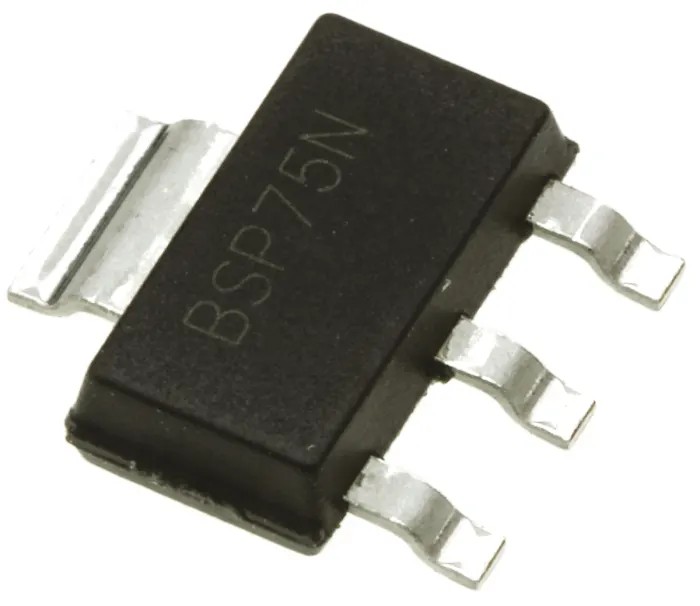

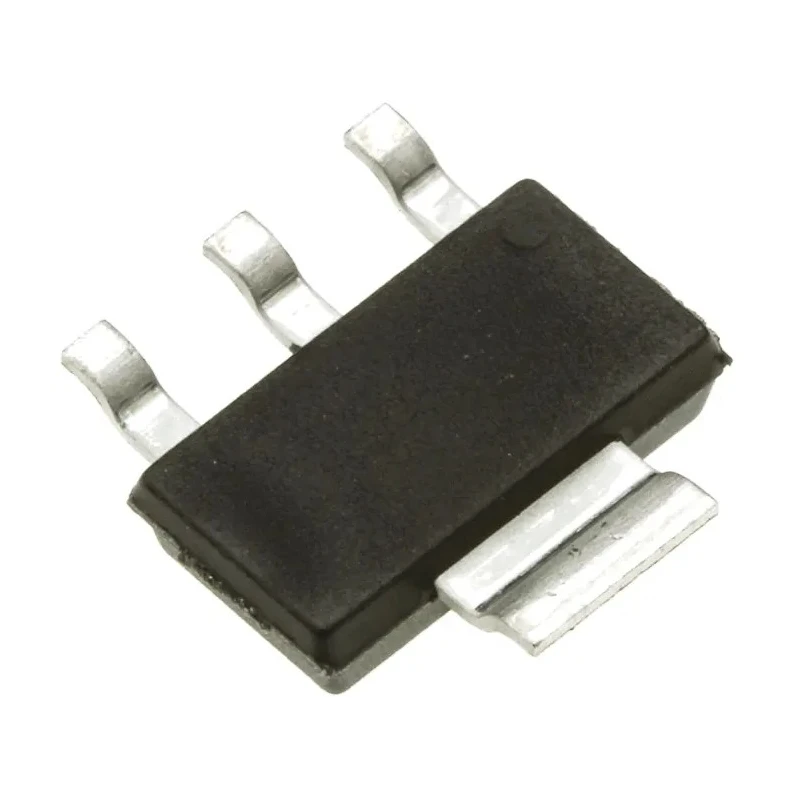

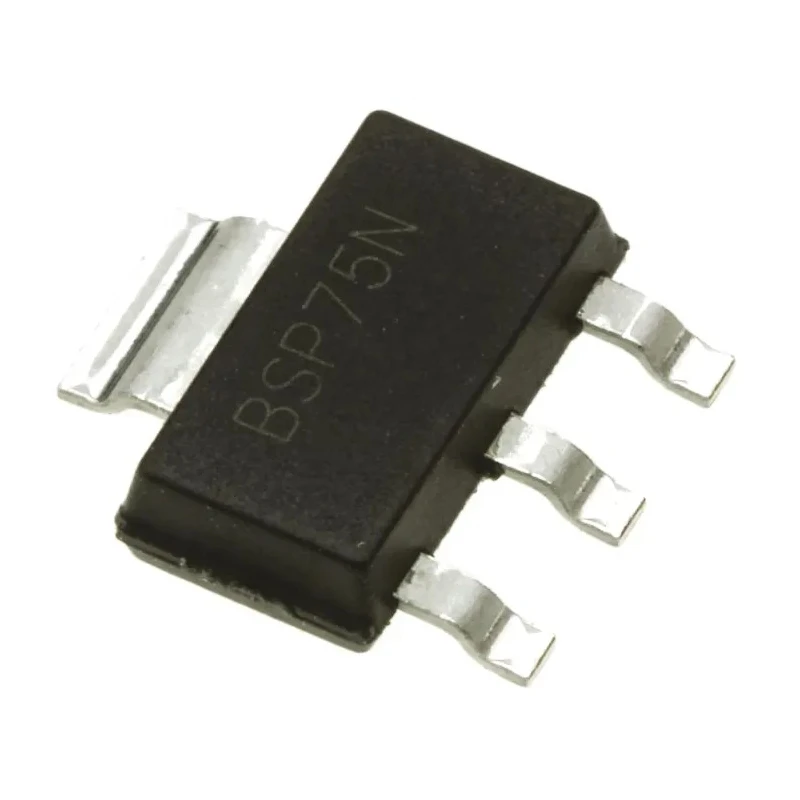

DiodesZetex Low Side Power Switch IC 4-Pin SOT-223 60V 1.1A BSP75NTA
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | DiodesZetex |
| Height | 1.65mm |
| Length | 6.7mm |
| Model | BSP75NTA |
| Width | 3.7mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | BSP75N |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1.1A |
| Number of outputs | 5 |
| Pin Count | 4 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | -0.2V |
| Switch On Resistance RdsOn | 0.52Ω |
Key Features
- Features IntelliFET self-protected MOSFETs with integrated protection circuits.
- Offers low On Resistance of 0.52 ohms ensuring minimal power loss.
- Operates at a maximum supply voltage of 60V and continuous current of 1.1A.
- Includes protection against ESD, over-current, over-voltage, and over-temperature conditions.
- Compact 4-pin SOT-223 surface-mount package suitable for high-density PCB layouts.
- Wide operating temperature range from -40°C to 150°C for reliable performance.
- Input logic level compatible with various microcontroller and control circuits.
- Designed and manufactured in Germany with new product condition assurance.
Product Description
DiodesZetex BSP75NTA is a low side power switch IC featuring a 4-pin SOT-223 surface mount package and a low switch on resistance of 0.52 ohms. It integrates advanced IntelliFET self-protected MOSFET technology that offers robust protection circuits guarding against electrostatic discharge (ESD), over-current, over-voltage (active clamp), and over-temperature scenarios, ensuring reliability and longevity.
This device supports a maximum supply voltage of 60V and continuous operating current up to 1.1A. It is designed with a single low side power switch topology featuring 5 outputs and 1 input, ideal for various power management applications in industrial, electronic assembly, and embedded system designs.
The BSP75NTA operates effectively within a wide temperature range of -40°C to 150°C, suitable for harsh environments and automotive applications despite not being certified for automotive standards. Its compact dimensions (6.7mm length, 3.7mm width, 1.65mm height) enable space-saving PCB layouts and integration into compact electronic systems.
Typical use cases include industrial power switch management, motor control circuits, load switching, and embedded control systems where compact, reliable, and self-protected switching components are necessary. Manufactured in Germany, the BSP75NTA ensures high quality and performance consistency.
Featuring integrated ESD, over-current, over-voltage, and over-temperature protections. Packaged in a small footprint SOT-223 surface mount form factor. Low on resistance for energy-efficient switching performance. Wide operating temperature range for industrial and commercial use.
Single low side switch with multiple outputs for versatility. Designed for easy integration in power management circuits. Reliable build quality from German manufacturing facilities.
This component is a vital part in power management ICs portfolio, contributing to safer and more efficient electronic device designs. Browse more Power Switch ICs and semiconductor components at EnvMart for your industrial and electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 60V.
It supports a continuous operating current of up to 1.1A.
The switch on resistance (RdsOn) is 0.52 ohms, ensuring minimal power loss during operation.
The BSP75NTA operates effectively within a temperature range of -40°C to 150°C.
It comes in a compact 4-pin SOT-223 surface mount package.
This model features 1 input and 5 outputs.
It includes protection against ESD, over-current, over-voltage, and over-temperature conditions.
The dimensions are 6.7mm in length, 3.7mm in width, and 1.65mm in height.
While it can operate in harsh environments, it is not certified for automotive standards.
This power switch IC is manufactured in Germany.
It is suitable for industrial power switch management, motor control circuits, load switching, and embedded control systems.
The BSP75NTA belongs to the BSP75 series.
