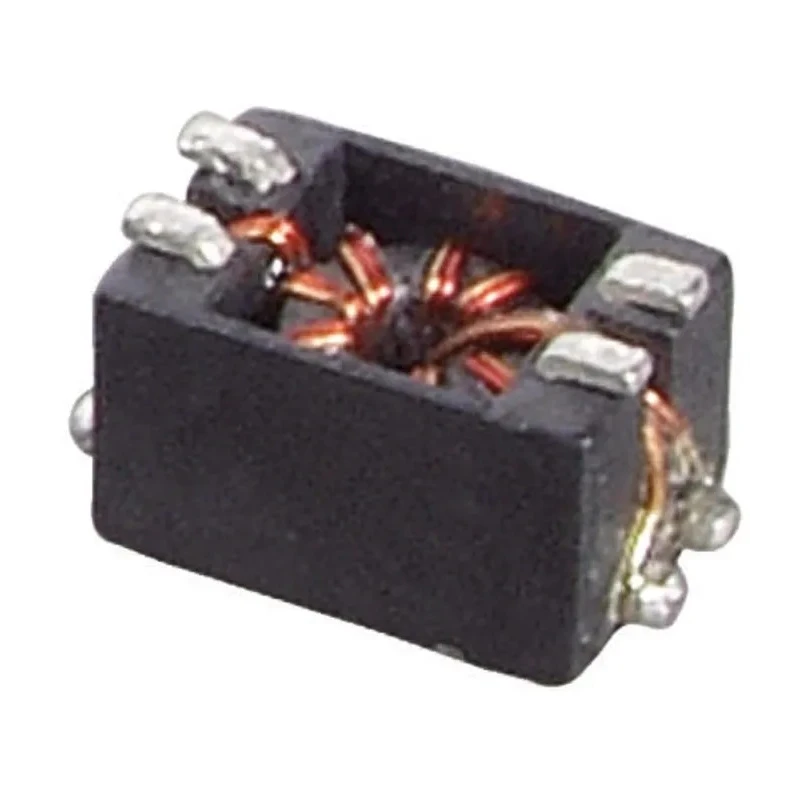

Wurth Elektronik WE-SLM Surface Mount Common Mode Line Filter 100μH Ferrite Core 300mA 6mm 744242101
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40°C to +125°C |
| Height | 3.3mm |
| Length | 6mm |
| Depth | 3.3mm |
| Packaging | Tape & Reel |
| Series | WE-SLM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | UL 94 V0 |
| Maximum DC Current | 300mA |
| Pin Count | 4 |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a wirewound inductor construction ensuring high reliability.
- Operates within temperature range of -40°C to +125°C.
- Maximum DC current rating of 300 mA suitable for signal and power lines.
- Compact size with 6 mm length, 3.3 mm height and depth for surface mounting.
- Complies with Automotive Standard AEC-Q200 for robustness in automotive applications.
- Manufactured with a ferrite core that improves noise suppression efficiency.
- Termination style is surface mount for easy PCB integration.
- Possesses an inductance tolerance of -30% to +50%, accommodating design flexibility.
Product Description
Wurth Elektronik 744242101 is a Surface Mount Common Mode Line Filter featuring a 100 μH inductance and a ferrite core. This wirewound inductor offers high current capability up to 300 mA, making it suitable for various industrial applications including USB, CAN, FireWire, sensor lines, data lines, and power supply systems.
The component is designed to withstand a broad operating temperature range from -40°C to +125°C, ensuring reliable performance under harsh environmental conditions. It complies with the Automotive Standard AEC-Q200, demonstrating its suitability for demanding automotive electronics applications.
With a compact footprint of 6 mm length and 3.3 mm height and depth, this Surface Mount Device (SMD) enables efficient PCB layout and assembly. The filter utilizes a surface mount termination style designed for reflow soldering processes, enhancing production efficiency.
The inductance tolerance ranges from -30% to +50%, providing flexibility for different circuit tolerances. Its maximum DC resistance of 580 milliohms helps maintain power efficiency and reduces heat generation in circuits. It also conforms to UL 94 V0 flame retardant standard, enhancing safety in electronic devices.
The ferrite core construction contributes to effective high frequency noise suppression and electromagnetic interference (EMI) filtering. The maximum self resonant frequency is rated at 100 kHz, ensuring stable operation within the specified frequency range.
Manufactured in China, this filter is packaged in tape and reel format for automated assembly. The 4-pin count and wirewound inductor construction highlight its quality and performance consistency for industrial, automotive, and commercial electronics manufacturing.
Features a wirewound inductor construction ensuring high reliability. Operates within temperature range of -40°C to +125°C. Maximum DC current rating of 300 mA suitable for signal and power lines. Compact size with 6 mm length, 3.3 mm height and depth for surface mounting.
Complies with Automotive Standard AEC-Q200 for robustness in automotive applications. Manufactured with a ferrite core that improves noise suppression efficiency. Termination style is surface mount for easy PCB integration.
Possesses an inductance tolerance of -30% to +50%, accommodating design flexibility. Maximum DC resistance of 580 mΩ minimizes power loss in circuits. Meets UL 94 V0 standards for flame retardant properties. Explore more electronic components including inductors and filters with Wurth Elektronik quality standards on EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100μH, which is suitable for various signal and power line applications.
It has a maximum DC current rating of 300 mA, making it suitable for handling both signal and power lines efficiently.
The component operates within a temperature range of -40°C to +125°C, ensuring reliable performance in various environmental conditions.
This model is manufactured with a ferrite core, which enhances its noise suppression efficiency and performance.
The termination style is surface mount, designed for easy integration into PCBs using reflow soldering processes.
It has a compact size with a length of 6 mm and a height and depth of 3.3 mm, making it suitable for space-constrained applications.
The inductance tolerance ranges from -30% to +50%, providing flexibility for different circuit designs and tolerances.
Yes, it complies with the Automotive Standard AEC-Q200, indicating its robustness for automotive applications.
The maximum self-resonant frequency is rated at 100 kHz, ensuring stable operation within the specified frequency range.
The maximum DC resistance is 580 milliohms, which helps minimize power loss and heat generation in circuits.
It is packaged in tape and reel format, facilitating automated assembly processes in manufacturing environments.
It is suitable for various industrial applications including USB, CAN, FireWire, sensor lines, data lines, and power supply systems.
