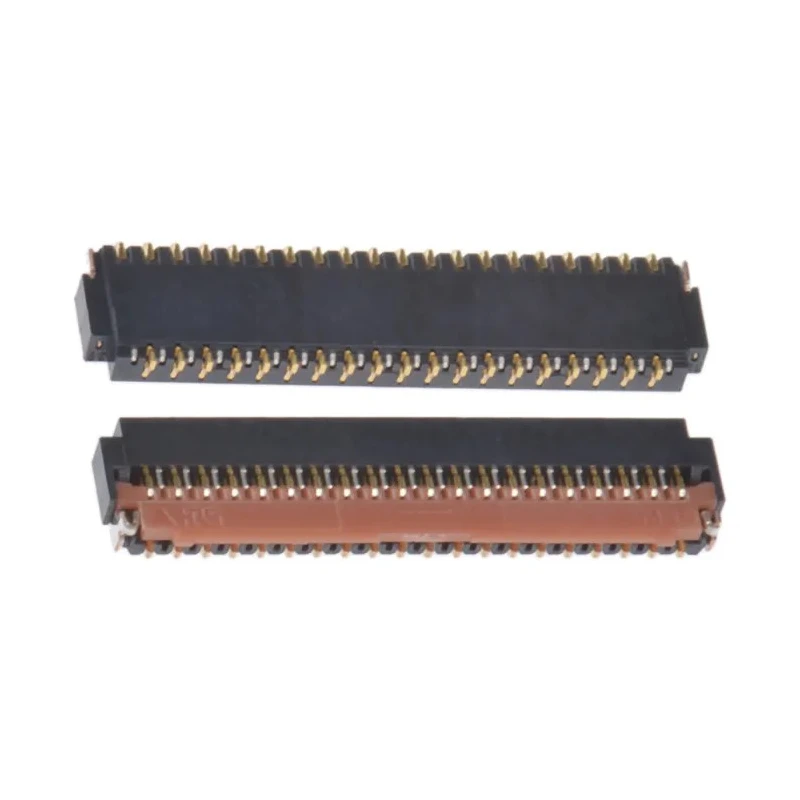

Hirose FPC Connector 0.3 mm Pitch 27 Way Straight Female Solder FH26

Hirose FH26W-27S-0.3SHW(97) is a 0.3 mm pitch FPC (Flexible Printed Circuit) connector series intended for electronic and industrial applications requiring compact, reliable interconnection solutions. Featuring 27 contacts arranged in two rows with a straight female connector design, it supports solder termination for robust electrical connections.

This FPC connector incorporates a low-profile 1.0 mm height, allowing designers to maximize PCB space efficiency in miniaturized portable equipment such as notebook PCs, mobile phones, PDAs, portable audio players, and DVD-R players. The connector uses a zero insertion force (ZIF) rotating actuator that enables effortless insertion of FPC cables while ensuring secure retention with a tactile click indicating fully locked position. Metal insertion guides on the sides facilitate precise FPC alignment without increasing connector footprint.

The contact material is phosphor bronze with gold plating for excellent electrical performance and corrosion resistance. The polyamide housing provides insulation and mechanical durability. Double-sided leads at 0.6 mm pitch simplify PCB mounting and ensure compatibility with conductive PCB traces. The enclosed design allows mounting over conductive traces without exposure risk.

Rated for 30V AC and 200 mA current, with an operating temperature range from -55°C to 85°C, the FH26 connectors suit a variety of commercial and industrial environments. Versions complying with halogen-free requirements provide environmentally friendly options for modern electronics manufacturing standards.

Low profile 1.0 mm height reduces PCB space. Rotating one-touch ZIF actuator for easy FPC insertion and secure locking. Gold-plated phosphor bronze contacts ensure reliability. Double-sided leads with 0.6 mm pitch for PCB mounting ease.

Polyamide housing offers mechanical strength and insulation. Supports 30V AC voltage and 200 mA current ratings. Operating temperature from -55°C to 85°C. Metal fittings guide FPC insertion for accurate alignment. Halogen-free compliant versions available.

Appropriate for applications in industrial, consumer electronics, communication devices, and portable equipment, this connector delivers a balance of compact design, mechanical reliability, and electrical performance. Explore the wide range of FPC Connectors in EnvMart for your next electronic interconnect solutions.
