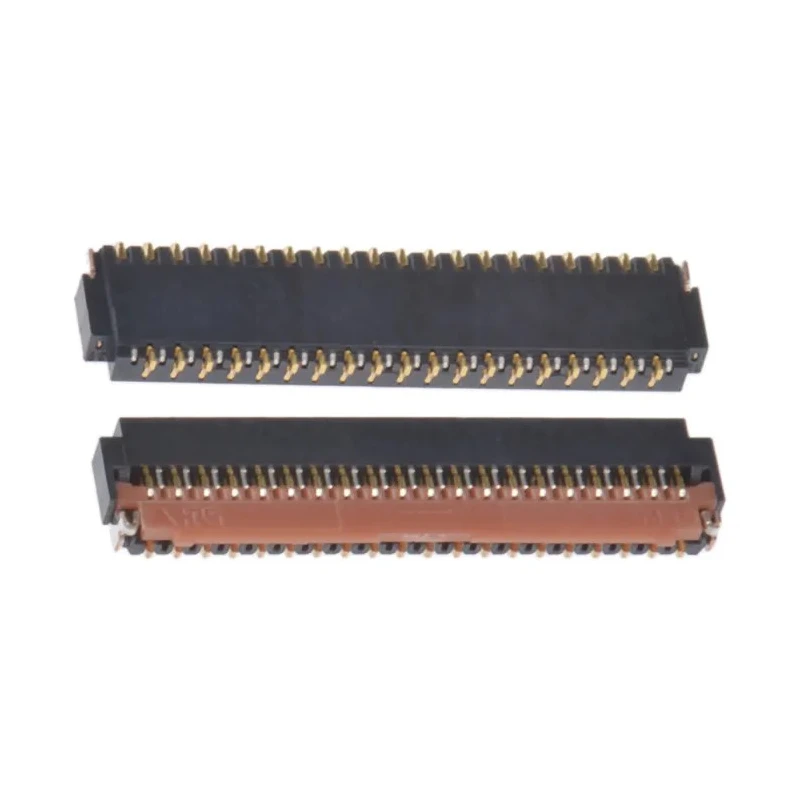

Hirose FH26 0.3 mm Pitch 51 Way Straight Female FPC Connector, Surface Mount, Solder Termination
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | Hirose |
| Orientation | Straight |
| Current | 200mA |
| Model | FH26 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | FH26 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.3mm |
| Contact Plating | Gold |
| Number of Contacts | 51 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Zero insertion force (ZIF) mechanism ensures easy insertion and secure retention of flexible printed circuits.
- Contacts made of phosphor bronze with gold plating for reliable electrical performance.
- Low profile connector housing with 1.0 mm height for PCB space saving.
- Metal fittings provide accurate FPC alignment without increasing PCB footprint.
- Supports operating voltage up to 30 V AC and current rating of 200 mA.
- Wide operating temperature range from -55°C to 85°C for durability.
- Surface mount type with solder termination on the bottom for efficient assembly.
- Halogen-free version available compliant with IEC61249-2-21 standards.
Product Description
Hirose FH26W-51S-0.3SHW(97) is a high precision FPC Connector from the FH26 series featuring a fine 0.3 mm pitch and a 51-way straight female contact arrangement. Engineered for surface mount technology, this connector incorporates a zero insertion force (ZIF) rotating actuator that facilitates easy insertion of flexible printed circuits and ensures reliable retention with a tactile click upon full closure.
The connector's phosphor bronze contacts have gold plating enhancing conductivity and corrosion resistance. Its low profile housing made of polyamide is only 1.0 mm in height, supporting board space optimization essential for modern compact electronics.
Precise FPC alignment is aided by non-protruding metal fittings, minimizing PCB footprint while providing mechanical stability. The double-sided leads with a 0.6 mm pitch simplify the mounting process and allow the connector to be placed over conductive PCB traces without short circuits due to the enclosed design.
Operating reliably in harsh temperature conditions from -55°C to 85°C, this connector supports an AC voltage of up to 30 volts and a current capacity of 200 mA. It includes a locking mechanism to maintain secure contact and prevent accidental disconnections.
The FH26W version meets halogen-free standards according to IEC61249-2-21, addressing environmental safety. This connector is widely applicable in miniaturized portable equipment including PDAs, mobile phones, notebook PCs, DVD players, and portable audio devices.
Zero insertion force ZIF design for simple and secure FPC connection. Low profile 1.0 mm height allows compact PCB layouts. Gold plated phosphor bronze contacts ensure electrical integrity. Surface mount with solder termination supports automated PCB assembly.
Wide operating temperature range for robust performance. Halogen-free compliant version available for safer electronics manufacturing. Includes locking mechanism for retention assurance. Suitable for miniature mobile and portable electronic devices.
Explore the comprehensive range of Hirose connectors available at EnvMart for electronic component solutions tailored to advanced PCB designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 200 mA.
The maximum operating temperature is 85°C.
It features a solder termination type for efficient assembly.
The contact pitch is 0.3 mm.
This connector has 51 contacts arranged in a straight female configuration.
The contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
The minimum operating temperature is -55°C.
The orientation of this model is straight.
The housing is made of polyamide, contributing to its low profile design.
It supports an operating voltage of up to 30 V AC.
It incorporates a zero insertion force (ZIF) mechanism that ensures easy insertion and secure retention with a tactile click upon closure.
Yes, there is a halogen-free version available that complies with IEC61249-2-21 standards.
