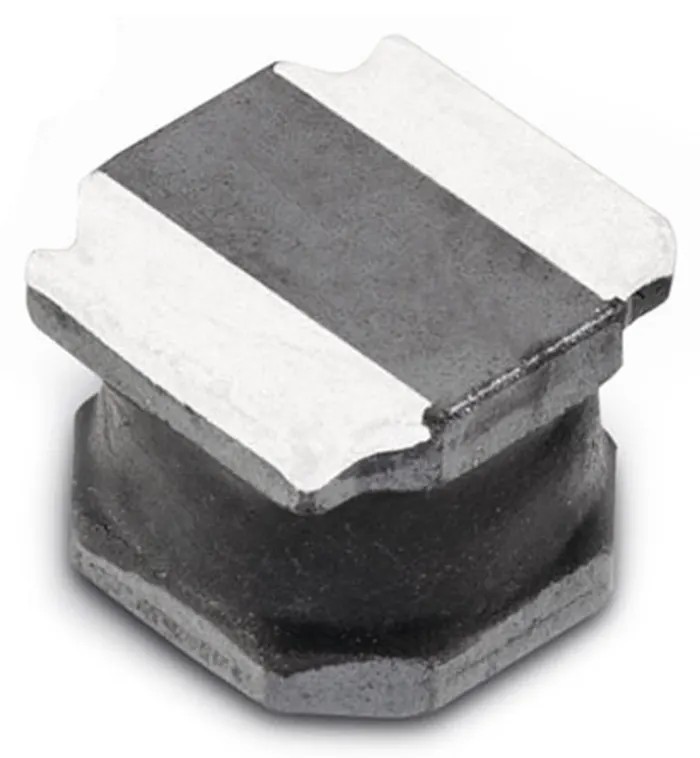

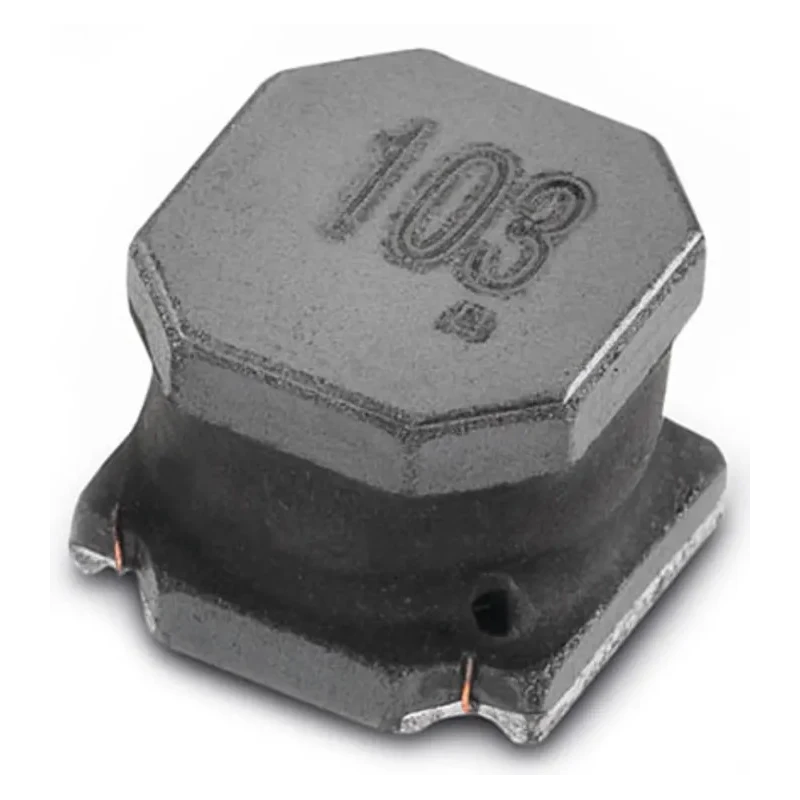

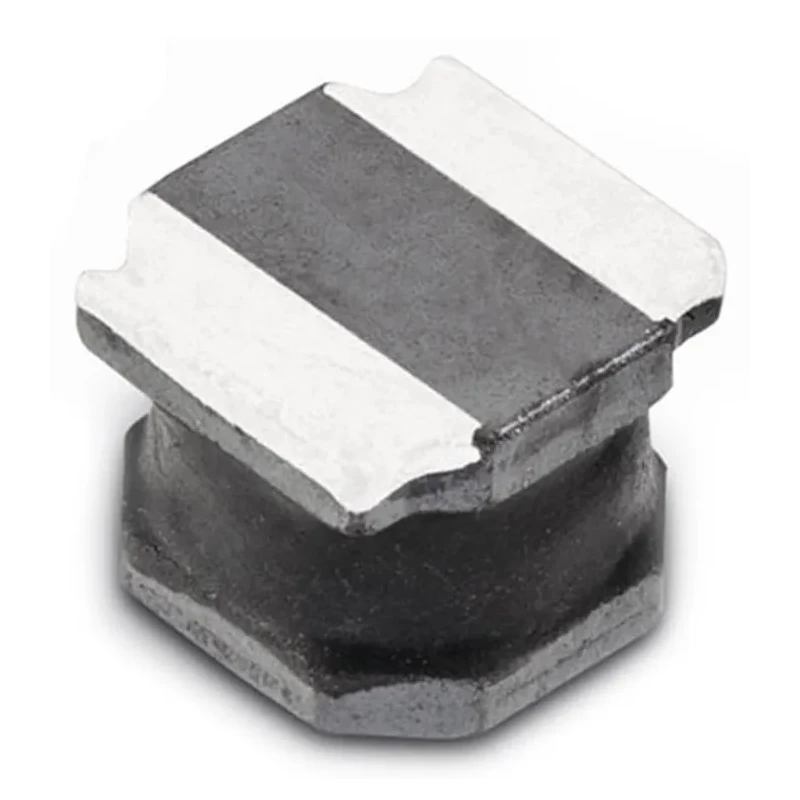

Wurth Elektronik WE-LQS 8065 Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 mH ±20 % 480 mA Idc 74404086102

Wurth Elektronik 74404086102 is a high-quality shielded wirewound surface mount inductor from the WE-LQS series with a ferrite core, offering 1 mH inductance and a tolerance of ±20%.

This component is engineered to handle a maximum DC current of 480 mA, making it suitable for various electronic applications requiring stable inductance and current capacity.

The inductor comes in a compact 8065 package size (8 mm length, 6.5 mm height, 8 mm depth) and is supplied in tape and reel packaging, enabling efficient automated PCB assembly processes.

It is designed for operation across a wide temperature range from -40°C up to 125°C, ensuring reliability in harsh environmental conditions. The magnetically shielded design reduces electromagnetic interference, enhancing circuit performance in sensitive applications.

The WE-LQS inductor construction utilizes a ferrite core and wirewound methodology, combining low DC resistance of 2.35 Ω with high efficiency. It complies with recognized standards including IEC 61249-2-21, JEDEC JS709B, REACH, RoHS, and the automotive AEC-Q200 qualification, affirming its quality and suitability for automotive use.

Its surface mount termination style facilitates modern PCB manufacturing techniques. With a maximum self-resonant frequency of 1.39 MHz, this inductor is ideal for power supply filters, DC/DC converters, and high frequency switching applications in industries such as telecommunications, computing, industrial electronics, automotive, and consumer electronics.

The inductor provides a maximum DC current rating of 480 mA. It is packaged in an 8065 case size with tape and reel packaging for automated assembly. The component supports a temperature range from -40°C to 125°C for reliable performance.

Includes magnetically shielded design to minimize interference. Constructed with a ferrite core and wirewound inductor construction for efficiency. Maximum DC resistance is 2.35 Ω ensuring low power loss. Complies with AEC-Q200 automotive standard for durability.

Surface mount termination style suitable for PCB assembly. Certified with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards. Designed to operate with a maximum self-resonant frequency of 1.39 MHz. Explore more Wurth Elektronik Surface Mount Inductors and passive components at EnvMart to find reliable solutions tailored to your electronic design needs.
