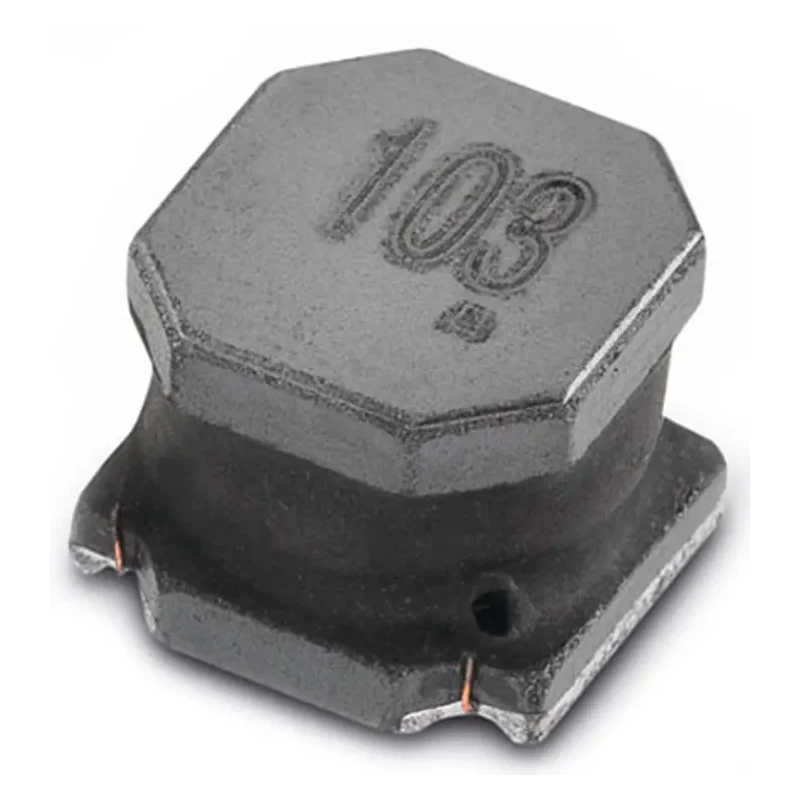

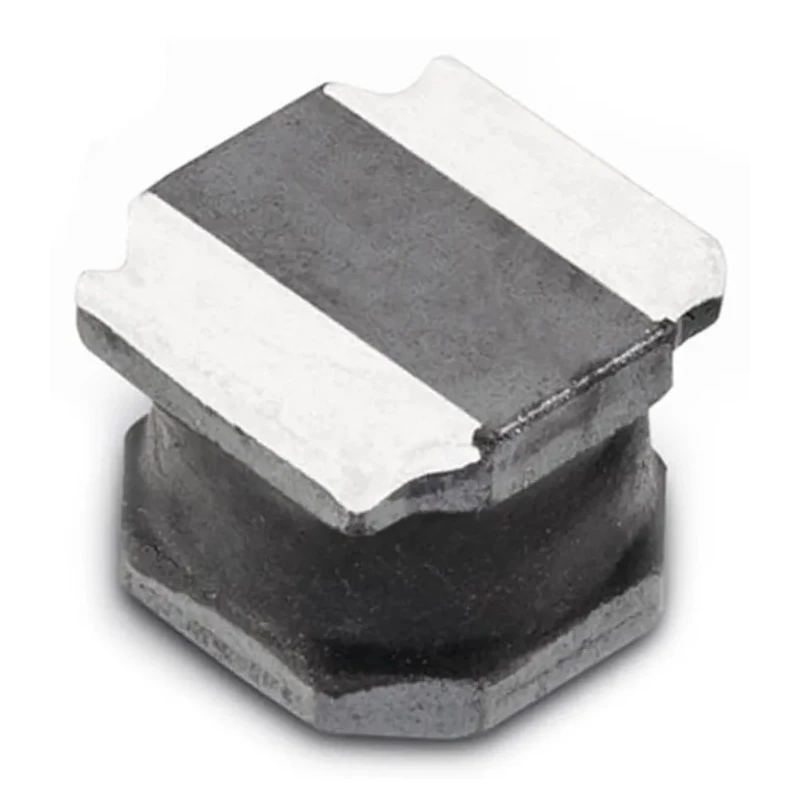

Wurth Elektronik WE-LQS 8065 Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 mH ±20% 310 mA 74404086222
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 8mm |
| Depth | 8mm |
| Packaging | Tape & Reel |
| Series | WE-LQS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2mH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 8065 |
| Maximum DC Current | 310mA |
| Pin Count | 2 |
| Maximum DC Resistance | 5Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 924kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 8065 package with dimensions 8mm length, 6.5mm height, and 8mm depth.
- Wirewound construction providing robust magnetic shielding.
- Suitable for automotive use compliant with AEC-Q200 standard.
- Maximum DC resistance of 5 ohms to minimize power loss.
- Wide operating temperature range from -40°C to 125°C for versatile applications.
- Moulded ferrite core ensuring durability and stable inductance.
- Maximum self-resonant frequency of 924 kHz for better frequency response.
- Surface mount termination style compatible with SMT assembly lines.
Product Description
Wurth Elektronik 74404086222 WE-LQS series shielded wirewound surface mount inductor incorporates a ferrite core, offering 2.2 mH inductance with ±20% tolerance and a maximum DC current rating of 310 mA. This compact inductor is designed to provide effective magnetic shielding with a robust moulded wirewound construction, making it suitable for high-performance electronic applications.
The 8065 package measures 8mm in length, 6.5mm in height, and 8mm in depth, ensuring a sturdy yet compact footprint on surface mount PCB layouts. Its maximum DC resistance is 5 ohms, effectively minimizing power loss and improving efficiency in circuits.
Designed to withstand harsh conditions, this inductor meets the automotive standard AEC-Q200 and operates reliably in temperatures ranging from -40°C to 125°C. The ferrite core material contributes to stable inductance performance and resilience, while the maximum self-resonant frequency of 924 kHz enables effective operation in a broad frequency spectrum.
Compact 8065 package size suitable for space-constrained applications. Wirewound magnetically shielded construction for low electromagnetic interference. High temperature durability with operating range from -40°C to 125°C.
Compliance with international standards including IEC 61249-2-21 and JEDEC JS709B. Designed for automotive and portable electronic devices. Surface mount termination style for automated PCB assembly. Low DC resistance to reduce energy losses.
Ferrite core for enhanced magnetic performance. Suitable for power management and DC/DC converter circuits.
This Wurth Elektronik inductor is ideal for industrial, automotive, and consumer electronics, delivering reliable performance in switching controllers, portable power supplies, smartphones, digital cameras, and related devices. Its magnetically shielded wirewound design caters to demanding applications where efficiency and EMI reduction are critical.
Explore our extensive catalog for additional electronic components and Surface Mount Inductors to suit your design needs with confidence at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 2.2 mH with a tolerance of ±20%.
The dimensions of the 8065 package are 8mm in length, 6.5mm in height, and 8mm in depth.
This model has a maximum DC current rating of 310 mA.
The maximum DC resistance is 5 ohms, which helps minimize power loss.
It operates reliably within a temperature range of -40°C to 125°C.
This inductor complies with AEC-Q200, IEC 61249-2-21, and JEDEC JS709B standards.
The maximum self-resonant frequency is 924 kHz, allowing for effective operation across a wide frequency range.
It features a wirewound construction with a ferrite core, providing robust magnetic shielding.
The inductor has a surface mount termination style, making it compatible with SMT assembly lines.
It is packaged in tape and reel format, suitable for automated assembly processes.
This inductor is suitable for automotive and portable electronic devices, including power management and DC/DC converter circuits.
This inductor has a pin count of 2, which is standard for surface mount applications.
