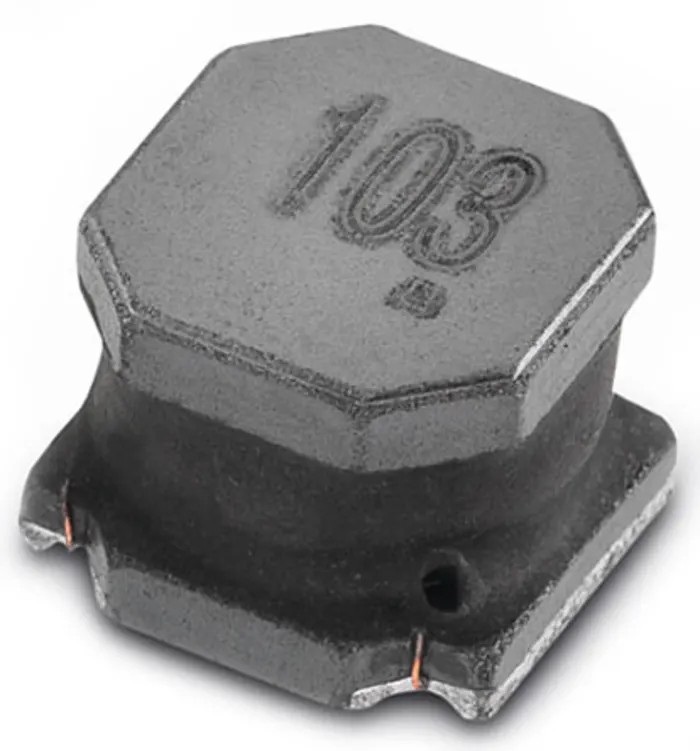

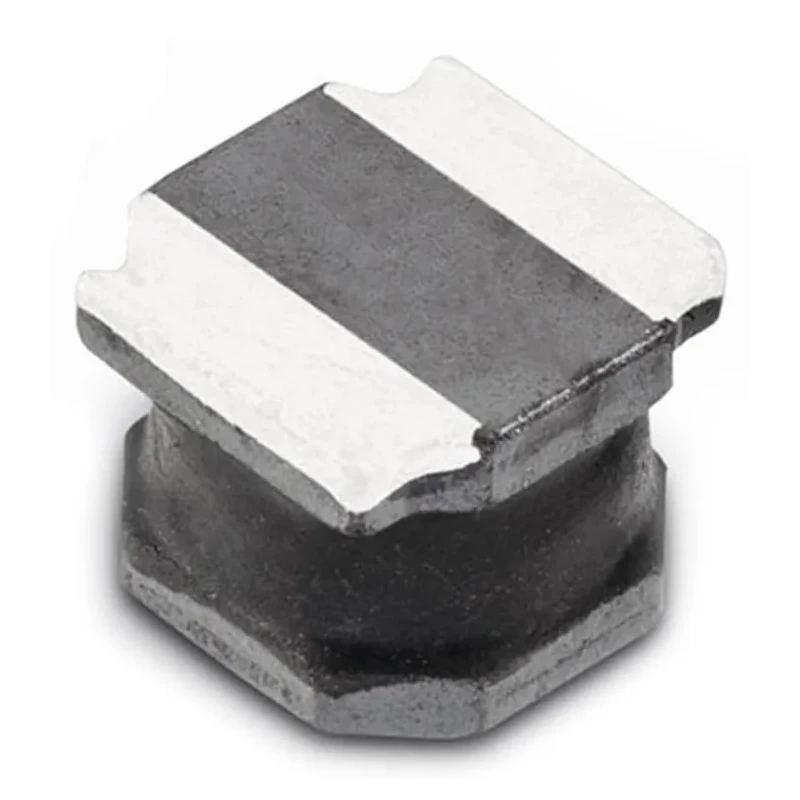

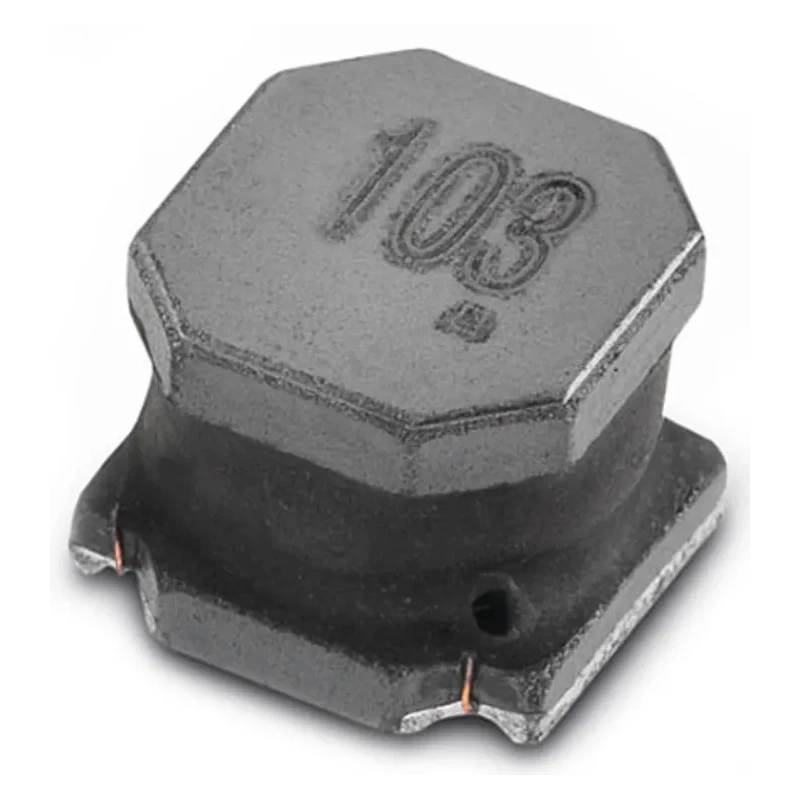

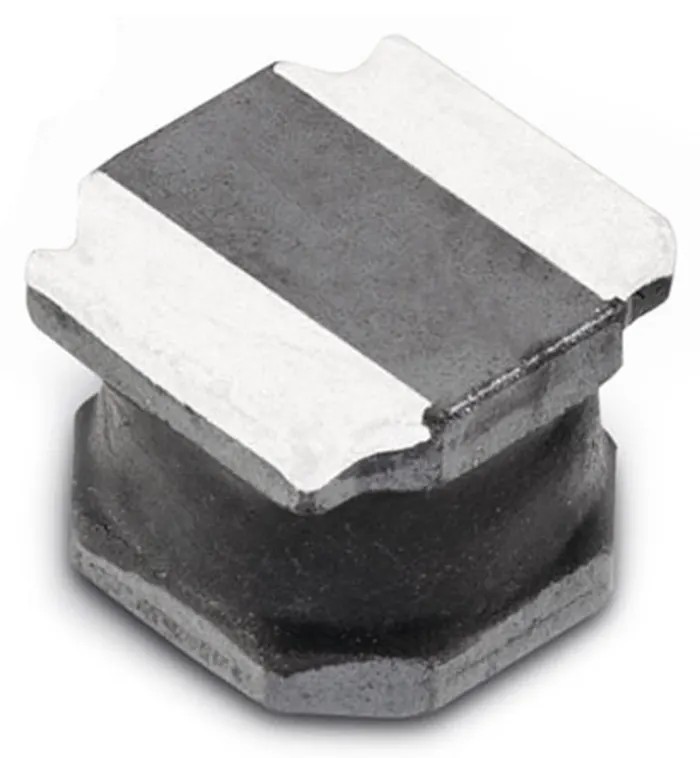

Wurth Elektronik WE-LQS 8065 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 10mH ±20% 130mA DC 74404086103

Name: Wurth Elektronik WE-LQS 8065 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 10mH ±20% 130mA DC 74404086103
Brand: Wurth Elektronik
SKU: 203159
Price: 1.24 USD
Availability: InStock



Category Surface Mount Inductors Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	6.5mm
Length	8mm
Depth	8mm
Packaging	Tape & Reel
Series	WE-LQS
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10mH
Standards/Approvals	RoHS, REACH, JEDEC JS709B, IEC 61249-2-21
Package/Case	8065
Maximum DC Current	130mA
Pin Count	2
Maximum DC Resistance	22.8Ω
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	411kHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Compact 8065 package suitable for surface mounting applications.
Magnetically shielded construction reduces EMI and allows installation close to other components.
Ferrite core material provides stable inductance and low losses.
Maximum operating temperature up to 125°C ensures reliable performance in harsh environments.
Meets automotive standard AEC-Q200 for high reliability.
Tape and reel packaging facilitates automated PCB assembly.
Wirewound inductor construction offers low DC resistance of 22.8Ω for enhanced efficiency.
Provides maximum self resonant frequency of 411kHz for effective filtering in power circuits.

Product Description

Wurth Elektronik 74404086103 is a high-quality shielded wirewound surface mount inductor from the WE-LQS series, featuring a ferrite core and a nominal inductance of 10mH with a ±20% tolerance. Rated for a maximum DC current of 130mA, this inductor excels in compact power electronics and switching power supply designs.

The 8065 package size (8 mm length, 6.5 mm height, and 8 mm depth) makes it well suited for space-constrained surface mount assembly. Magnetic shielding minimizes electromagnetic interference, enabling high-density circuit layouts without performance degradation. Constructed with a ferrite core and wirewound coil, it ensures stable inductive properties and efficient power handling.

Designed to meet the stringent AEC-Q200 automotive standard and tolerate operating temperatures from -40°C to 125°C, it is reliable for use in automotive and industrial environments. The low DC resistance of 22.8Ω enhances overall circuit efficiency, while a maximum self-resonant frequency of 411kHz supports efficient noise suppression and power conversion.

The component is moulded and supplied in tape and reel packaging, facilitating high-volume automated PCB assembly. Compliance with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards ensures adherence to environmental and quality requirements. Applications encompass power inductors in DC/DC converters, power supplies for portable devices such as smartphones and PDAs, and general-purpose power electronics in consumer electronics and automotive sectors.

Compact 8065 package for surface mount technology. Magnetic shielding to reduce EMI and increase layout flexibility. Ferrite core for efficient inductance and low losses. Wide operating temperature range from -40°C to 125°C.

High reliability compliant with automotive AEC-Q200 standard. Low DC resistance of 22.8Ω improves power efficiency. Tape and reel packaging supports automated assembly processes. Maximum self-resonant frequency of 411kHz for effective noise filtering.

RoHS and REACH compliant for environmental safety. Suitable for power electronics, automotive, and portable device applications. Explore more Wurth Elektronik Surface Mount Inductors and other electronic components at EnvMart for your industrial and electronic design needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal inductance of this inductor is 10mH with a tolerance of ±20%.

This model has a maximum DC current rating of 130mA.

The dimensions of the 8065 package are 8mm in length, 6.5mm in height, and 8mm in depth.

The maximum operating temperature for this inductor is 125°C.

This inductor features a ferrite core material, which provides stable inductance and low losses.

The maximum self-resonant frequency of this model is 411kHz.

This inductor complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.

It is packaged in tape and reel format, which facilitates automated PCB assembly.

This inductor meets the AEC-Q200 automotive standard for high reliability.

The inductor is constructed as a wirewound type, which enhances its efficiency.

The maximum DC resistance of this inductor is 22.8Ω.

This inductor can be used in power inductors for DC/DC converters, power supplies for portable devices, and general-purpose power electronics in automotive and consumer electronics.
