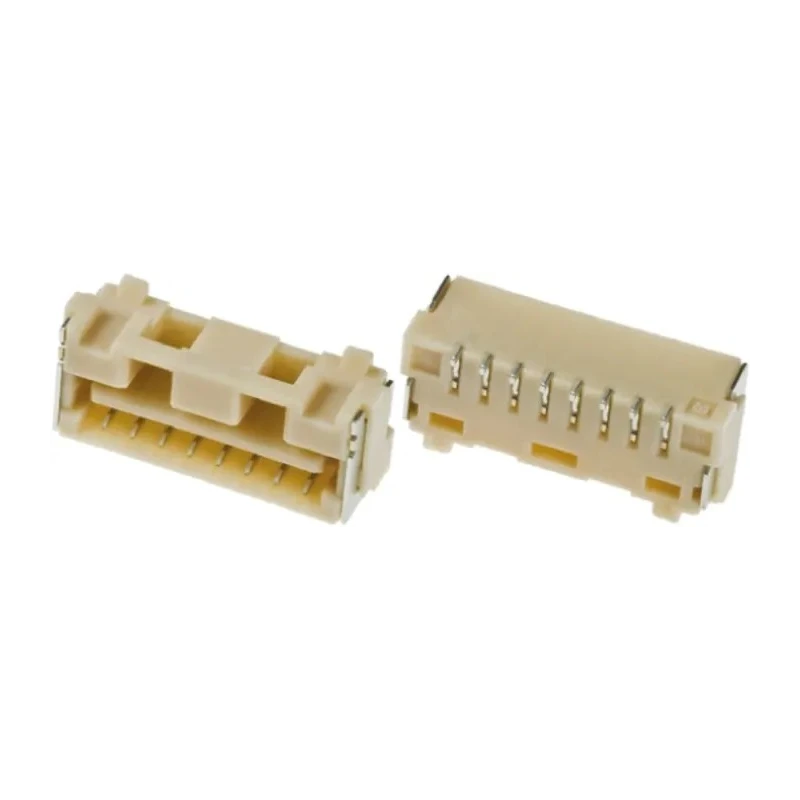

Molex CLIK-Mate Series Right Angle Surface PCB Socket 8-Contact 1 Row 1.25 mm Pitch Solder 502386-0870

Name: Molex CLIK-Mate Series Right Angle Surface PCB Socket 8-Contact 1 Row 1.25 mm Pitch Solder 502386-0870
Brand: Molex
SKU: 202374
Price: 0.82 USD
Availability: InStock



Category PCB Sockets Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	Molex
Orientation	Right Angle
Current	12A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper
Series	CLIK-Mate
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Female
Connector System	Wire-to-Board, Signal

Key Features

Offers robust positive lock for secure mating retention.
Wire-to-board connector system suitable for signal applications.
Thermoplastic housing material ensures durability.
Operating temperature range from -40°C to 105°C for varied environments.
Rated for 12A current and 50V voltage applications.
Copper contacts with tin plating for reliable conductivity.
Right angle orientation facilitates PCB layout efficiency.
Designed for SMT mounting with surface mount compatibility.

Product Description

Molex 502386-0870 CLIK-Mate Series Right Angle Surface PCB Socket features 8 contacts in a single row with a 1.25 mm pitch solder termination. This wire-to-board connector employs a thermoplastic housing and copper contacts plated with tin, designed for surface mount technology (SMT) mounting.

Its right angle orientation helps optimize PCB layout by reducing board space. The connector supports a current rating of 12A and voltage up to 50V, with an operating temperature range from -40°C to 105°C, suitable for a variety of industrial and electronic applications.

The CLIK-Mate series includes a lock design offering ease of use with superior mating retention, utilizing a unique tuning-fork terminal concept for low insertion force and secure contact. This design offers approximately 60% space savings compared to similar dual-lock 2.00 mm pitch connectors.

Typical use cases include LCD TVs and other electronic assemblies that require high pin count connectors in limited space. The robust positive lock mechanism ensures reliable and secure connections in demanding industrial and commercial environments.

Robust positive lock provides secure mating retention. Low insertion force tuning-fork terminal concept. Compact 1.25 mm pitch reduces space requirements. Thermoplastic housing resistant to environmental stress. Supports 12A current and 50V voltage ratings.

Wide operating temperature from -40°C to 105°C. Copper contacts with tin plating ensure reliability. Right angle socket orientation for efficient PCB design. Surface mount compatible for SMT assembly. Ideal for electronic, industrial, and commercial PCB applications.

This component is essential for high-density electronic designs requiring reliable, space-saving wire-to-board connections. Molex's CLIK-Mate series supports precision and durability in electronic manufacturing and assembly lines.
