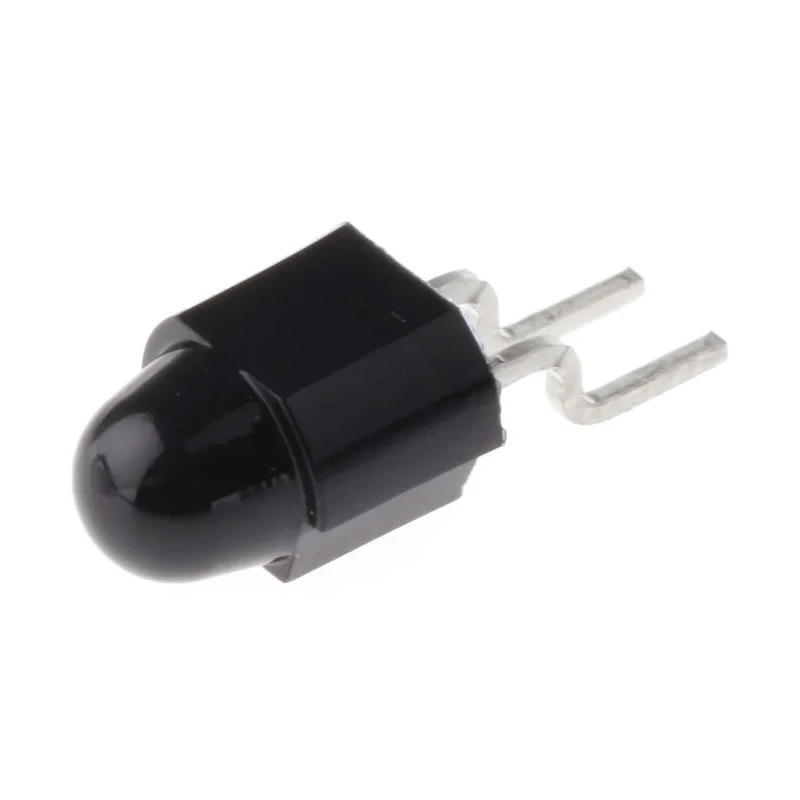

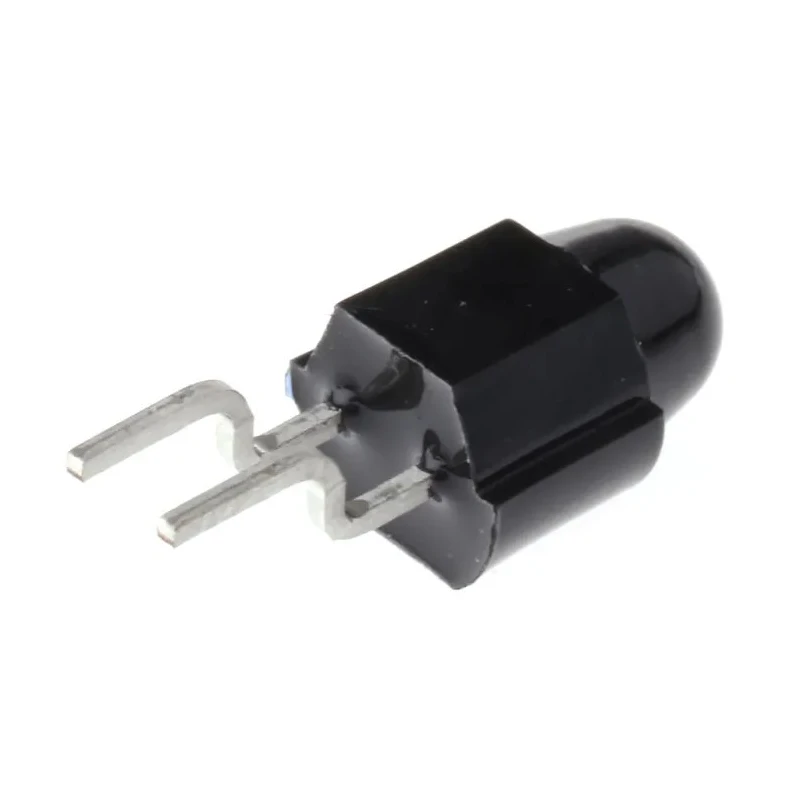

ams OSRAM Infrared Photodiode, 60 ° Half Sensitivity Angle, Surface SMR Package SFH 2500 FA

The ams OSRAM SFH 2500 FA is a high-quality infrared photodiode housed in a durable Surface Mount SMR package, ideal for sensitive infrared detection applications. Featuring a radiant sensitive area of 1 x 1 mm², this photodiode is engineered to deliver precise and fast response with typical rise and fall times of 40 ns, supporting advanced electronic components for measurement and detection.

Operating reliably within a temperature range from -40°C to 85°C, the photodiode sustains performance across various industrial environments. Its spectral sensitivity peaks at 900 nm with detection ranging from 750 nm to 1100 nm, making it suitable for applications in industrial automation, instrumentation, and electronic sensing.

The device includes a forward polarity configuration with 2 pins and requires no amplification, simplifying integration into circuits. It features a robust breakdown voltage of 20 V and a maximum open circuit voltage of 350 mV, ensuring operational safety and functional stability in complex system designs.

Compact dimensions of 7.7 mm length, 6 mm width, and 6 mm height in the SMR surface mount configuration allow for efficient PCB layout and reduced space consumption, while its 60 ° angle of half sensitivity ensures focused infrared reception.

This photodiode is compliant with RoHS requirements, promoting environmentally responsible manufacturing and usage. Its low dark current of 5 nA and a short circuit current of 71 μA further enhance its reliability for precision tasks in electronics and optoelectronics.

Detects infrared spectrum with peak wavelength sensitivity at 900 nm. Operates effectively within temperature range of -40°C to 85°C. Compact SMR surface mount package measuring 7.7 mm length, 6 mm width, and 6 mm height.

Features 2 pins with forward polarity and no amplification required. Provides fast response with typical rise and fall times of 40 ns each. Offers a breakdown voltage of 20 V and an open circuit voltage of 350 mV. Short circuit current rated at 71 μA and dark current of 5 nA ensuring precise photodetection.

Compliant with RoHS standards ensuring environmental safety.

This infrared photodiode is ideal for use in industrial automation, scientific instruments, electronic measuring devices, optocoupler systems, and other applications requiring precise infrared sensing.
