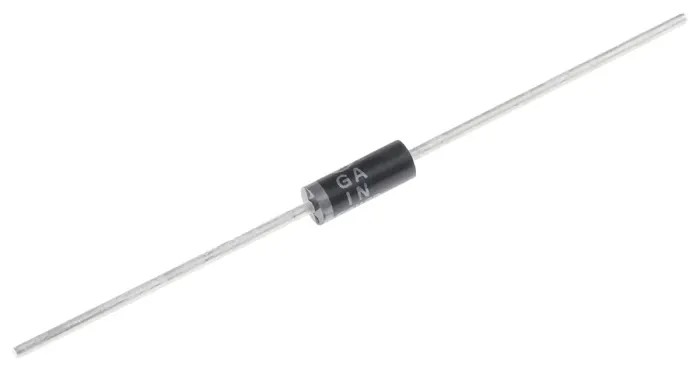

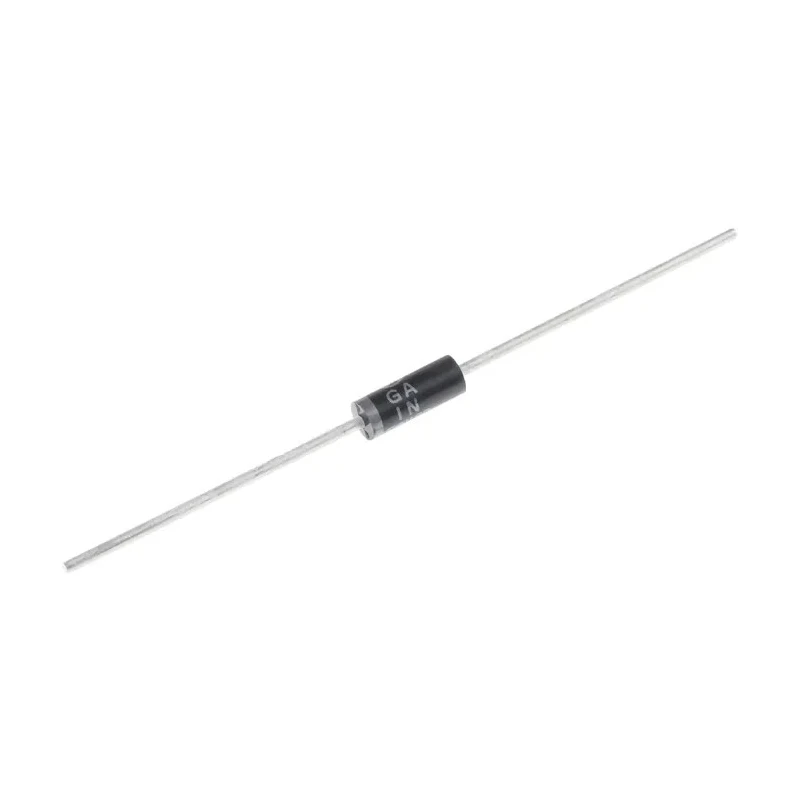

onsemi 11 V 5 W Voltage Regulator Zener Diode, Single, Through Hole 2-Pin DO-15 1N5348BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5348BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 125mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 11V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
Key Features
- The diode configuration is single with 2 pins for through hole mounting.
- Operates with a maximum power dissipation of 5 watts ensuring efficient voltage regulation.
- Test current is 125 mA with low maximum reverse leakage current of 5 μA.
- Operates efficiently over a temperature range of -65°C to 200°C.
- Constructed with corrosion-resistant materials and molded package for durability.
- Package type is DO-15 axial leaded with a length of 8.89 mm and height of 3.68 mm.
- This device is designed with silicon-oxide passivated junctions for better characteristics.
- Ideal for industrial voltage regulation, power supply protection, and electronic device applications.
Product Description
onsemi 1N5348BRLG is a high-performance Zener Diode designed for voltage regulation in industrial and electronic applications. This diode features a nominal Zener voltage of 11 V and a maximum power dissipation of 5 W, making it suitable for reliable voltage stabilization and voltage regulation tasks.
The device is housed in a robust DO-15 axial-leaded package with through hole mounting for easy installation in various electronic circuit boards. It incorporates a single diode configuration with silicon-oxide passivated junctions, ensuring tight voltage regulation performance and better operating characteristics.
With a test current of 125 mA and a maximum reverse leakage current of merely 5 µA, it maintains efficiency and minimal power loss. The diode operates reliably across a wide temperature range from -65°C to 200°C and features corrosion-resistant external surfaces that ensure durability in common environmental conditions.
This Zener diode is commonly used in industrial power supply circuits for voltage regulation, overvoltage protection, and signal processing applications. Its molded package allows for void-free thermosetting plastic encapsulation providing excellent protection and mechanical stability.
The diode configuration is single with 2 pins supporting through hole mounting. Nominal Zener voltage of 11 V with ±5% tolerance for precise voltage regulation. Maximum power dissipation of 5 W for sustained and reliable operation.
Test current of 125 mA and low maximum reverse leakage current of 5 μA ensure minimal losses. Wide operating temperature range from -65°C to 200°C suitable for varied industrial environments. Durable molded DO-15 package with corrosion resistant surfaces and axial lead configuration.
Ideal for industrial electronic circuits requiring stable voltage regulation and protection. Series: 1N53 range, recognized for quality and performance in voltage regulator diodes. Explore our comprehensive Electronics & Electricals category at EnvMart for more semiconductors and discrete components from trusted manufacturers like onsemi.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 11 V with a tolerance of ±5%.
This model has a maximum power dissipation of 5 W, ensuring efficient voltage regulation.
The test current for this Zener diode is 125 mA.
The maximum reverse leakage current for this diode is 5 μA, which helps in maintaining efficiency.
It operates efficiently over a temperature range from -65°C to 200°C.
This diode is housed in a DO-15 axial-leaded package suitable for through hole mounting.
The diode configuration is single with 2 pins.
The maximum Zener impedance is 2.5 Ω.
It is constructed with corrosion-resistant materials and features a molded package for durability.
It is ideal for industrial voltage regulation, power supply protection, and electronic device applications.
This model belongs to the 1N53 series, known for its quality and performance in voltage regulation.
The country of origin for this diode is India.
