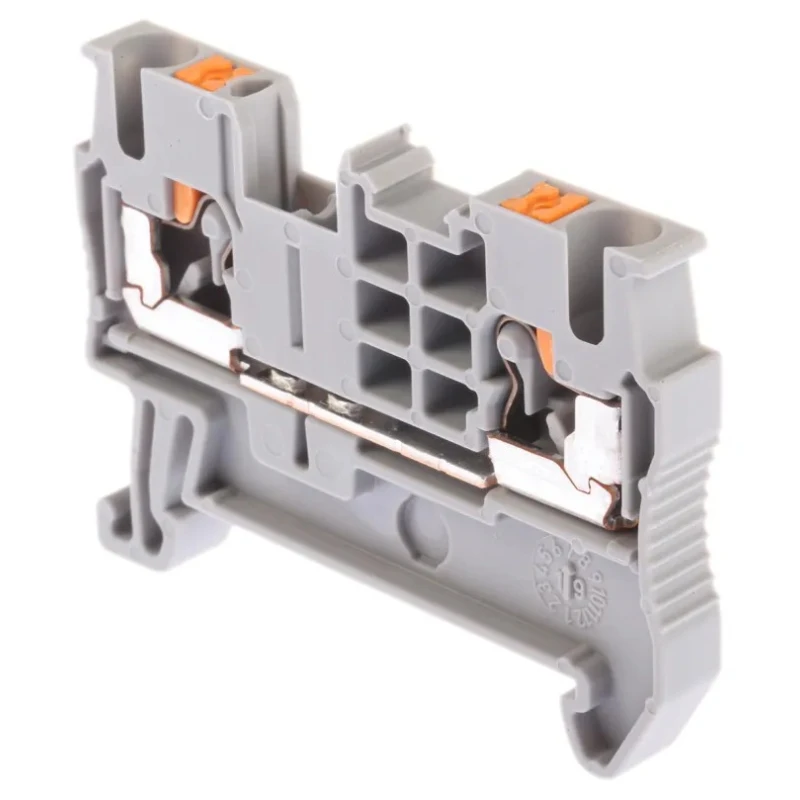

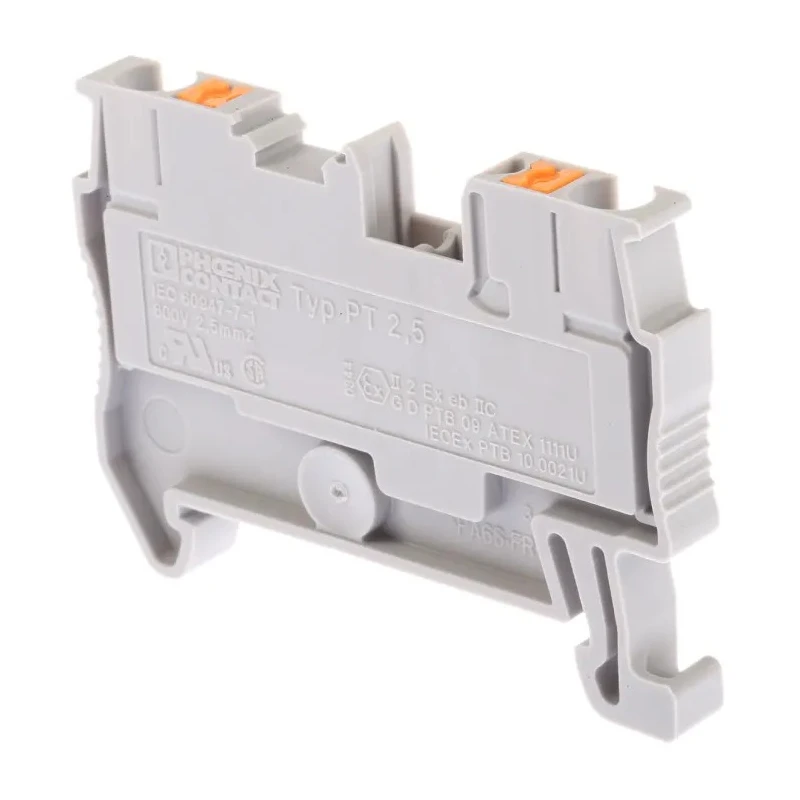

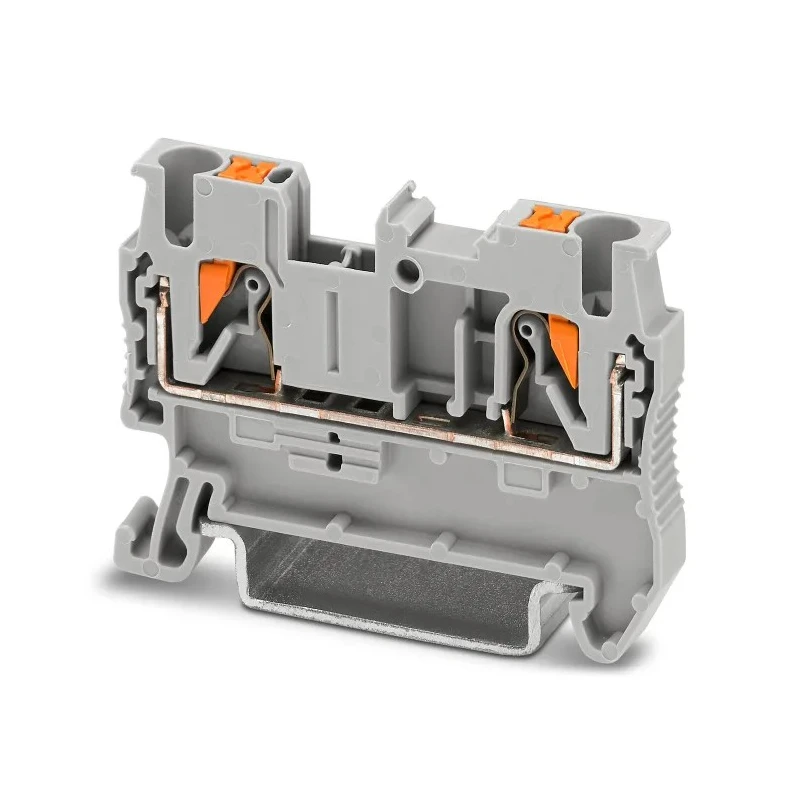

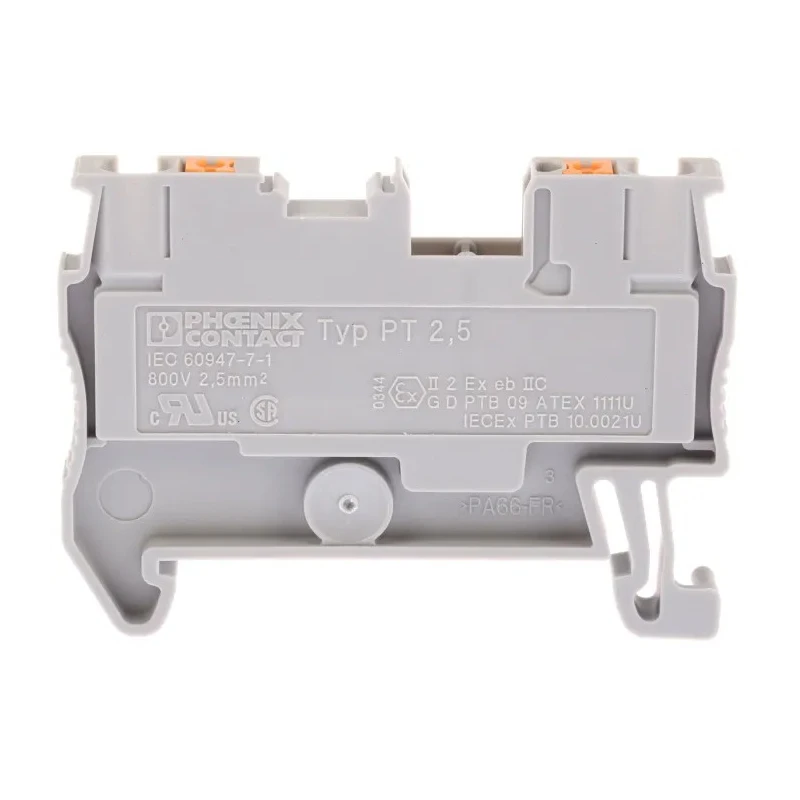

Phoenix Contact Feed Through Terminal Block PT 2.5 Series Grey 800V 24A Push-in Termination 1-Level 3209510

The Phoenix Contact 3209510 model is a PT 2.5 series feed through terminal block, designed for secure and efficient electrical connections in industrial and process automation environments. Featuring a high nominal current rating of 24A and rated for 800V, this terminal block supports a wide wire range from 0.14mm² (26 AWG) to 4mm² (12 AWG), facilitating versatile usage. It is engineered with a robust grey polyamide (PA) housing that offers excellent insulation and mechanical durability, including resistance to shocks up to 18ms.

This single-level terminal block uses push-in termination technology, allowing tool-free, fast, and reliable wire insertion, which significantly reduces installation time and labor costs. Its open side panel design provides easy access for terminal inspection or maintenance without the need for removing the entire block.

The product is engineered for demanding industrial conditions with an operational temperature range from -60°C to 105°C. Its certification for hazardous areas with ATEX approval, alongside CCC, CSA, cULus, EAC Ex, IECEx, and UL standards, ensures safe and compliant deployment in challenging environments.

The UL 94-V0 flammability rating indicates that the housing material self-extinguishes within 10 seconds, reducing fire risk. This terminal block is ideal for machine building, process industry, manufacturing plants, and HVAC applications that require reliable and secure electrical connections on DIN rails.

Phoenix Contact confirms this terminal block is manufactured in Germany, reflecting high-quality standards consistent with industrial demands. Single-level, 1-position feed through terminal block for DIN rail mounting. Push-in connection technology for quick, tool-free assembly.

Supports wire sizes from 0.14mm² up to 4mm². Robust PA housing with shock resistance and UL 94-V0 flammability rating. High current rating of 24A and voltage rating of 800V. Wide operating temperature range of -60°C to 105°C.

Certified ATEX hazardous area compliant. Open side panel for easy terminal access and maintenance.

This feed through terminal block is well suited for electronics and electrical engineering industries requiring dependable and safe terminal solutions. Browse the EnvMart catalogue for a wide selection of Terminal Blocks and electrical connectors from Phoenix Contact and other leading manufacturers.
