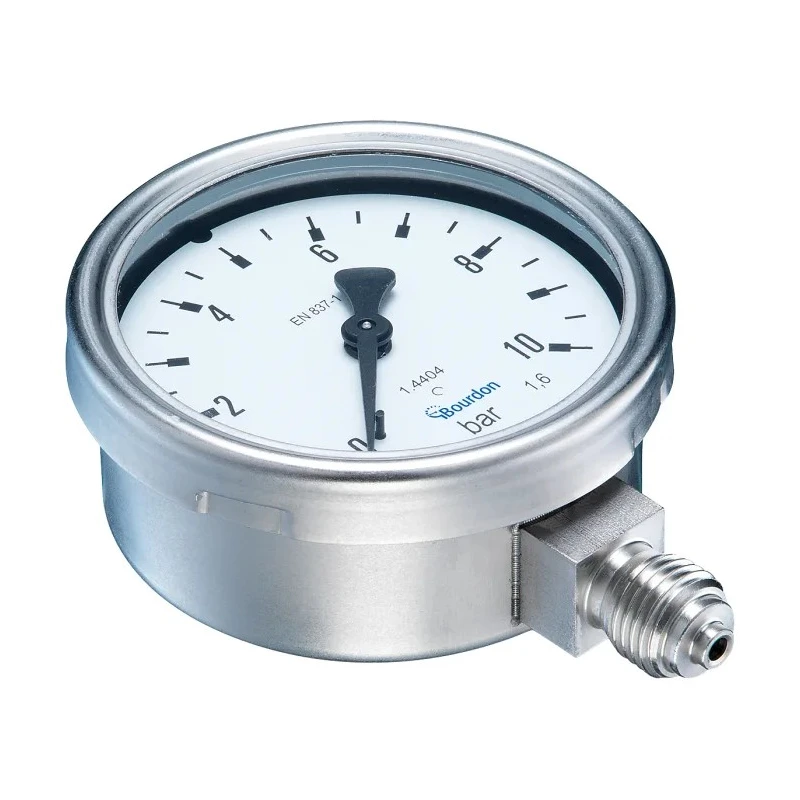

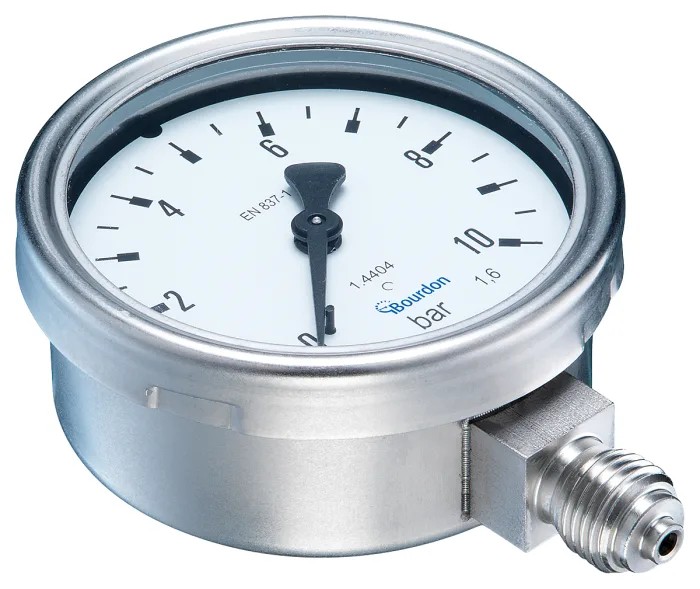

Bourdon Stainless Steel 63 mm White Dial Bottom Pressure Gauge 16 bar MEX3-D20.B24

Bourdon MEX3-D20.B24 is a stainless steel industrial pressure gauge featuring a 63 mm nominal dial size and a maximum pressure measurement of 16 bar. Designed with precision, it delivers ±1.6% accuracy class in compliance with EN 837-1 standards and is suitable for measuring pressures from 0 to 16 bar. The gauge incorporates a white dial face with clear black lettering and a black plastic pointer for enhanced readability.

The pressure gauge is built with stainless steel wetted parts, making it highly resistant to corrosive gases and liquids, and includes a fully welded process connection. Its bottom entry connection type with a G 1/4 size ensures compatibility with various industrial systems. Operating temperatures can reach up to 70°C, and the gauge conforms to ATEX II2GDc-IM2c explosion protection standards and IP65 ingress protection.

This pressure gauge finds applications across multiple industries including food and beverage processing, laboratory and medical sectors, oil and gas, chemical manufacturing, water and wastewater treatment, energy production, transportation logistics, and general machinery monitoring.

Manufactured in France, Bourdon pressure gauges deliver reliable and durable performance suitable for demanding industrial environments. The robust stainless steel case and high-quality components ensure long service life with minimal maintenance.

The pressure gauge offers ±1.6% accuracy class as per EN 837-1 standard. It features a white dial face with black lettering and a black plastic pointer. Constructed with stainless steel wetted parts to resist corrosive gases and liquids.

Designed for bottom entry with a G 1/4 connection size and type. Suitable for a maximum operating temperature of 70°C and complies with ATEX II2GDc-IM2c certification. Ideal for applications in food and beverage, laboratories, oil, gas, chemical industries, water treatment, energy, transportation, and machinery.

Manufactured in France ensuring high quality and reliability. Explore more industrial Pressure Gauges and related instruments within EnvMart's comprehensive catalog to select suitable products for your precise measurement requirements.
