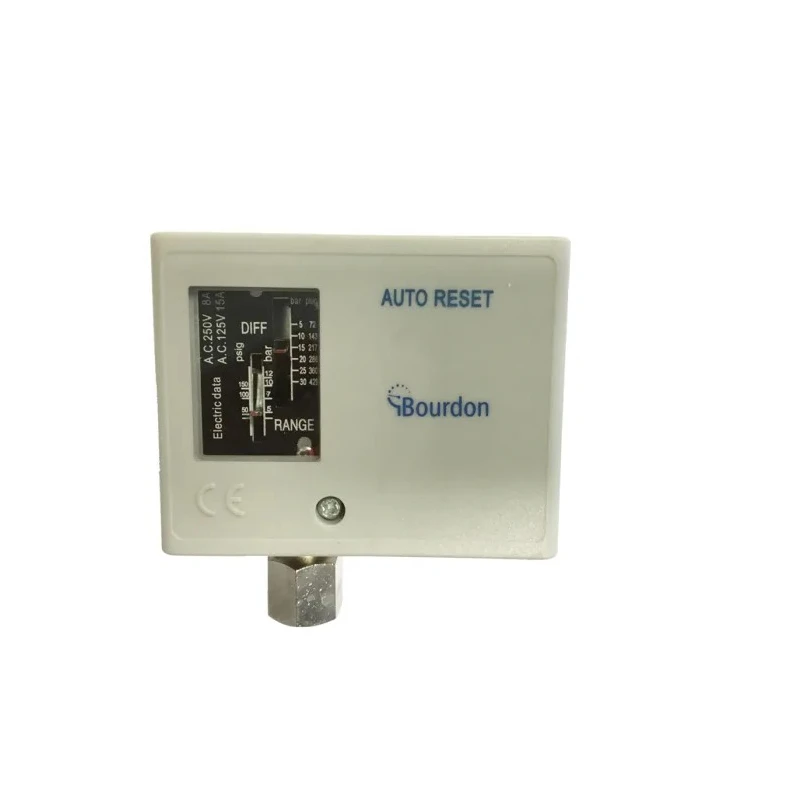

Bourdon Bourdon Pressure Switch 3 bar to 16 bar Voltage 220, 24V AC Panel Mount Differential Pressure Switch UT16
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 220, 24V ac |
| Brand | Bourdon |
| Maximum Operating Pressure | 16 bar |
| Height | 930mm |
| Model | UT16 |
| Depth | 46.5mm |
| IP Rating | IP32 |
| Width | 80mm |
| Mount Type | Panel |
| Series | UT |
| Maximum Operating Temperature | 60°C |
| Pressure Type | Differential |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -10°C |
| Connection Thread Standard | BSP |
| Minimum Operating Pressure | 3bar |
| Port Gender | Female |
| Suitable Medias | Air, Water, Oil |
Key Features
- Suitable for air, water, and oil pressure media.
- Operates reliably within a temperature range of -10°C to 60°C.
- Equipped with a 1/4 inch BSP female port connection.
- Designed for applications including boilers, water treatment, firefighting systems, and compressors.
- Constructed for panel mounting with IP32 rating.
- Field adjustable and reliable for industrial environments.
- Manufactured in India with no hazardous area certification.
Product Description
Bourdon UT16 Pressure Switch is a reliable and compact differential pressure switch designed for industrial and fluid power applications. With a minimum operating pressure of 3 bar and a maximum of 16 bar, it is suited for monitoring and controlling pressure in systems using air, water, or oil media.
The panel mount switch features a 1/4 inch BSP female port connection ideal for easy installation. Its operating temperature range from -10°C to 60°C makes it suitable for diverse environments, including boilers, water treatment plants, firefighting systems, and compressors.
Constructed to withstand moderate industrial conditions, the UT16 operates at voltages of 220 and 24V AC and includes an auto reset function for operational efficiency. Its compact design with dimensions of 930 mm height, 80 mm width, and 46.5 mm depth allows for space-saving integration.
With an IP32 ingress protection rating, this pressure switch provides protection against solid objects but is not fully dust or water resistant, fitting non-hazardous industrial settings. It does not carry hazardous area certifications.
Compact, economical, and reliable pressure switch. Field adjustable and auto-reset features enhance usability. Suitable for air, water, and oil pressure media. Panel mount type with BSP threaded female port. Operates within temperature range -10°C to 60°C.
Voltage: 220 and 24V AC for versatile electrical compatibility. Used in boilers, water treatment, firefighting, and compressor applications. Dimensions: Height 930 mm, Width 80 mm, Depth 46.5 mm. Ingress Protection IP32, no hazardous area certification.
Manufactured in India, the Bourdon UT16 Pressure Switch is well-suited for industrial, mechanical, and fluid handling systems, providing precise differential pressure monitoring and control. Explore more in our Industrial Tools & Equipment range for related hydraulic and pneumatic components and switches.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourdon UT16 Pressure Switch operates within a pressure range of 3 bar to 16 bar.
It is suitable for air, water, and oil pressure media.
This model operates at voltages of 220V and 24V AC.
The operating temperature range is from -10°C to 60°C.
The dimensions are 930 mm in height, 80 mm in width, and 46.5 mm in depth.
It features a 1/4 inch BSP female port connection.
The UT16 has an IP32 ingress protection rating.
Yes, it is designed for panel mounting applications.
It is designed for applications including boilers, water treatment, firefighting systems, and compressors.
No, it does not carry hazardous area certifications.
It includes field adjustable settings and an auto reset function for operational efficiency.
It is manufactured in India.
