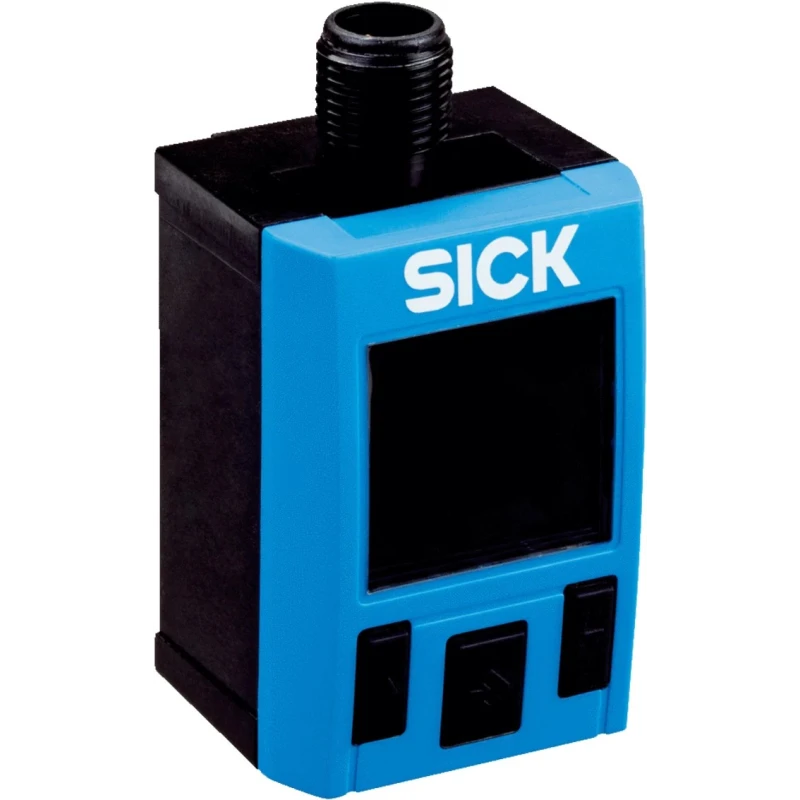

SICK Pressure Switch Gauge 0 bar to 10 bar, DIN Rail Mount, 30V DC, IP65/IP67 PAC50-DGA PAC50-DGA / 1062983

SICK PAC50-DGA Pressure Switch is a gauge pressure switch designed to measure pressures from 0 bar to 10 bar, ideal for monitoring air and non-corrosive gases in industrial pneumatic applications. This device integrates a large bi-color display that clearly indicates system pressure, output states, and switching points, enhancing operational visibility and control.

The switch provides two programmable digital switching outputs along with an optional analog output (0 to 10 V DC, 4 to 20 mA), enabling seamless integration with control systems. Its DIN rail mounting capability and rugged IP65/IP67 rated enclosure make it suitable for harsh industrial environments, protecting against dust and water ingress.

Operation is simplified through three large function keys and an intuitive menu for fast commissioning. The device supports push pull, NPN, and dual PNP switch output technologies, and operates at 30V DC with a 40mA current rating. The switch features a female port with a G connection thread standard sized at 1/4 inch for straightforward plumbing.

It is widely used in compressed-air monitoring, vacuum applications in robotics, pressure maintenance units, and leakage detection within closed air systems. With its compact size - 63mm height, 35mm width, and 35mm depth - the PAC50-DGA is easy to mount on walls, panel switches, or directly on rail systems.

Large, clear bi-color display improves process monitoring and diagnostics. Two configurable switching outputs increase application flexibility. Optional analog output supports advanced control system feedback. Waterproof IP65/IP67 design ensures reliable operation in industrial environments.

Simple user interface with three function keys accelerates setup and calibration. Suitable for industrial, manufacturing, HVAC, and pneumatic system monitoring. Compact size enables flexible installation in constrained spaces.

Certified to EN 61326-2-3 and compliant with EMC Directive 2004/108/EC.

Powerful and reliable, the SICK PAC50-DGA pressure switch offers efficient pneumatic pressure monitoring, supporting enhanced machine safety and process control. Its durable construction and advanced features make it an essential component for industrial and laboratory pneumatic applications. Explore more products in our Pressure Switch category for compatible devices and accessories.
